DS1 Facilities

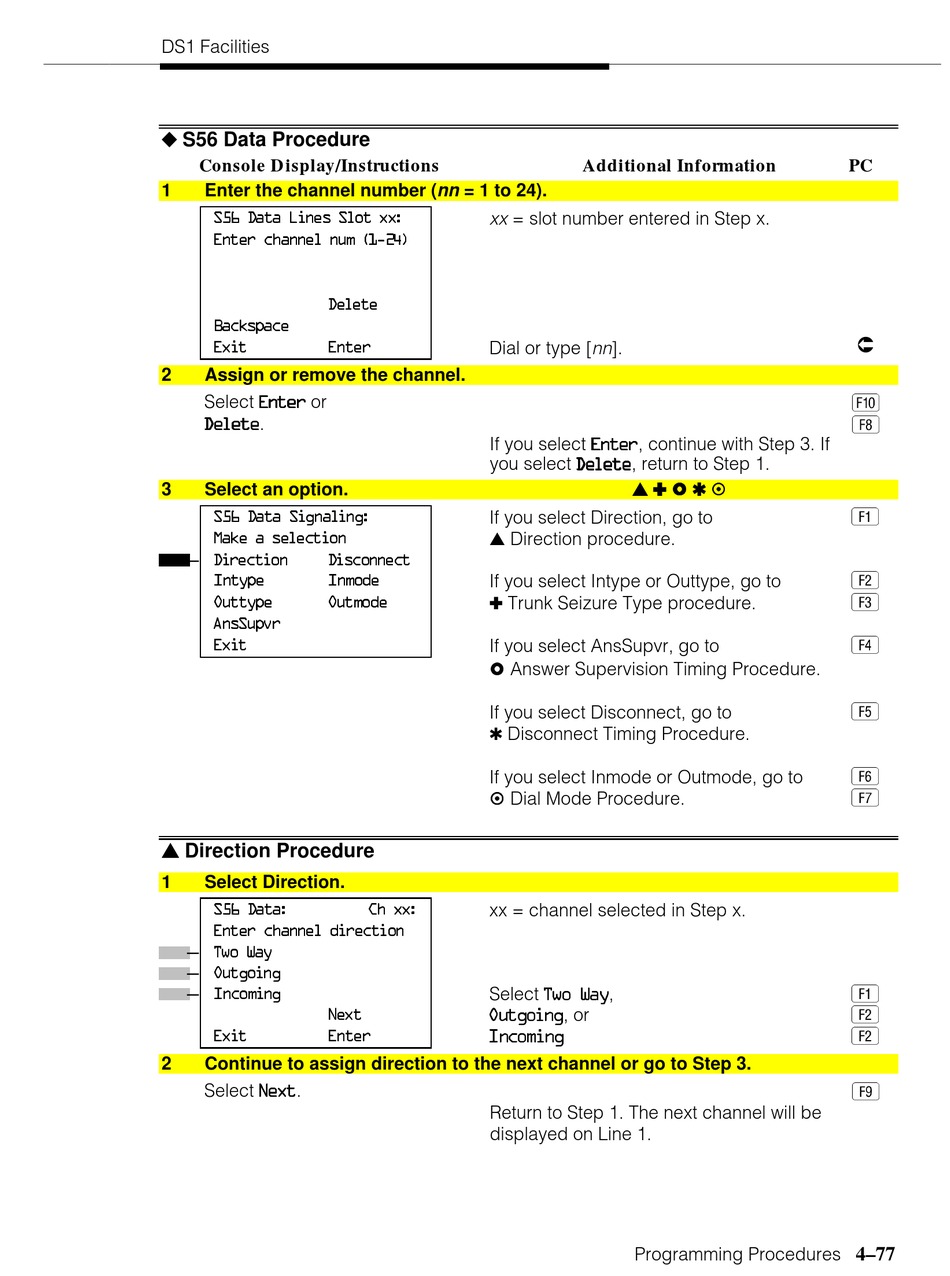

S56 Data Procedure
Console Display/Instructions
1 Enter the channel number ( nn = 1 to 24).
2 Assign or remove the channel.
Select or
.
3 Select an option.
_
Direction Procedure
1 Select Direction.
_
_
_
2 Continue to assign direction to the next channel or go to Step 3.
Select .
Additional Information
xx = slot number entered in Step x.
Dial or type [ nn ].
If you select , continue with Step 3. If
you select , return to Step 1.
If you select Direction, go to
Direction procedure.
If you select Intype or Outtype, go to
Trunk Seizure Type procedure.
If you select AnsSupvr, go to
£
Answer Supervision Timing Procedure.
If you select Disconnect, go to
Disconnect Timing Procedure.
If you select Inmode or Outmode, go to
¤ ¤
Dial Mode Procedure.
xx = channel selected in Step x.
Select ,
, or
Return to Step 1. The next channel will be
displayed on Line 1.
Programming Procedures
PC
£ £ ¤
4–77
