DS1 Facilities

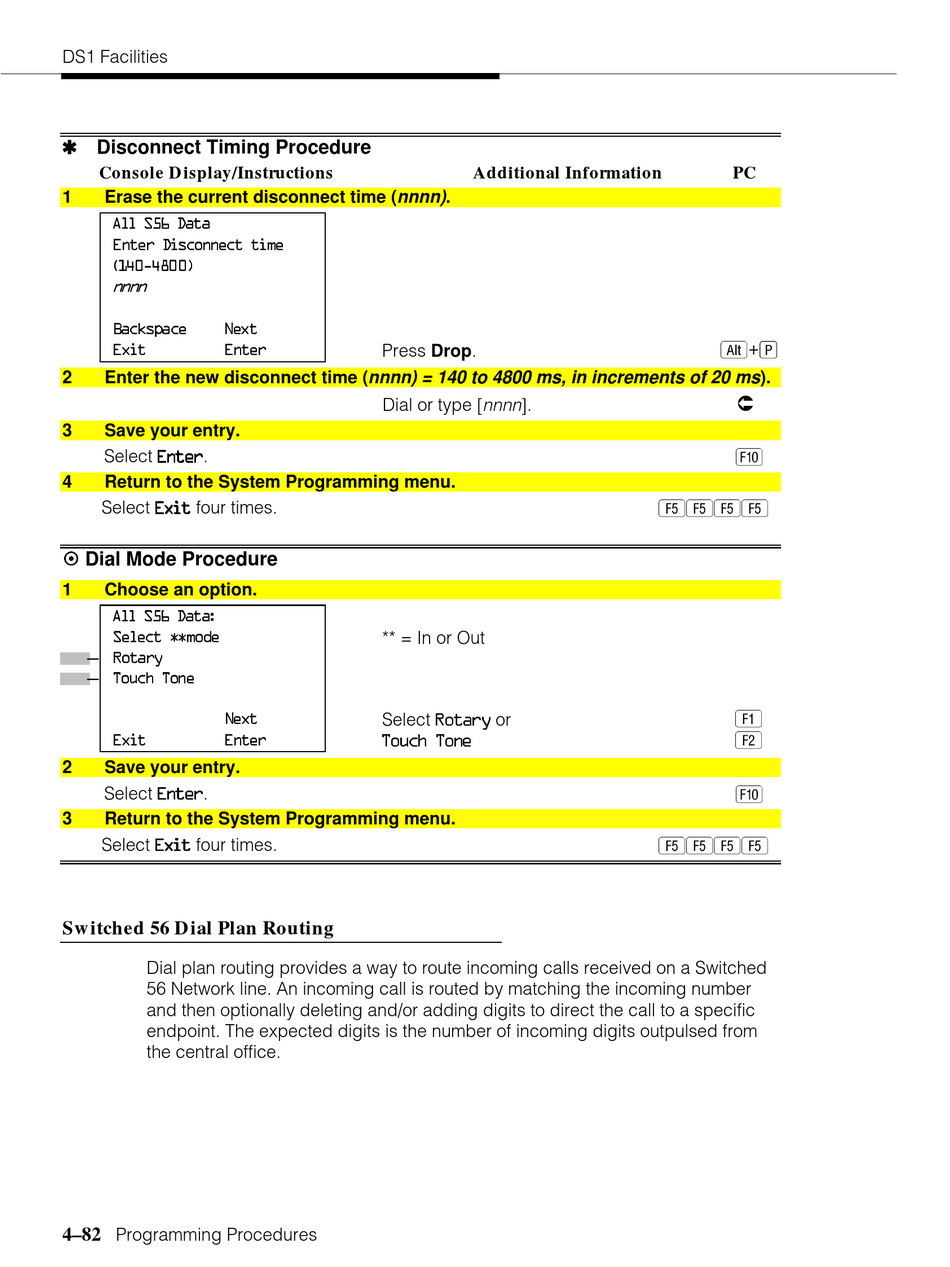

Disconnect Timing Procedure
Console Display/Instructions
1 Erase the current disconnect time ( nnnn) .
nnnn
2 Enter the new disconnect time ( nnnn) = 140 to 4800 ms, in increments of 20 ms ).
3 Save your entry.
Select .
4 Return to the System Programming menu.
Select four times.
¤
Dial Mode Procedure
1 Choose an option.
_
_
2 Save your entry.
Select .
3 Return to the System Programming menu.
Select
four times.
Switched 56 Dial Plan Routing
Dial plan routing provides a way to route incoming calls received on a Switched
56 Network line. An incoming call is routed by matching the incoming number
and then optionally deleting and/or adding digits to direct the call to a specific
endpoint. The expected digits is the number of incoming digits outpulsed from
the central office.
4–82
Programming Procedures
Additional Information
Press Drop.
Dial or type [ nnnn ].
** = In or Out
Select or
