Terminal Settings; To Set Up The Connection Mode - COBHAM Satcom EXPLORER 540 User & Integrator's Manual

• Cellular session totals (only present if an EXPLORER 540 Cellular Modem is used)
shows totals for each cellular data connection since the log was last cleared.
To reset the Total counters, click the Reset total counters button at the top.

4.8 Terminal settings

To configure the terminal settings, select

4.8.1 To set up the connection mode

Select WAN network (Mode)
The EXPLORER 540 can use a cellular network as an alternative to the BGAN network,
if you have installed an EXPLORER 540 Cellular Modem or an external cellular modem.
For details, see Optional: To set up cellular network for data (dual mode) on page 4-49.
98-148232-K Chapter 4: Configuration with web interface

(Control panel) > Terminal settings.

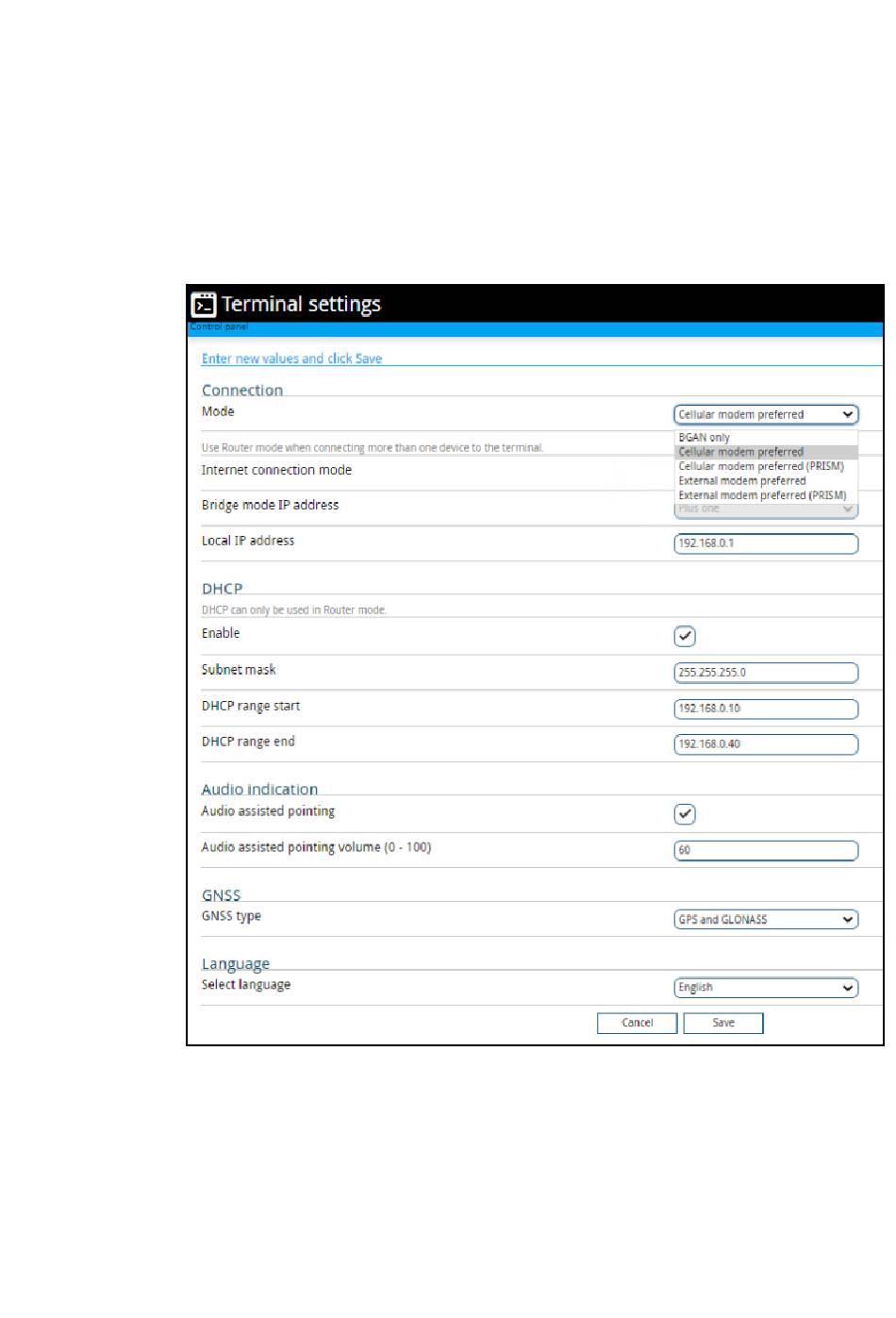

Terminal settings
4-15
