2.9.4 I/O pins
The EXPLORER 540 has 3 I/O pins: two assigned pins and 1 general purpose pin.
• 1-GPI: Power control pin (input)
Controls whether the terminal should go into power save mode or stay on.
Configurable in web interface (active high/low)
See Power control on page 3-19 and Remote on/off mode on page 4-44.
• 2-GPO: Terminal ready (output)
Signals when the terminal is powered on and logged onto the BGAN network.
Configurable in web interface (active high/low).
See Terminal ready signaling with 2-GPO on page 3-28.
• 3-GPIO: General purpose input/output
Configurable in web interface. Using an AT command, you can activate this pin
(when configured as output) or get the status of this pin (when configured as input).
See Control or status with 3-GPIO on page 3-29.
For details, see also:
• Configuration with web interface: GPIO pins on page 4-45.
• Pinout and specifications: I/O connector (X5) on page A-5.
Solar panel
Probe
98-148232-K
Internet
DC power
Battery
LAN
injector
M2M
equipment
Chapter 2: To get started

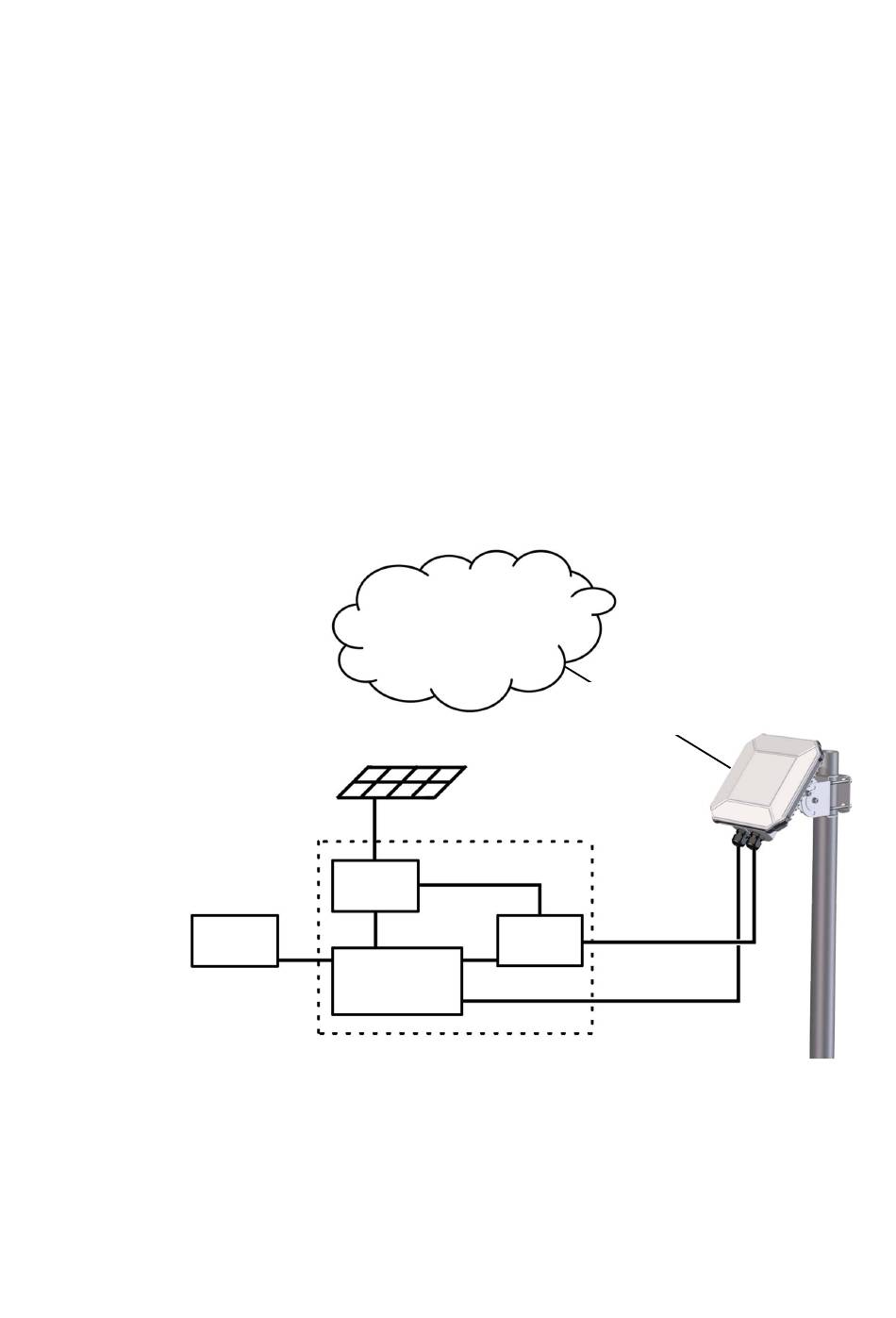

M2M application examples
BGAN M2M service
via satellite
LAN w. PoE
PoE
I/O
.
