4.13.13 Power control
There are a number of options to save power in the EXPLORER 540. For a general
description of the power save options, see Power control on page 3-19.
To set up the power save options, do as follows:

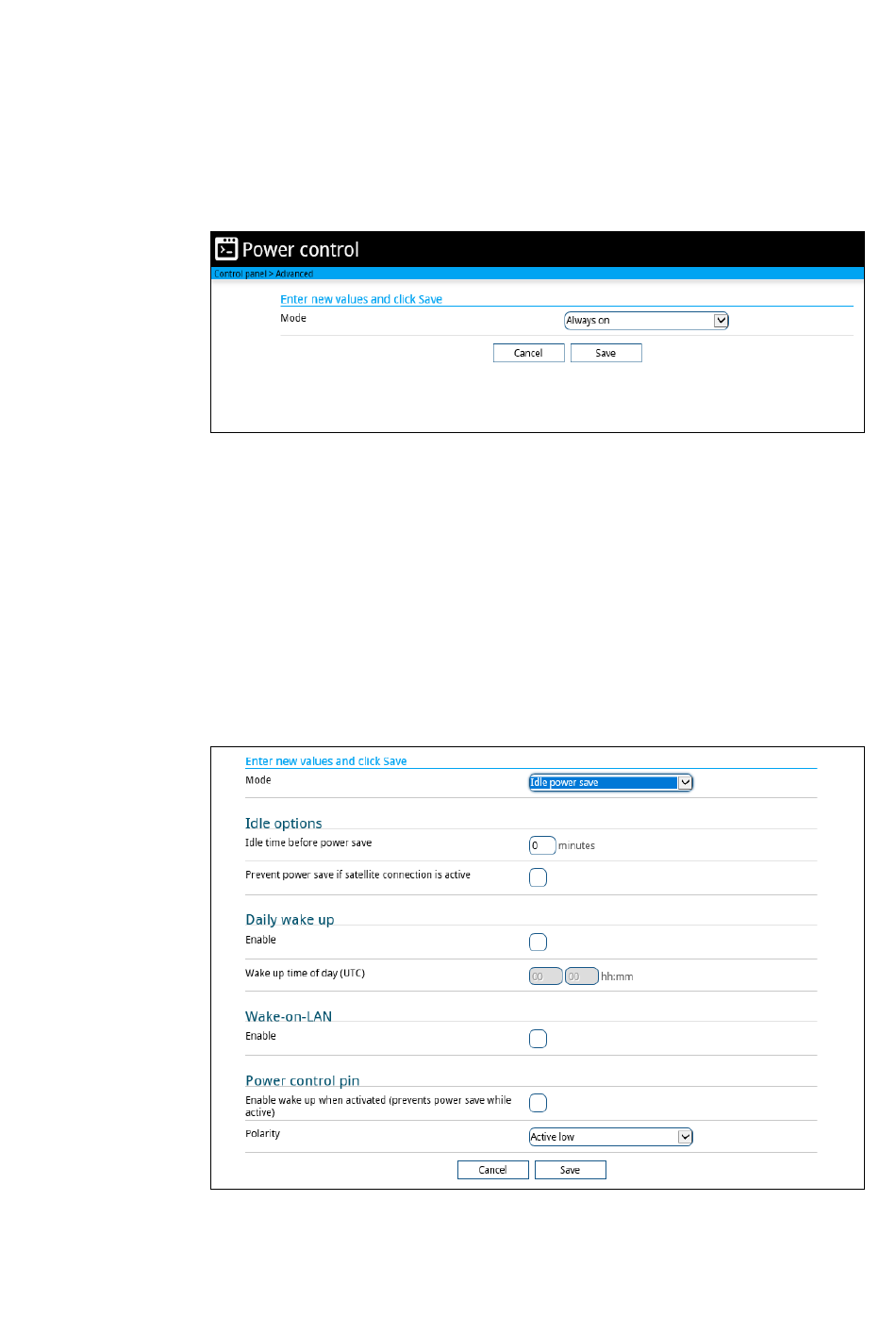

1. Under Advanced, select Power control.
2. Select the mode you want to use.
• Always on. This is the default setting. The terminal will never go into power save
state but will always be on when connected to power.
• Idle power save. The terminal will go into power save state after a (configured)
period with no activity. For details, see the next section Idle power save mode.
• Remote on/off. The terminal will go into power save state when the Power
control pin (Remote on/off signal) is inactive. For details, see Remote on/off mode
on page 4-44.
3. Click Save.
Idle power save mode
1. In the Power control page, select Idle power save from the drop-down list.
