A.2 Interfaces specifications
A.2.1 LAN interface (X1 or X2)

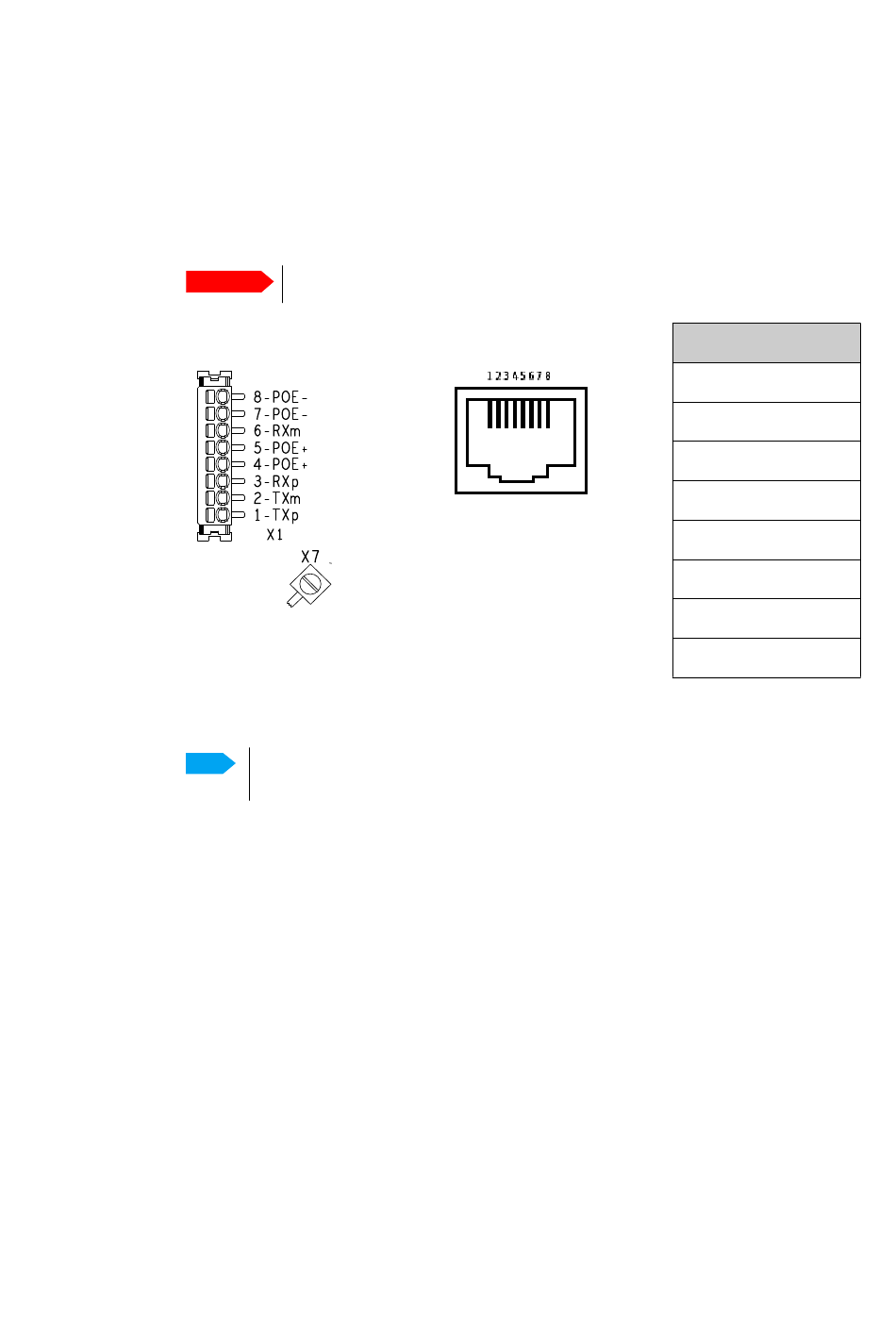

Connector pin-out
Important
X1: Terminal block
and X7 (GND)
and
a. The LAN interface accepts mode A (power and data together) and mode B (power and data
separately).
Note
To insert the wires in X1 use a screwdriver (max. 2mm/ 0.08" wide) to push each
terminal open.
98-148232-K
There are two LAN connectors, but only one at a time can be used!
or
If you connect to the terminal block X1 you must connect the shield of the
cable to the screw terminal X7 (GND).
Appendix A: Technical specifications
X2: RJ-45 connector
Female (receptacle)

Interfaces specifications

a
Pin Function
1 TXp (PoE+)
2 TXm (PoE+)
3 RXp (PoE-)
4 PoE+
5 PoE+
6 RXm (PoE-)
7 PoE-
8 PoE-
