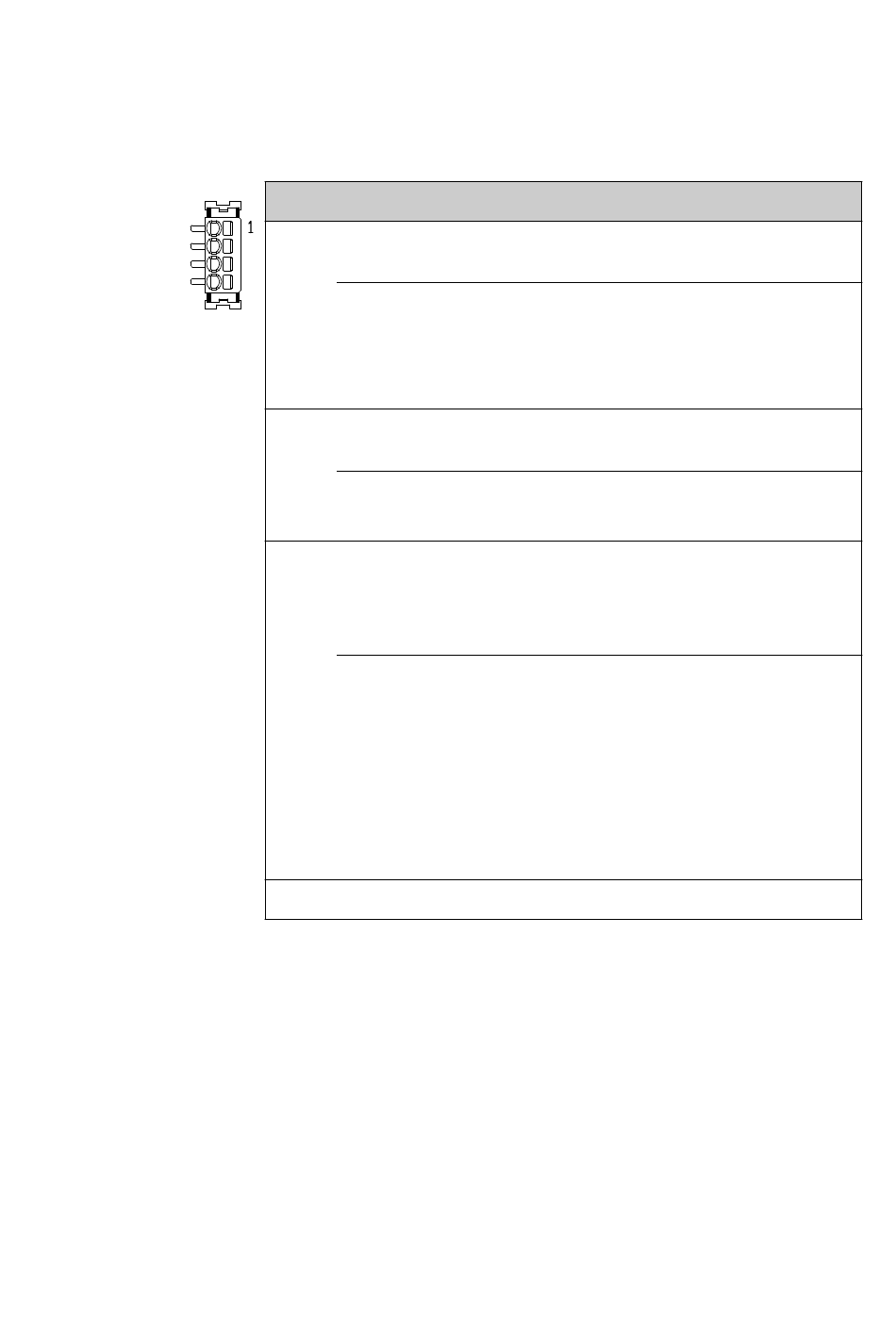

A.2.3 I/O connector (X5)
Connector pin-out and specifications
To insert the wires in X5 use a screwdriver (max. 2mm/ 0.08" wide) to push each
terminal open.
For configuration of the I/O pins, see Power control on page 4-42.
98-148232-K
Pin Function
1-GPI Power control input
Voltage
2-GPO Terminal ready
output
Max current
Voltage
3-GPIO General purpose
input/output (GPIO)
Input voltage
Output max current
Output Voltage
4-GND GND
Appendix A: Technical specifications
Interfaces specifications
Specifications
Active high or low configurable in web
interface.
Min 0 VDC, Max 32 VDC
Levels:
• Low: 0 - 0.8 VDC
• High: 2.8 - 32 VDC
Active high or low configurable in web
interface.
400 mA, Open collector
0 to 32 VDC
Input or output configurable in web
interface.
Active high or low configurable in web
interface.
Min 0 VDC, Max 32 VDC
Levels:
• Low: 0 - 0.8 VDC
• High: 2.8 - 32 VDC
400 mA, Open collector
0 to 32 VDC
N/A
