2.9.3 PoE injector

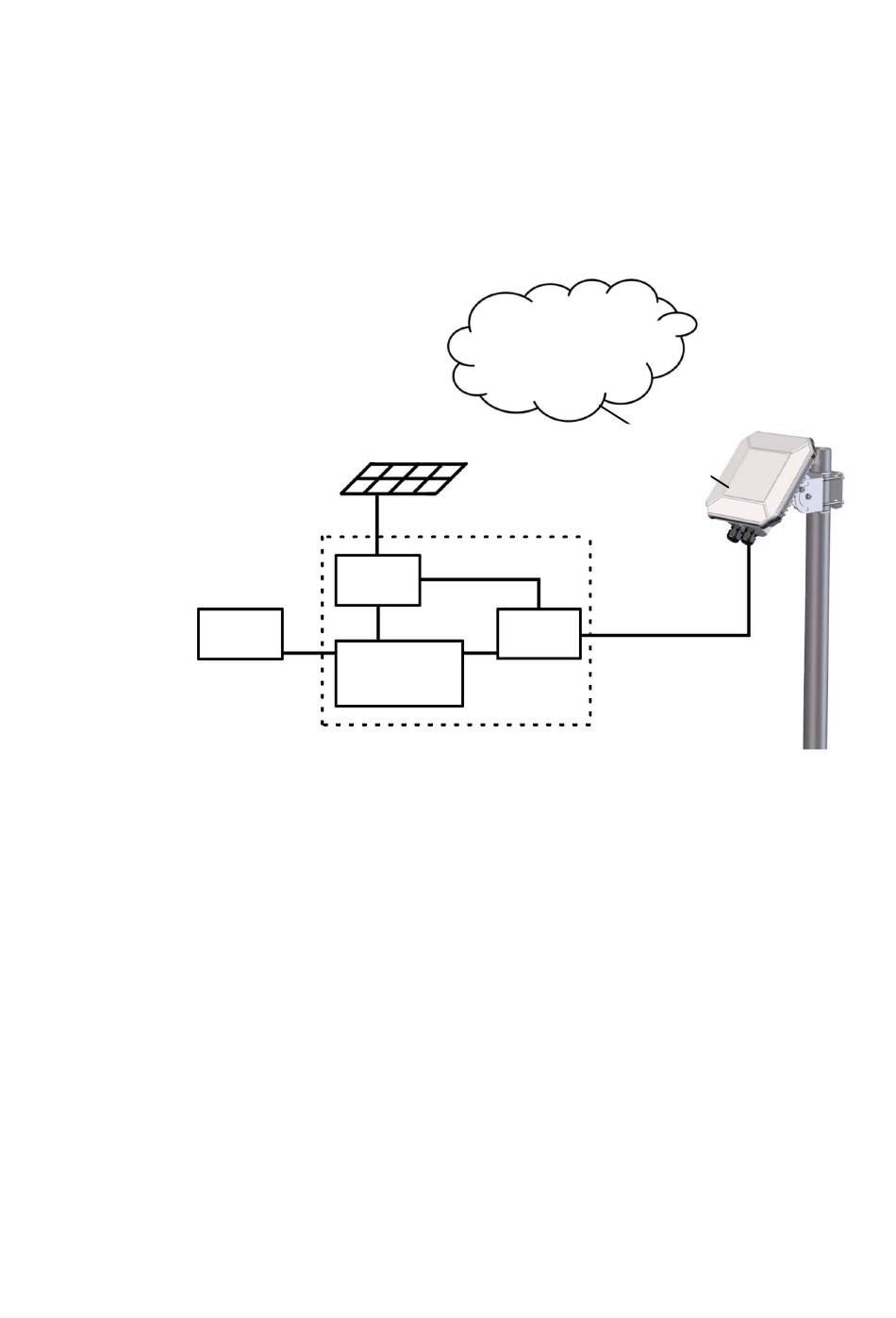

The picture below shows an example of an M2M application using a PoE injector to
provide the power to the EXPLORER 540 through the LAN interface. Note that the PoE
injector must comply with the requirements for PoE+ IEEE 802.3at type 2 class 4. The
PoE injector is connected to a power supply and "adds" power to the LAN connection
for the EXPLORER 540. For specifications and pinout for the LAN interface on the
EXPLORER 540, see LAN interface (X1 or X2) on page A-2.
Probe
98-148232-K
Solar panel
Battery
M2M
equipment
Chapter 2: To get started
Internet
BGAN M2M service
via satellite
DC power
PoE
injector
LAN
M2M application examples
LAN w. PoE
