UDS 2440

Ven-Tel 2400 Plus II

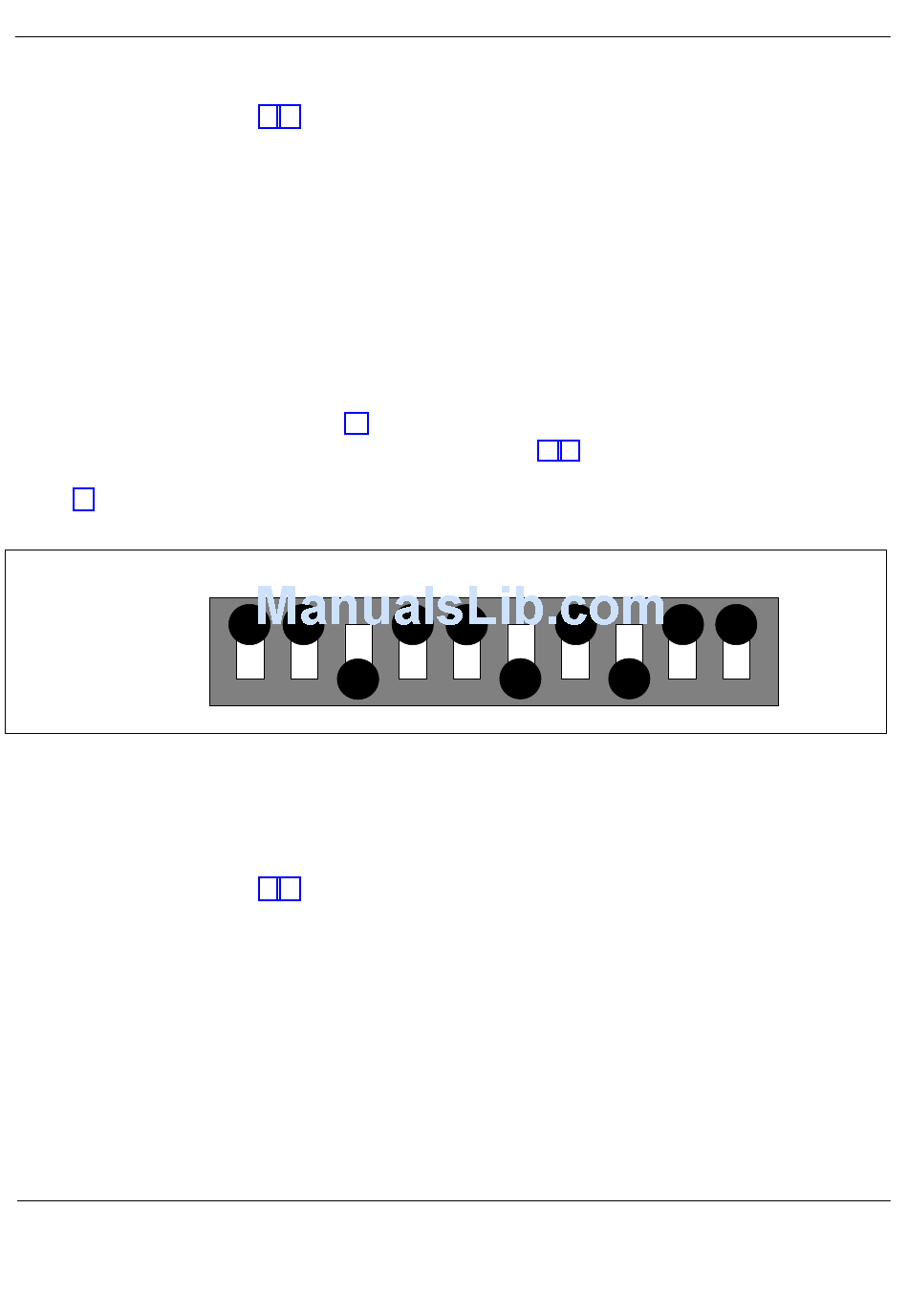

Figure 4-28
Remote supervisor login modem—Ven-Tel 2400 Plus II modem's switch settings
OFF
ON

Ven-Tel 9600 Plus

Racal VI2422PA

Figure 4-14 shows the front and rear view of the UDS 2440 dial-up
supervisor modem. This modem connects to the AM's multiport cable
using an NT7D99AA cable.
No internal switch settings are required to configure the UDS 2440 modem
for remote supervisor login. Refer to the "Dial-up supervisor modem"
section, "UDS 2440" subsection for more information.
To properly set up the Ven-Tel 2400 Plus II modem for use as a remote
supervisor login modem, ensure the modem's switch settings match those
shown in Figure 4-28. The same switch settings should be used at both the
remote end and the MAX end. Figure 4-20 shows the switch locations.
1
2
3
To properly set up the Ven-Tel 9600 Plus modem for use as remote
supervisor login, ensure that the switch settings match those shown in
Figure 4-26.
No internal switch settings are required to configure the Racal VI2422PA
modem for remote supervisor login. Refer to the "Dial-up supervisor
modem" section, "Racal VI2422PA" subsection for more information.
Network Administration Center (NAC) Installation Guide Product release 2
4
5
6
7
Peripheral devices
8
9
10
4-77
