Figure 4-14

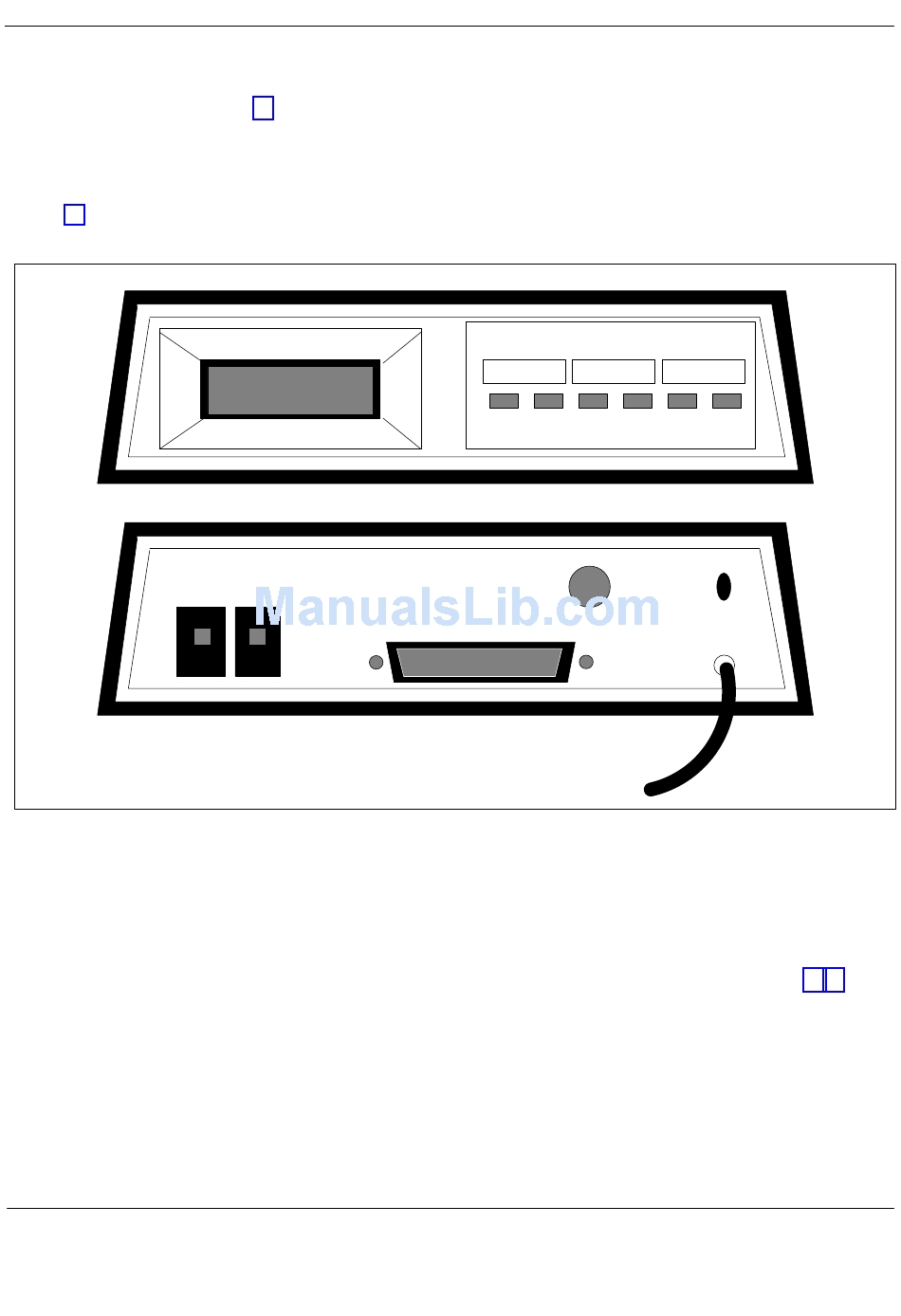

Remote diagnostic modem—UDS 2440—front and rear view
Figure 4-14 shows the front and rear view of the UDS 2440 Remote
Diagnostic modem. This modem connects to the AM's I/O panel using an
NT7D61Ax cable.
WARNING – FOR CONTINUED
PROTECTION AGAINST FIRE
HAZARD, REPLACE WITH
TELSET TELCO
SAME TYPE & RATING OF FUSE
The UDS 2440 modem does not contain any internal switch settings. The
configuration is done via the front panel buttons on the modem.
If you want to configure the UDS 2440 modem for remote diagnostic
support using the modem's front panel buttons, perform Procedure 4-5.
