Table 197. Fsmc_Bcrx Bit Fields; Figure 416. Synchronous Multiplexed Write Mode - Psram (Cram) - ST STM32F207 Series Reference Manual

Flexible static memory controller (FSMC)
HCLK
CLK
A[25:16]
NEx
Hi-Z
NOE
NWE
NADV
NWAIT
(WAITCFG = 0)
A/D[15:0]
1 clock 1 clock
1. Memory must issue NWAIT signal one cycle in advance, accordingly WAITCFG must be programmed to 0.
2. NWAIT polarity is set to 0.
3. Byte Lane (NBL) outputs are not shown, they are held low while NEx is active.
Bit No.
31-20
19
18-16
15
14
13
12
11
10
1292/1381

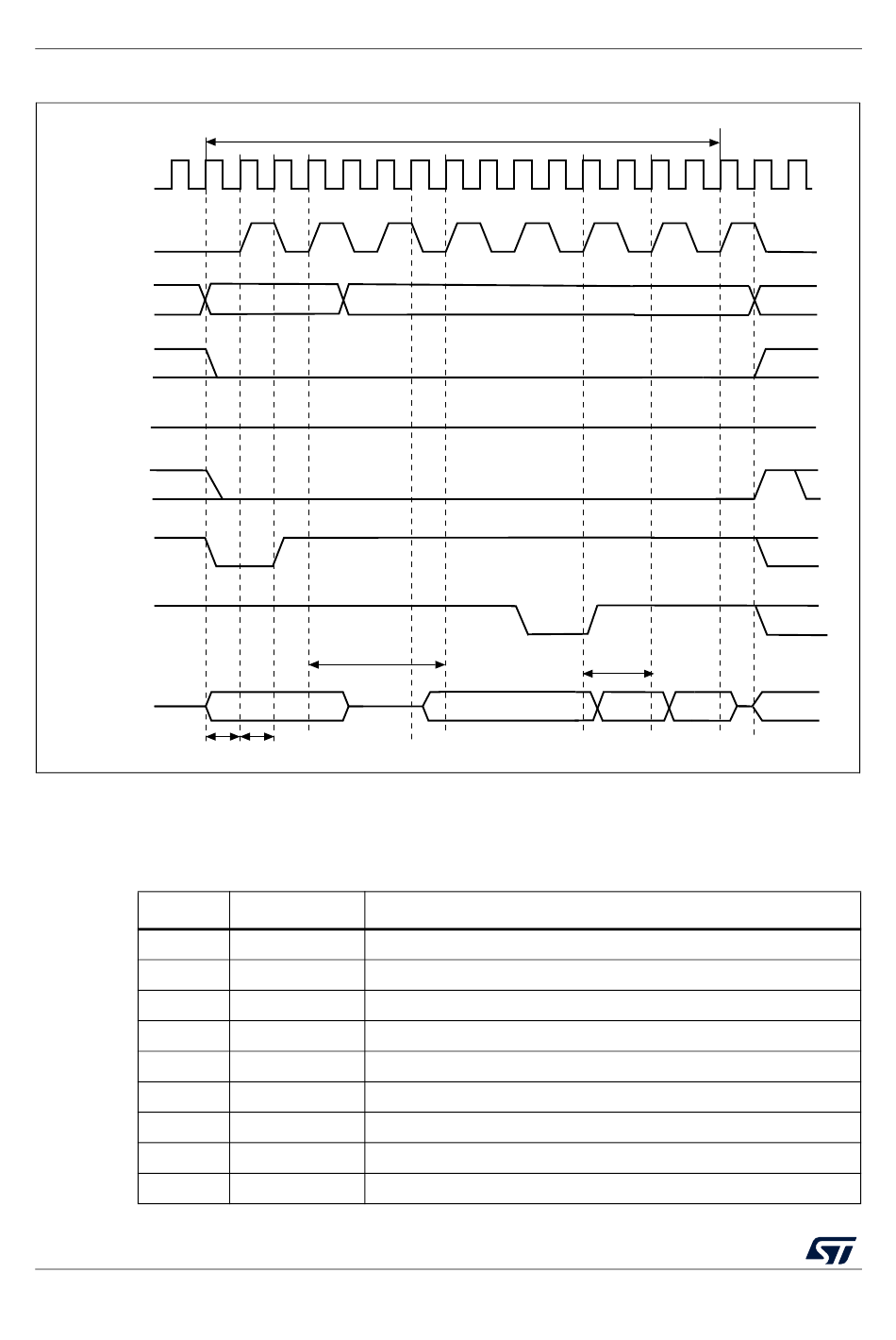

Figure 416. Synchronous multiplexed write mode - PSRAM (CRAM)

Memory transaction = burst of 2 half words
addr[25:16]
(DATLAT + 2)
CLK cycles
Addr[15:0]

Table 197. FSMC_BCRx bit fields

Bit name
Reserved 0x000
CBURSTRW 0x1
CPSIZE As needed (0x1 for CRAM 1.5)
ASCYCWAIT 0x0
EXTMOD 0x0
WAITEN Set to 1 if the memory supports this feature, otherwise keep at 0.
WREN 0x1
WAITCFG 0x0
WRAPMOD 0x0
data
