Debug support (DBG)

This section applies to the whole STM32F20x and STM32F21x family, unless otherwise

The STM32F20x and STM32F21x are built around a Cortex

hardware extensions for advanced debugging features. The debug extensions allow the

core to be stopped either on a given instruction fetch (breakpoint) or data access

(watchpoint). When stopped, the core's internal state and the system's external state may

be examined. Once examination is complete, the core and the system may be restored and

program execution resumed.

The debug features are used by the debugger host when connecting to and debugging the

STM32F20x and STM32F21x MCUs.

Two interfaces for debug are available:

JTAG debug port

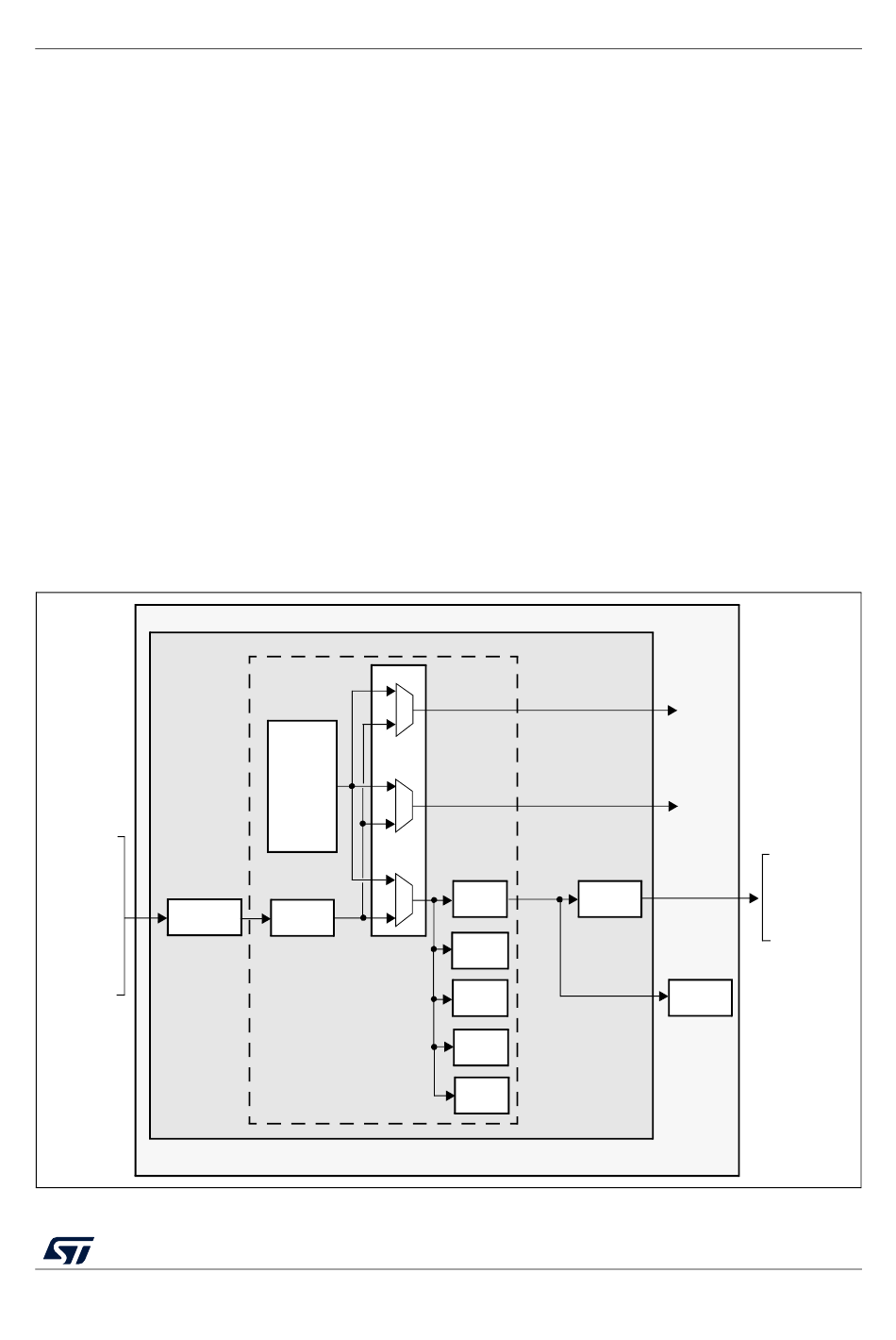

Figure 419. Block diagram of STM32 MCU and Cortex

STM32F20x/STM32F21x debug support

Cortex-M3 debug support

Internal private

peripheral bus (PPB)

RM0033 Rev 9

-M3 core which contains

-M3-level debug support

External private

peripheral bus (PPB)

Debug support (DBG)
