Hand
2 2
on

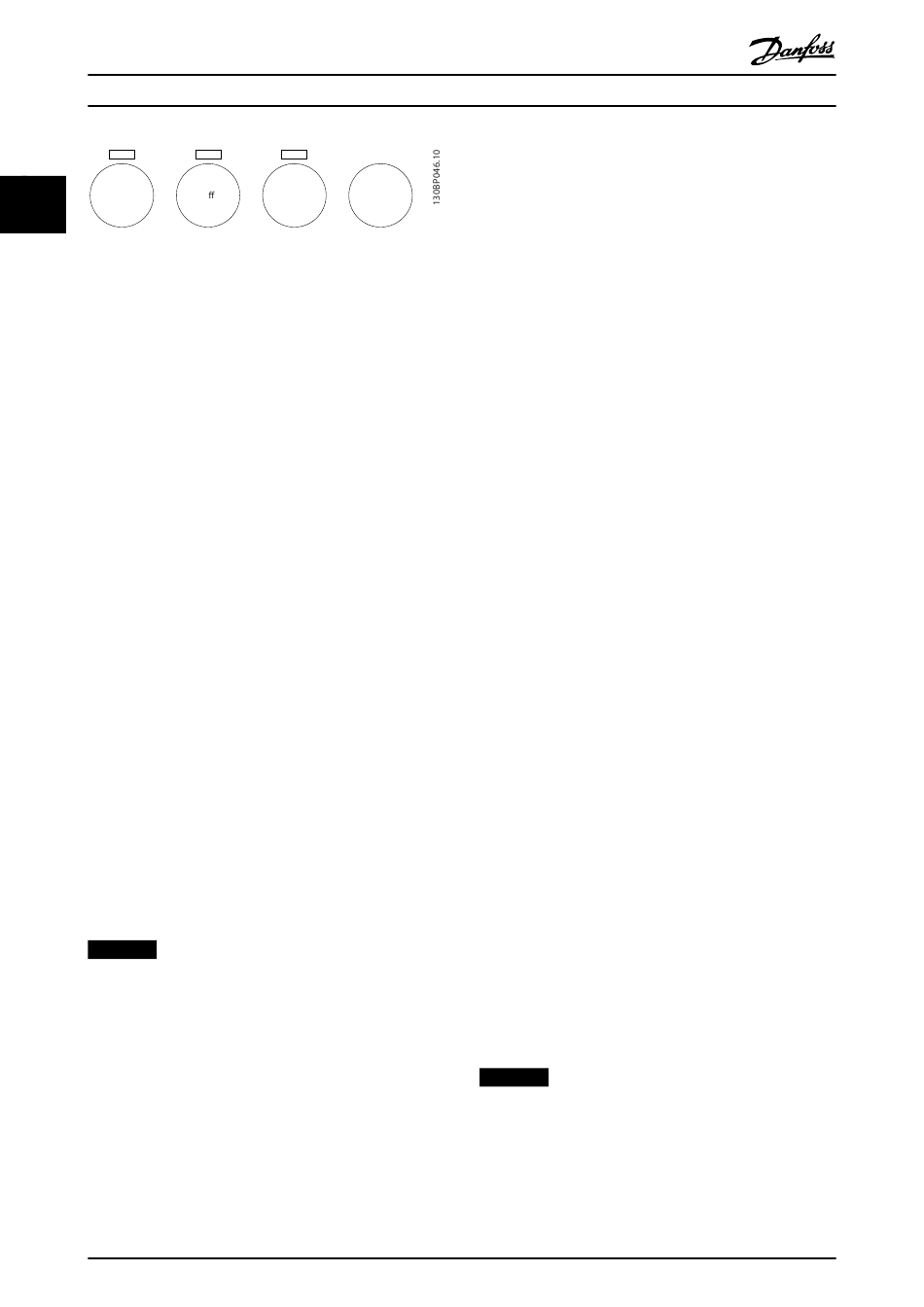

Illustration 2.25 LCP Keys
[Hand On]
enables control of the frequency converter via the LCP.
[Hand On] also starts the motor and it is now possible to
enter the motor speed data with the arrow keys. The key
can be selected as [1] Enable or [0] Disable via
parameter 0-40 [Hand on] Key on LCP.
External stop signals activated with control signals or a
serial bus overrides a 'start' command via the LCP.
The following control signals are still active when [Hand
On] is activated:
•
[Hand On] - [Off] - [Auto On]
•
Reset
•
Coasting stop inverse
•
Reversing
•
Set-up select lsb - Set-up select msb
•
Stop command from serial communication
•
Quick stop
•
DC brake
[Off]
stops the connected motor. The key can be selected as [1]
Enable or [0] Disable via 0-41 [Off] Key on LCP.
If no external stop function is selected and the [Off] key is
inactive the motor can be stopped by disconnecting the
voltage.
[Auto On]
enables control of the frequency converter via the control
terminals and/or serial communication. When a start signal
is applied on the control terminals and/or the bus, the
frequency converter starts. The key can be selected as [1]
Enable or [0] Disable via 0-42 [Auto on] Key on LCP.
NOTICE
An active HAND-OFF-AUTO signal via the digital inputs
has higher priority than the control keys [Hand On]
[Auto On].
[Reset]
is used for resetting the frequency converter after an alarm
(trip). It can be selected as [1] Enable or [0] Disable via
0-43 [Reset] Key on LCP.

2.4 Initialisation to Default Settings

Initialise the frequency converter to default settings in 2
ways.
24
Programming Guide
Auto
O Reset
on
Danfoss A/S © Rev. 2014-01-21 All rights reserved.
Recommended initialisation (via 14-22 Operation Mode)
1. Select parameter 14-22 Operation Mode
2. Press [OK]
3. Select [2] Initialisation
4. Press [OK]
5. Disconnect the mains supply and wait until the
display turns off.
6. Reconnect the mains supply - the frequency
converter is now reset.
Parameter 14-22 Operation Mode initialises all except:
•
14-50 RFI Filter
•
Parameter 8-30 Protocol
•
Parameter 8-31 Address
•
8-32 Baud Rate
•
8-35 Minimum Response Delay
•
8-36 Max Response Delay
•
8-37 Maximum Inter-Char Delay
•
Parameter 15-00 Operating hours to
parameter 15-05 Over Volt's
•
Parameter 15-20 Historic Log: Event to
parameter 15-22 Historic Log: Time
•
15-30 Alarm Log: Error Code to
parameter 15-32 Alarm Log: Time
Manual initialisation
1. Disconnect from mains and wait until the display
turns off.
2. 2a Press [Status] - [Main Menu] - [OK] at
the same time while power up for LCP
102, Graphical Display
2b Press [Menu] - [OK] while power up for
LCP 101, Numerical Display
3. Release the keys after 5 s.
4. The frequency converter is now programmed
according to default settings.
This procedure initialises all except:
Parameter 15-00 Operating hours
Parameter 15-03 Power Up's
Parameter 15-04 Over Temp's
Parameter 15-05 Over Volt's
NOTICE
A manual initialisation also resets serial communication,
RFI filter settings (14-50 RFI Filter) and fault log settings.
