How to Programme

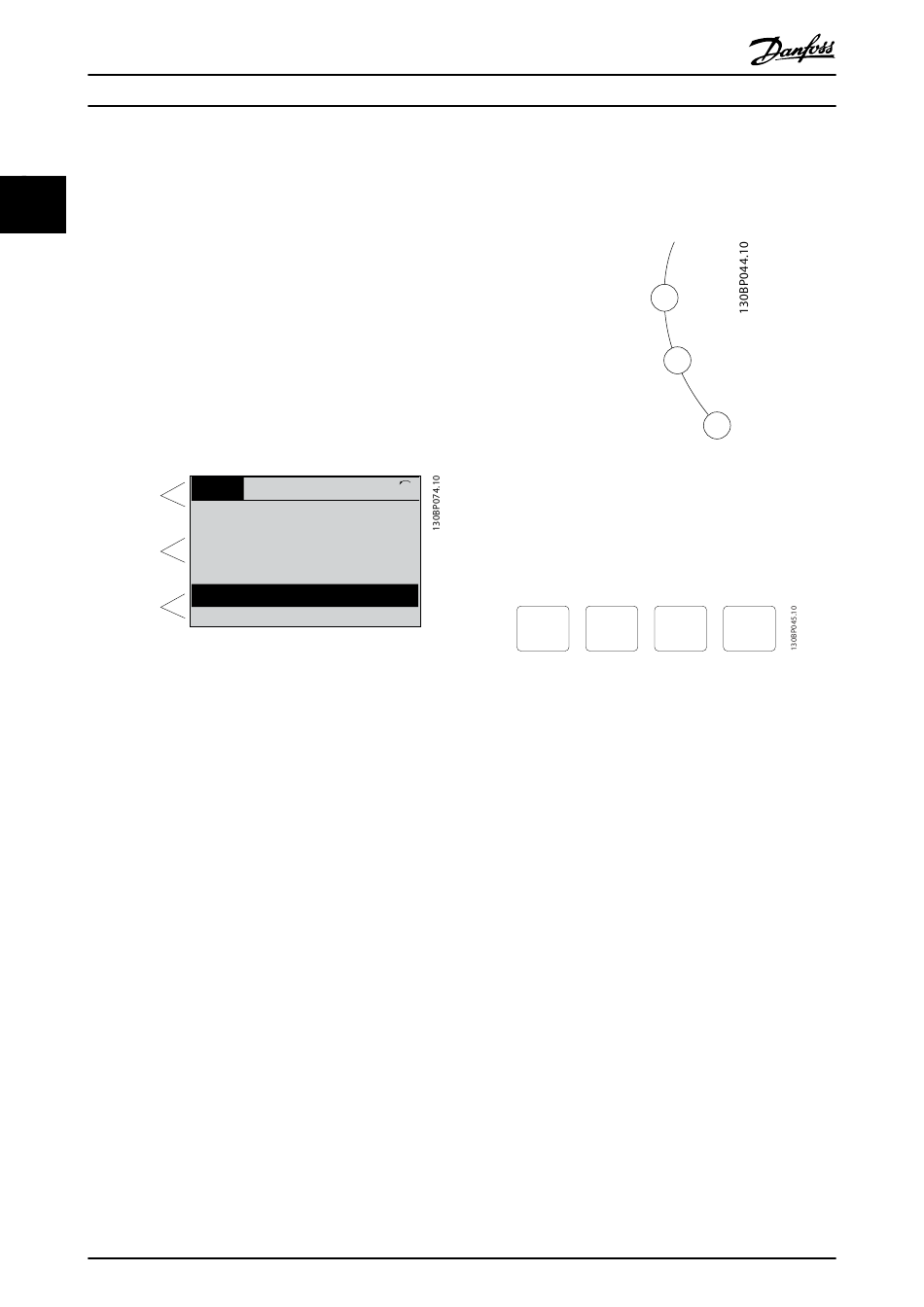

2.2.1 The LCP Display

2 2
The LCP display has backlight and a total of 6 alpha-
numeric lines. The display lines show the direction of
rotation (arrow), the selected set-up as well as the
programming set-up. The display is divided into 3 sections.
Top section
shows up to 2 measurements in normal operating status.
Middle section
The top line shows up to 5 measurements with related
unit, regardless of status (except in the case of alarm/
warning).
Bottom section
always shows the state of the frequency converter in
Status mode.
Top section
Middle section
Bottom section
Illustration 2.2 Bottom Section
The active set-up (selected as the active set-up in
0-10 Active Set-up) is shown. When programming another
set-up than the active set-up, the number of the
programmed set-up appears to the right.
Display Contrast Adjustment
Press [Status] and [
Press [Status] and [
Most parameter set-ups can be changed immediately via
the LCP, unless a password has been created via
parameter 0-60 Main Menu Password or via 0-65 Personal
Menu Password.
Indicator lights (LEDs)
If certain threshold values are exceeded, the alarm and/or
warning LED lights up. A status and alarm text appear on
the LCP.
The ON LED is activated when the frequency converter
receives mains voltage or via a DC bus terminal or 24 V
external supply. At the same time, the backlight is on.
14
Programming Guide
Status
43 RPM 5.44 A 25.3kW
1.4 Hz
2.9%
! Pwr.card temp (W29)
Auto Remote Running
▲
] for darker display
▼
] for brighter display
Danfoss A/S © Rev. 2014-01-21 All rights reserved.
•
Green LED/On: Control section is working.
•
Yellow LED/Warn.: Indicates a warning.
•
Flashing Red LED/Alarm: Indicates an alarm.
Illustration 2.3 Indicator lights (LEDs)
! 1(1)
LCP Keys
The control keys are divided into functions. The keys
below the display and indicator lamps are used for
parameter Set-up, including choice of display indication
during normal operation.
Status
Illustration 2.4 LCP Keys
[Status]
indicates the status of the frequency converter and/or the
motor. Select between 3 different readouts by pressing
[Status]: 5 line readouts, 4 line readouts or Smart Logic
Control.
Press [Status] for selecting the mode of display or for
changing back to Display mode from either the Quick
Menu mode, the Main Menu mode or Alarm mode. Also
use [Status] to toggle single or double readout mode.
[Quick Menu]
Provides quick access to the most common functions of
the frequency converter.
The [Quick Menu] consists of:
•
Q1: My Personal Menu
•
Q2: Quick Setup
•
Q3: Function Setups
•
Q5: Changes Made
•
Q6: Loggings
The function set-up provides quick access to all parameters
required for the majority of water and wastewater
applications including variable torque, constant torque,
pumps, dosing pumps, well pumps, booster pumps, mixer
pumps, aeration blowers and other pump and fan
applications. Amongst other features it also includes
On
Warn.
Alarm
Quick Main Alarm
Menu Menu Log
MG20O702
