Parameter Description
3.2.4 0-3* LCP Custom Readout
It is possible to customise the display elements for various
purposes: *Custom Readout. Value proportional to speed
(Linear, squared or cubed depending on unit selected in
parameter 0-30 Custom Readout Unit) *Display Text. Text
string stored in a parameter.
Custom readout
The calculated value to be displayed is based on settings
in
•
parameter 0-30 Custom Readout Unit
•
parameter 0-31 Custom Readout Min Value (linear
only)
•
parameter 0-32 Custom Readout Max Value
•
parameter 4-13 Motor Speed High Limit [RPM]
•
parameter 4-14 Motor Speed High Limit [Hz]
•
and actual speed
Custom Readout (Value)
P 16-09
Custom Readout
Unit P 0-30
Max value
P 0-32
Min value
Linear
units only
P 0-31
0

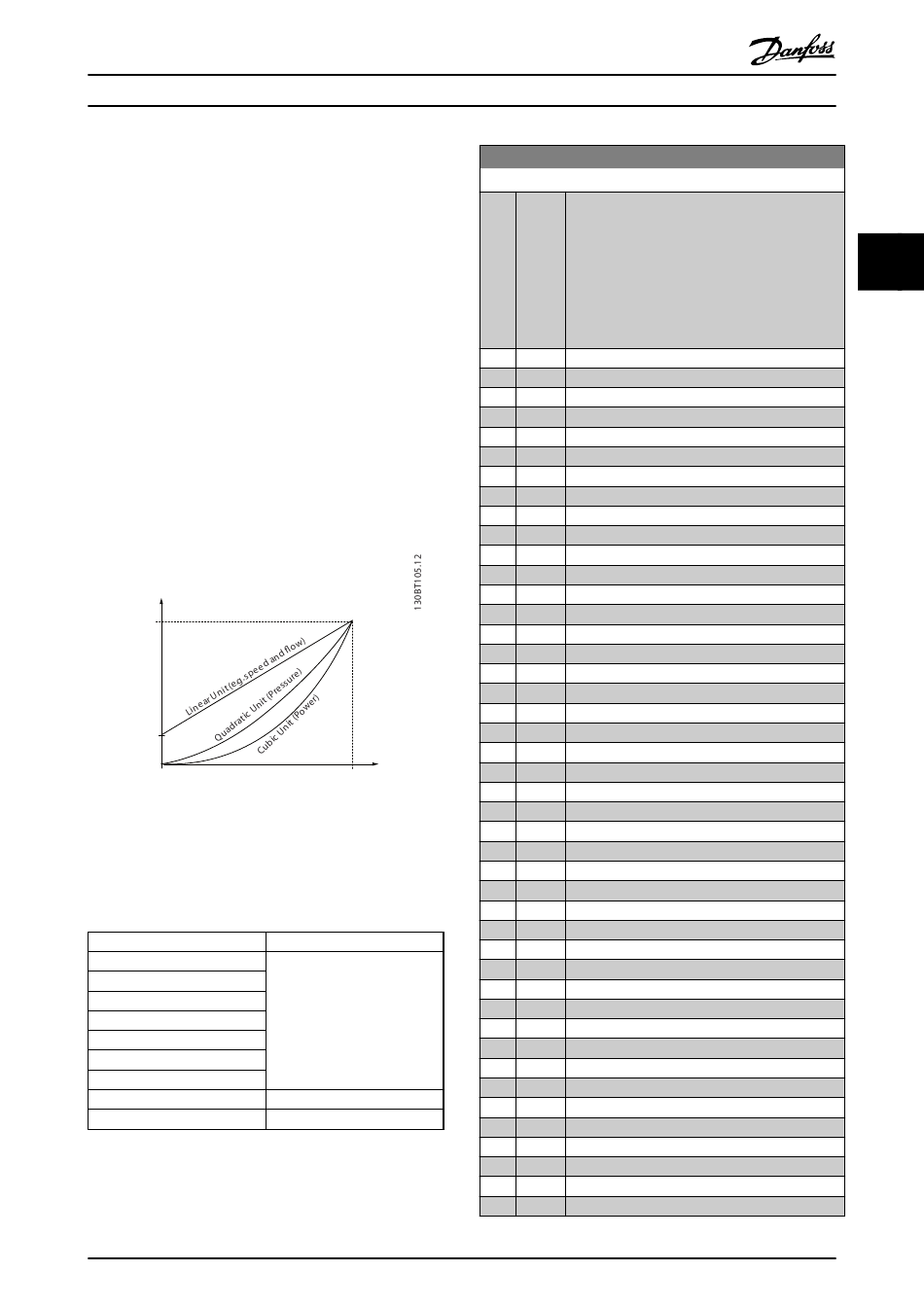

Illustration 3.3 Custom Readout
The relation depends on the type of unit selected in
parameter 0-30 Custom Readout Unit:
Unit Type
Dimensionless
Speed
Flow, volume
Flow, mass
Velocity
Length
Temperature
Pressure
Power
Table 3.4 Speed Relations for Different Unit Types
MG20O702
Programming Guide
Motor Speed
Motor Speed
High limit
P 4-13 (RPM)
P 4-14 (Hz)
Speed Relation
Linear
Quadratic
Cubic
Danfoss A/S © Rev. 2014-01-21 All rights reserved.
0-30 Custom Readout Unit
Option: Function:
Program a value to be shown in the display of
the LCP. The value has a linear, squared or cubed
relation to speed. This relation depends on the
unit selected (see Table 3.4). The actual calculated
value can be read in parameter 16-09 Custom
Readout, and/or shown in the display be selecting
[1609 Custom Readout] in 0-20 Display Line 1.1
Small to 0-24 Display Line 3 Large.
[0] -
[1] %
[5] PPM
[10] 1/min
[11] RPM
[12] Pulse/s
[20] l/s
[21] l/min
[22] l/h
[23] m³/s
[24] m³/min
[25] m³/h
[30] kg/s
[31] kg/min
[32] kg/h
[33] t/min
[34] t/h
[40] m/s
[41] m/min
[45] m
[60] °C
[70] mbar
[71] bar
[72] Pa
[73] kPa
[74] m WG
[75] mm Hg
[80] kW
[120] GPM
[121] gal/s
[122] gal/min
[123] gal/h
[124] CFM
[125] ft³/s
[126] ft³/min
[127] ft³/h
[130] lb/s
[131] lb/min
[132] lb/h
[140] ft/s
[141] ft/min
[145] ft
[160] °F
[170] psi
