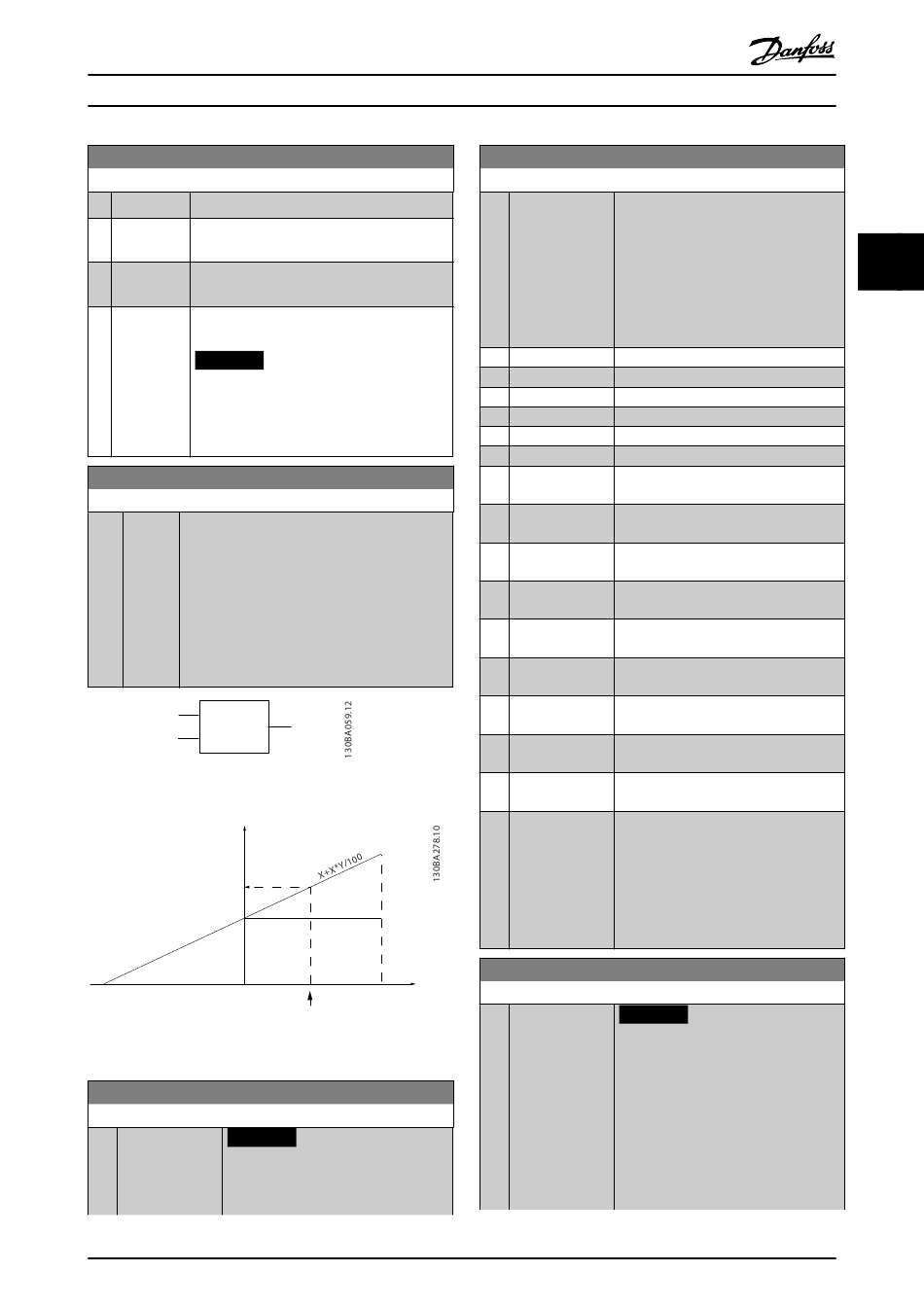

Danfoss VLT AQUA Drive FC 202 Programming Manual page 59

Parameter Description
3-13 Reference Site
Option: Function:
Select which reference site to activate.
[0] Linked to Use local reference when in Hand mode; or
Hand / Auto remote reference when in Auto mode.
[1] Remote Use remote reference in both Hand mode and
Auto mode.
[2] Local Use local reference in both Hand mode and
Auto mode.
NOTICE
When set to [2] Local, the frequency
converter starts with this setting again
following a 'power down'.
3-14 Preset Relative Reference
Range: Function:
0 % [-100 - The actual reference, X, is increased or decreased
*
100 %] with the percentage Y, set in
parameter 3-14 Preset Relative Reference. This
results in the actual reference Z. Actual reference
(X) is the sum of the inputs selected in
parameter 3-15 Reference 1 Source,
parameter 3-16 Reference 2 Source,
parameter 3-17 Reference 3 Source and
8-02 Control Source.
Y
Relative
X Z=X+X*Y/100
Illustration 3.15 Preset Relative Reference
Z
-100 0
Illustration 3.16 Actual Reference
3-15 Reference 1 Source
Option: Function:
NOTICE
This parameter cannot be adjusted
while the motor is running.
MG20O702
Programming Guide
Resulting
Z
actual
reference
X
Y
100 %
P 3-14
Danfoss A/S © Rev. 2014-01-21 All rights reserved.
3-15 Reference 1 Source
Option: Function:
Select the reference input to be used for
the first reference signal.
Parameter 3-15 Reference 1 Source,
parameter 3-16 Reference 2 Source and
parameter 3-17 Reference 3 Source define
up to 3 different reference signals. The
sum of these reference signals defines
the actual reference.
[0] No function
[1] Analog Input 53
[2] Analog Input 54
[7] Pulse input 29
[8] Pulse input 33
[20] Digital pot.meter
[21] Analog input
X30/11
[22] Analog input
X30/12
[23] Analog Input
X42/1
[24] Analog Input
X42/3
[25] Analog Input
X42/5
[29] Analog Input
X48/2
[30] Ext. Closed Loop
1
[31] Ext. Closed Loop
2
[32] Ext. Closed Loop
3
[35] Digital input The frequency converter selects AI53 or
select AI54 as the reference source basing on
the input signal defined in option [42]
Ref source bit 0 of one of the digital
inputs. For more information, see
parameter group 5-1* Digital Inputs,
option [42] Ref source bit 0.
3-16 Reference 2 Source
Option: Function:
NOTICE
This parameter cannot be adjusted
while the motor is running.
Select the reference input to be used for
the second reference signal.
parameter 3-15 Reference 1 Source,
parameter 3-16 Reference 2 Source and
parameter 3-17 Reference 3 Source define
up to 3 different reference signals. The
3 3
