How to Programme
Several values or measurements can be linked to each of
the displayed operating variables. The values or
measurements to be displayed can be defined via the
following parameters: parameter 0-20 Display Line 1.1 Small,
0-21 Display Line 1.2 Small, 0-22 Display Line 1.3 Small,
0-23 Display Line 2 Large, and 0-24 Display Line 3 Large,
which can be accessed via [QUICK MENU], "Q3 Function
Set-ups", "Q3-1 General Settings", "Q3-13 Display Settings".
Each readout parameter selected in parameter 0-20 Display
Line 1.1 Small to 0-24 Display Line 3 Large has its own scale
and digits after a decimal point. By larger numeric value of
a parameter fewer digits are displayed after the decimal
point.
Ex.: Current readout 5.25A; 15.2A 105A.
See parameter group 0-2* LCP Display for further details.

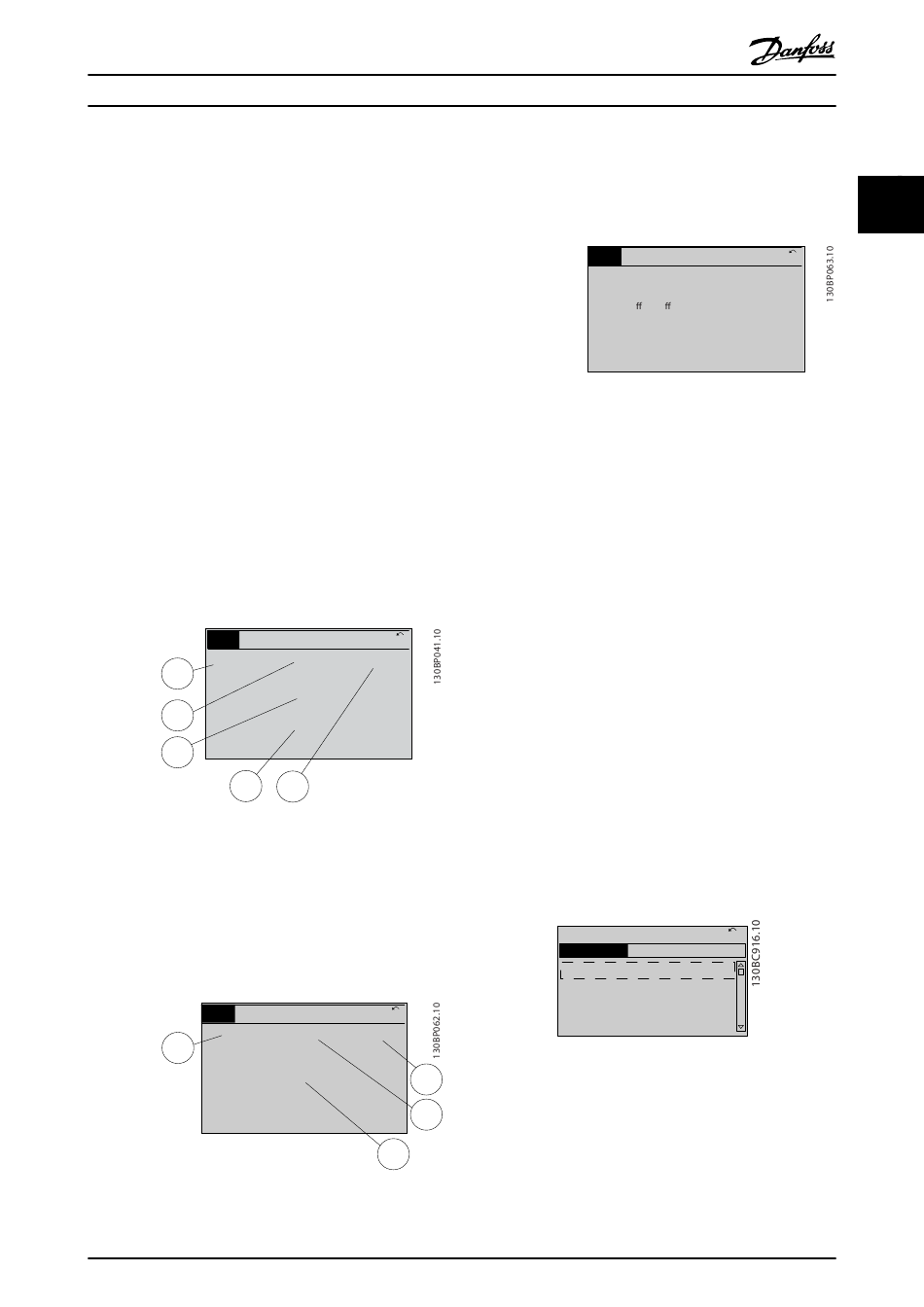

Status screen I
This readout state is standard after start-up or initialisation.
Press [Info] to obtain information about the measurement
links to the displayed operating variables (1.1, 1.2, 1.3, 2
and 3).
See the operating variables shown in the screen below.
Status
799 RPM
1.1
1.2
Auto Remote Ramping
2
3
Illustration 2.10 Status Screen I
Status screen II
See the operating variables (1.1, 1.2, 1.3 and 2) shown in
the screen below.
In the example, Speed, Motor current, Motor power and
Frequency are selected as variables in the first and second
line.
Status
207RPM
1.1
Auto Remote Running
Illustration 2.11 Status Screen II
MG20O702
Programming Guide
1 (1)
7.83 A 36.4 kw
0.000
53.2 %
1.3
1 (1)
5.25A 24.4 kW
6.9
Hz
1.3
1.2
2
Danfoss A/S © Rev. 2014-01-21 All rights reserved.
Status screen III
This state displays the event and action of the Smart Logic
Control. For further information, see
chapter 3.12 Parameters 13-** Smart Logic Control.
Status
778 RPM
State: 0 o 0 (o )
When: -
Do: -
Auto Remote Running
Illustration 2.12 Status Screen III
2.2.5 Parameter Set-Up, General
Information
The frequency converter can be used for practically all
assignments, which is why the number of parameters is
quite large. The frequency converter offers a choice
between 2 programming modes - a Main Menu and a
Quick Menu mode.
The former provides access to all parameters. The latter
takes the user through a few parameters making it
possible to program the majority of water/wastewater
applications.
Regardless of the mode of programming, parameters can
be changed in both the Main Menu mode and the Quick
Menu mode.quick menu mode

2.2.6 Quick Menu Key Functions

Press [Quick Menus] to see a list of different areas
contained in the Quick menu.
Select My Personal Menu to display the selected personal
parameters. These parameters are selected in
parameter 0-25 My Personal Menu. Up to 50 different
parameters can be added in this menu.
0RPM 0.00A
Quick Menus
Q1 My Personal Menu
Q2 Quick Setup
Q4 Smart Setup
Q5 Changes Made
Illustration 2.13 Quick Menus
Select Q2 Quick Setup to go through a limited amount of
parameters to get the motor running almost optimally. The
default setting for the other parameters considers the
desired control functions and the configuration of signal
inputs/outputs (control terminals).
1 (1)
0.86 A 4.0 kW
1(1)
17
2 2
