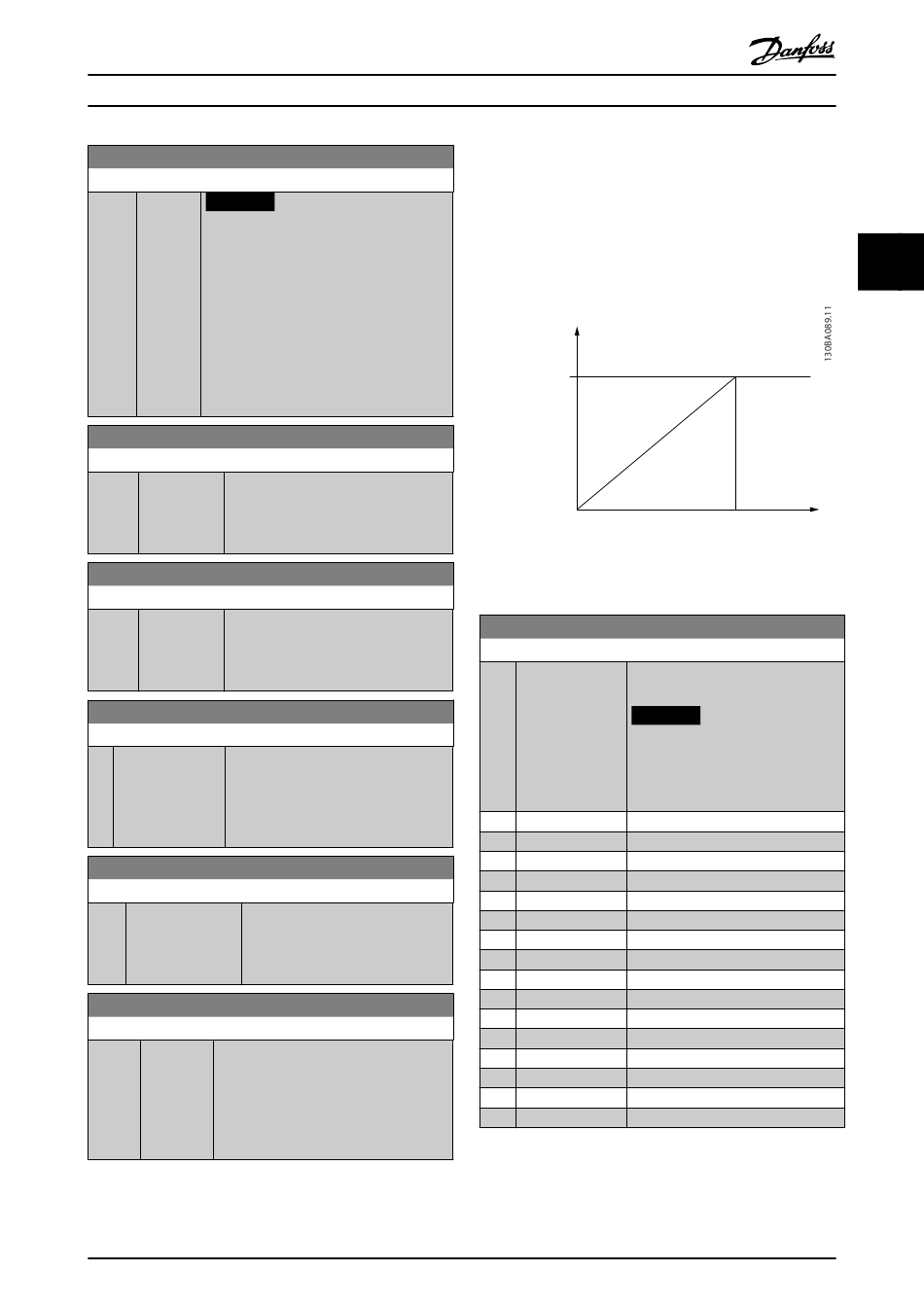

Danfoss VLT AQUA Drive FC 202 Programming Manual page 79

Parameter Description
5-54 Pulse Filter Time Constant #29
Range: Function:
NOTICE
100 [1 -
ms 1000 ms]
*
This parameter cannot be adjusted
while the motor is running.
Enter the pulse filter time constant. The
pulse filter dampens oscillations of the
feedback signal, which is an advantage if
there is a lot of noise in the system. A high
time constant value results in better
dampening but also increases the time delay
through the filter.
5-55 Term. 33 Low Frequency
Range: Function:
100 Hz [0 - 110000 Enter the low frequency corresponding
*
Hz] to the low motor shaft speed (i.e. low
reference value) in parameter 5-57 Term.
33 Low Ref./Feedb. Value.
5-56 Term. 33 High Frequency
Range: Function:
100 Hz [0 - 110000 Enter the high frequency corresponding
*
Hz] to the high motor shaft speed (i.e. high
reference value) in parameter 5-58 Term.
33 High Ref./Feedb. Value.
5-57 Term. 33 Low Ref./Feedb. Value
Range: Function:
0 [-999999.999 - Enter the low reference value [RPM] for
*
999999.999 ] the motor shaft speed. This is also the
low feedback value, see also
parameter 5-52 Term. 29 Low Ref./Feedb.
Value.
5-58 Term. 33 High Ref./Feedb. Value
Range: Function:
100 [-999999.999 - Enter the high reference value [RPM]
*
999999.999 ] for the motor shaft speed. See also
parameter 5-53 Term. 29 High Ref./
Feedb. Value.
5-59 Pulse Filter Time Constant #33
Range: Function:
100 ms [1 - 1000 Enter the pulse filter time constant. The
*
ms] low-pass filter reduces the influence on
and dampens oscillations on the feedback
signal from the control.
This is an advantage, e.g. if there is a
great amount on noise in the system.
MG20O702
Programming Guide
3.7.6 5-6* Pulse Outputs
Parameters for configuring the scaling and output
functions of pulse outputs. The pulse outputs are
designated to terminals 27 or 29. Select terminal 27 output
in parameter 5-01 Terminal 27 Mode and terminal 29 output
in parameter 5-02 Terminal 29 Mode.
High output
value
P 5-60(term27)
P 5-63(term29)
Illustration 3.28 Pulse Output
5-60 Terminal 27 Pulse Output Variable
Option:
[0] No operation
[45] Bus ctrl.
[48] Bus ctrl., timeout
[100] Output freq. 0-100
[101] Reference Min-Max
[102] Feedback +-200%
[103] Motor cur. 0-Imax
[104] Torque 0-Tlim
[105] Torque 0-Tnom
[106] Power 0-Pnom
[107] Speed 0-HighLim
[108] Torque +-160%
[109] Out frq 0-Fmax
[113] Ext. Closed Loop 1
[114] Ext. Closed Loop 2
[115] Ext. Closed Loop 3
[116] Cascade Reference
Danfoss A/S © Rev. 2014-01-21 All rights reserved.
Output value
High freq.
P 5-62(term27)
P 5-65(term29)
Function:
Select the operation variable assigned
for terminal 27 readouts.
NOTICE
This parameter cannot be
adjusted while the motor is
running.
3 3
