Parameter Description
3.22.2 25-2* Bandwidth Settings
Parameters for setting the bandwidth within which the
pressure is allowed to operate before staging/destaging
fixed speed pumps. Also includes various timers to stabilise
the control.
25-20 Staging Bandwidth
Range: Function:
Size [ 1 - Set the staging bandwidth (SBW) percentage
related par. to accommodate normal system pressure
*
25-21 fluctuation. In cascade control systems, to
%] avoid frequent switching of fixed speed
pumps, the desired system pressure is typically
kept within a bandwidth rather than at a
constant level.
The SBW is programmed as a percentage of
parameter 3-03 Maximum Reference. For
example, if the maximum reference is 6 bar,
the setpoint is 5 bar and the SBW is set to
10%, a system pressure between 4.5 and 5.5
bar is tolerated. No staging or de-staging will
occur within this bandwidth.

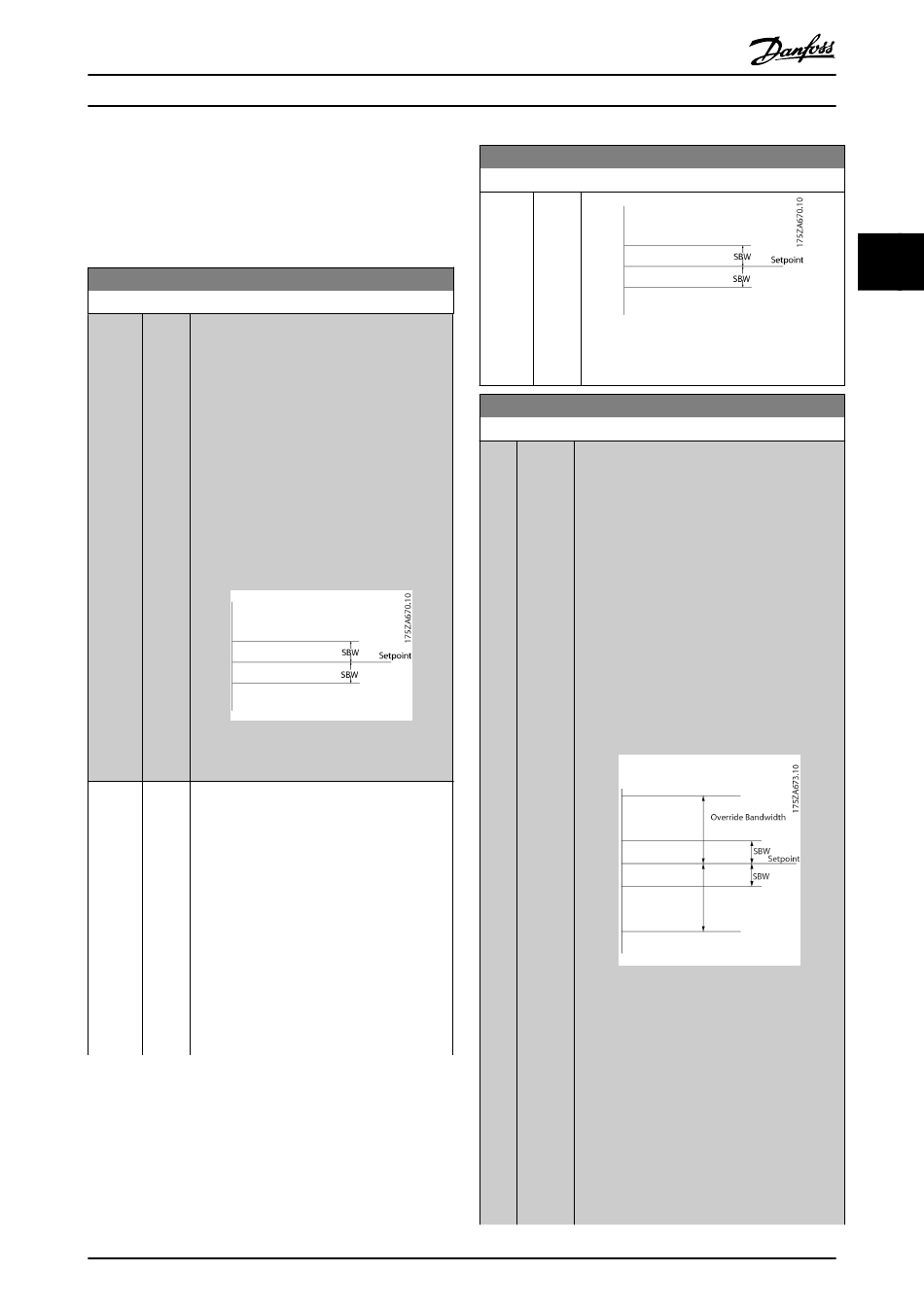

Illustration 3.72 Staging Bandwidth
Size [ 1 - Set the staging bandwidth (SBW) percentage
related par. to accommodate normal system pressure
*
25-21 fluctuation. In cascade control systems, to
%] avoid frequent switching of fixed speed
pumps, the desired system pressure is typically
kept within a bandwidth rather than at a
constant level.
The SBW is programmed as a percentage of
20-13 Minimum Reference and 20-14 Maximum
Reference. For example, if the setpoint is 5 bar
and the SBW is set to 10%, a system pressure
between 4.5 and 5.5 bar is tolerated. No
staging or de-staging will occur within this
bandwidth.
MG20O702
Programming Guide
25-20 Staging Bandwidth
Range:
25-21 Override Bandwidth
Range:
100
% 25-20 -
*
100 %]
Danfoss A/S © Rev. 2014-01-21 All rights reserved.
Function:
Illustration 3.73 Staging Bandwidth
Function:
[ par. When a large and quick change in the system
demand occurs (such as a sudden water
demand), the system pressure rapidly changes
and an immediate staging or destaging of a
fixed speed pump becomes necessary to match
the requirement. The override bandwidth (OBW)
is programmed to override the staging/
destaging timer (parameter 25-23 SBW Staging
Delay and parameter 25-24 SBW Destaging Delay)
for immediate response.
The OBW must always be programmed to a
higher value than the value set in
parameter 25-20 Staging Bandwidth. The OBW is
a percentage of parameter 3-02 Minimum
Reference and parameter 3-03 Maximum
Reference.
Illustration 3.75
Setting the OBW too close to the SBW could
defeat the purpose with frequent staging at
momentary pressure changes. Setting the OBW
too high might lead to unacceptably high or
low pressure in the system while the SBW
timers are running. The value can be optimized
with increased familiarity with the system. See
parameter 25-25 OBW Time.
To avoid unintended staging during the
commissioning phase and fine tuning of the
3 3
175
