8-7-4

Operation Ready (IRDY)

Assign the output terminal function 007 [IRDY] operation preparation completed signal to one of
[CC-01] to [CC-07] that corresponds to the output terminal and output the signal.
The operation preparation completed signal 007 [IRDY] is output when the inverter can accept opera-
tion commands.

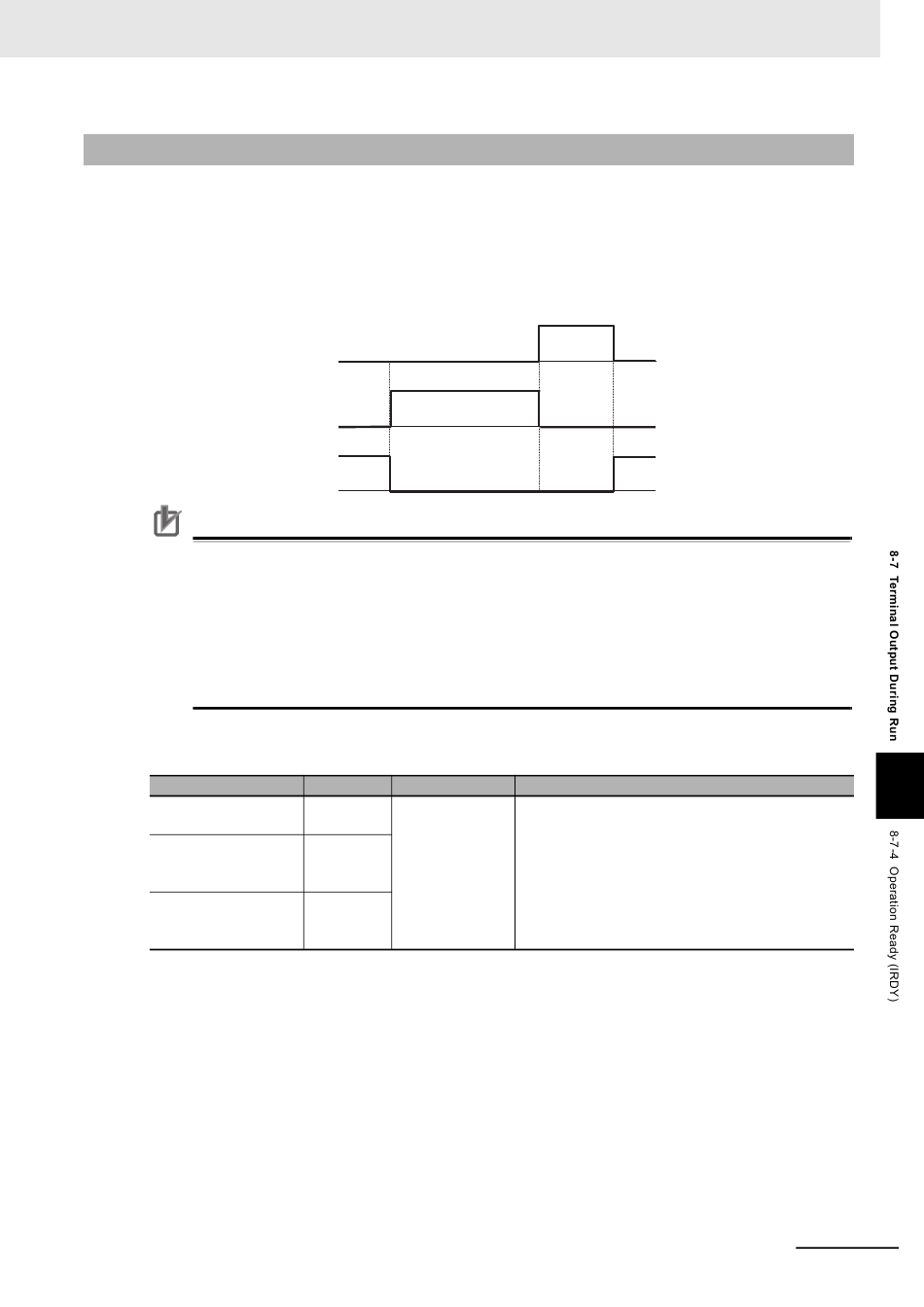

The timing chart is as follows.
(Ex.) In the case of a terminal command
Reset signal input [RS]
Trip signal [AL]
Operation preparation
completed signal [IRDY]
Precautions for Correct Use
• When this signal is not output, the inverter cannot be operated even if operation commands
are input.
• This signal is turned OFF in the following cases or a condition:
• During operation ready with power-ON.
• When undervoltage of the R-S-T input voltage occurs
• While the inverter has been tripped
• Under a free run stop command
 Parameter
Item
Output terminal func-
tion selection 11-15
Relay output terminal
function selection
16A-16C
Relay output terminal
function selection
AL1-AL0/AL2-AL0
High-function General-purpose Inverter RX2 Series User's Manual
Parameter Data
[CC-01] to
[CC-05]
[CC-06]
007
[CC-07]
8 Applied Settings
Description
[IRDY]: The operation preparation completed signal
is output to the output terminal assigned.
8
