Omron RX2 Series User Manual page 90

2 Design
Short circuit
connector for
EMC filter
Disable
Enable
* The EMC filter is enabled/disabled by switching the short circuit connector.
Power supply input wire
R S
(L1) (L2)
G
Short circuit connector
for EMC filter
Disable
Enable
Power supply input wire
R S
(L1) (L2) (L3)
G
* The EMC filter is enabled/disabled by switching the short circuit connector.
2 - 36

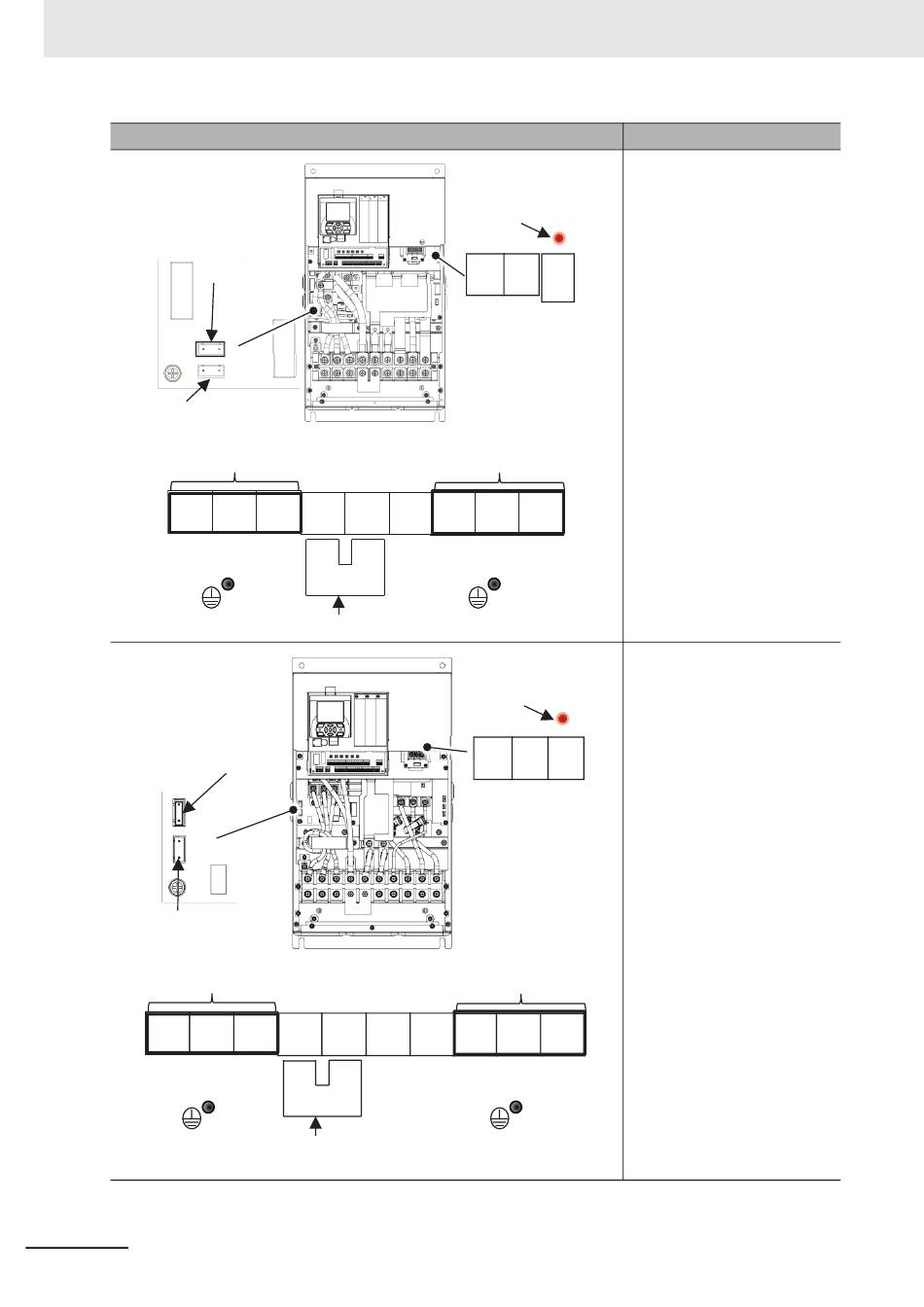

Arrangement of Terminals
T
PD P N
(L3)
(+1) (+) (-)
PD-P short bar
T PD P N RB
(+1) (+) (-) (RB)
PD-P short bar
Charge lamp
(Light when
electricity turned on)
R0 T0
Motor output wire
U V W
(T1) (T2) (T3)
G
Charge lamp
(Light when
electricity turned on)
R0 T0
Motor output wire
U V W
(T1) (T2) (T3)
G
High-function General-purpose Inverter RX2 Series User's Manual
Model
3G3RX2-A2300
R0,T0 : M4
Earth terminal: M6
Others: M8
3G3RX2-A4300
R0,T0 : M4
Earth terminal: M6
Others: M8
