Stop Conditions

7-6-1

Selection of Stop Operation

Use [AA115] Stop mode selection to select one of the two methods of stopping the motor when the
operation command is turned off. One is to stop the motor according to the deceleration time; the other
is to immediately cut off the output to shut down.
If a free-run stop is to be input from a terminal, assign 032 [FRS] to an input terminal, and turn on the
terminal.
If the free-run stop is selected, the restart when an operation command is given the next time will follow
the selection at [bb-40] Restart after free-run stop.
Precautions for Correct Use
If [AA115]=01 free-run stop is selected, the output will be shut off when the operation command
is turned off.
 Parameter
Item
STOP mode
selection,
1st-motor
Restart mode after
FRS release
Input terminal
selection

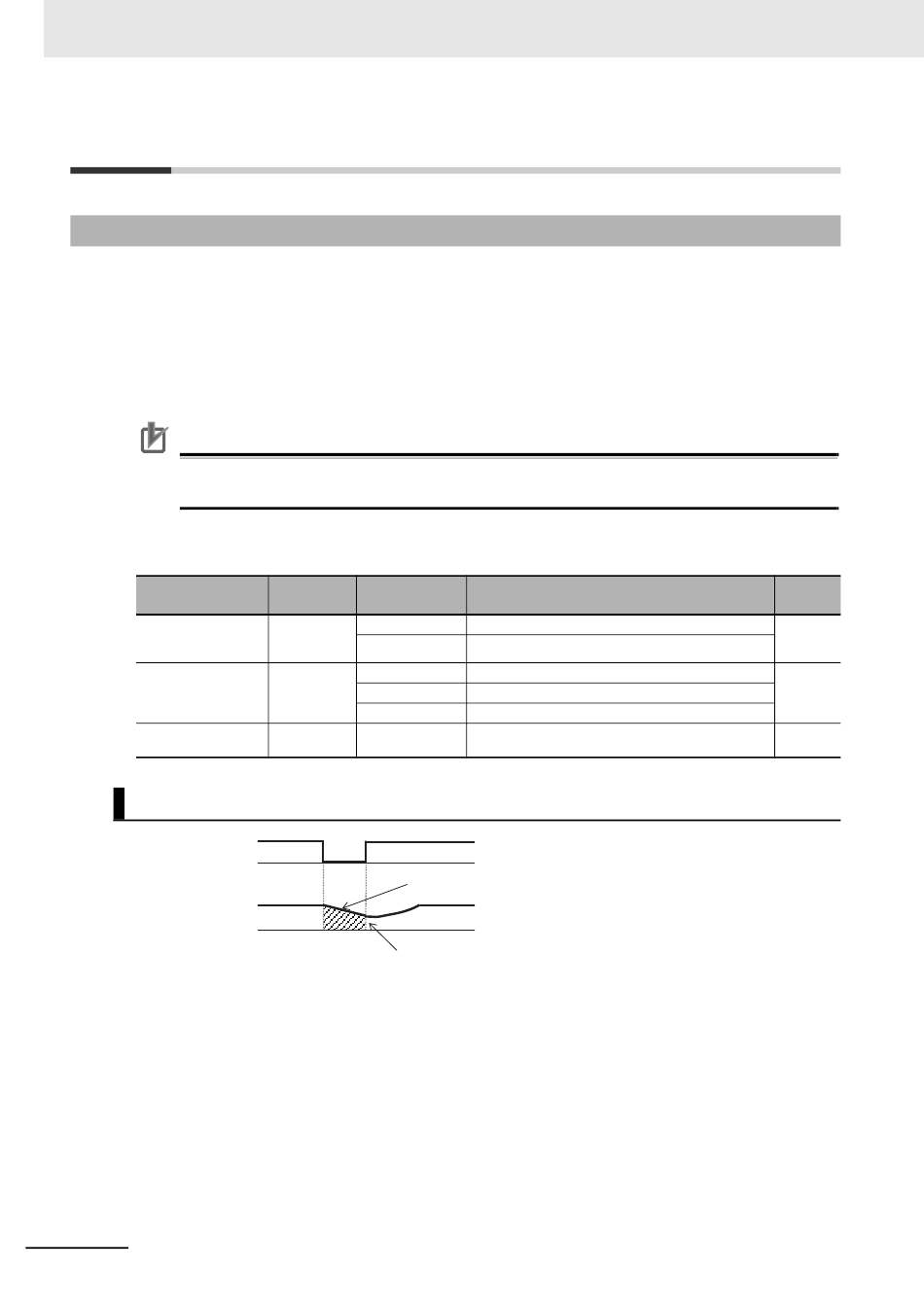

When Free-run Stop is Selected: [AA115]=01
Operation
command [FW]
Motor speed
7 - 82
Parameter Data
00
[AA115]
01
00
[bb-40] 01
02
[CA-01] to
032
[CA-11]
ON ON
Free-running
0
Behavior according to the restart after free-run stop
(Ex.) [bb-40]=01
Description
Normal stop (deceleration → stop)
Free-run stop
Restart with 0 Hz
Frequency matching restart
Frequency pull-in restart
Uses the Free-run stop function [FRS].
