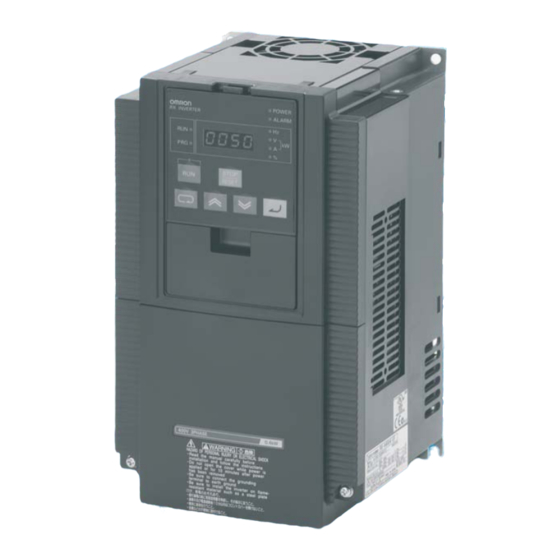

User Manual
RX
Customised to your machine
• Up to 132 kW
• High starting torque in open loop: 200% at 0.3Hz
• Full torque at 0 Hz in closed loop
• Sensor-less and vector closed-loop control
• Built-in EMC filter
• Built-in logic programmability
• Built-in application functionality
• Positioning functionality
• Automatic energy saving
• Micro-surge voltage suppression
• Modbus RS485 (options for other networks)
• CE, cULus, RoHS
Ratings
• 200 V Class three-phase 0.4 to 55 kW
• 400 V Class three-phase 0.4 to 132 kW

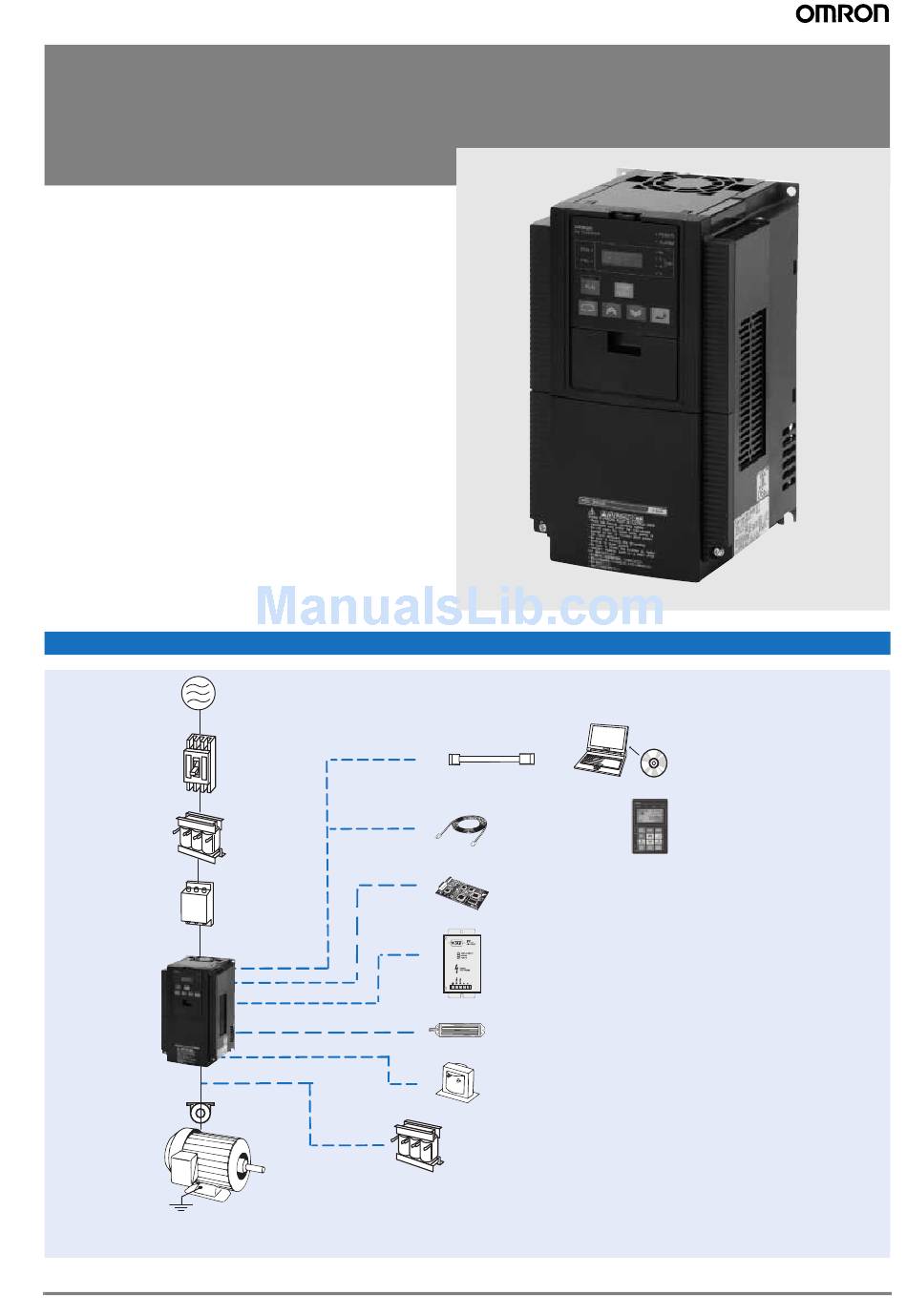

System configuration
Power
supply
MCCB
Input AC reactor
Filter
RX
Choke
Motor
Ground
RX
RJ45 - USB cable
Remote operator
extension cable
Option units
Braking chopper
Braking resistor
DC reactor
Output AC reactor
CX-Drive
CX-One
LCD 5 lines remote
operator
1
Advertisement
Table of Contents
Related Manuals for Omron RX
Summary of Contents for Omron RX
-
Page 1: System Configuration
Customised to your machine • Up to 132 kW • High starting torque in open loop: 200% at 0.3Hz • Full torque at 0 Hz in closed loop • Sensor-less and vector closed-loop control • Built-in EMC filter • Built-in logic programmability •... -
Page 2: Specifications
Forced air cooling Cooling method Based on a standard 3-Phase standard motor. 400V class Three-phase: RX-@ A4004 A4007 A4015 A4022 A4040 A4055 A4075 A4110 A4150 A4185 A4220 A4300 A4370 A4450 A4550 B4750 B4900 B411K B413K 0.75 18.5 Motor kW 13.1 17.3... -
Page 3: Common Specifications
150%/60 s, 200%/3 s Overload capability 0 to 10 VDC (10 KΩ), -10 to 10 VDC (10 KΩ), 4 to 20 mA (100 Ω), RS485 Modbus, Network options Frequency set value V/f optionally changeable at base frequencies of 30 to 400 Hz, V/f braking constant torque, reduction torque, sensor-less vec-... - Page 4 Dimensions Figure 2 Figure 1 2-7 2-φ6 Figure 3 Figure 4 2-φ7 2-φ10 Frequency inverters...
- Page 5 Figure 5 2-φ12 2-12 Dimensions in mm Voltage class Inverter model RX@ Figure Weight (KG) A2004 A2007 A2015 A2022 A2037 A2055 A2075 13.6 Three-phase A2110 200 V A2150 A2185 A2220 A2300 A2370 A2450 A2550 A4004 A4007 A4015 A4022 A4040 A4055 A4075 13.6...
- Page 6 Rasmi filters Block type dimensions Footprint dimensions Book type dimensions drive mounts output flexes Dimensions Weight Voltage Inverter model Rasmi model Filter type RX-A2004 RX-A2007 RX-A2015 AX-FIR2018-RE RX-A2022 Footprint RX-A2037 RX-A2055 RX-A2075 AX-FIR2053-RE 3x200 V RX-A2110 RX-A2150 RX-A2185 AX-FIR2110-RE Book type...
- Page 7 Input AC Reactor Dimensions Weight Voltage Reference AX-RAI02800100-DE 2.35 AX-RAI00880200-DE AX-RAI00350335-DE 200 V AX-RAI00180670-DE AX-RAI00091000-DE AX-RAI00071550-DE 11.7 AX-RAI00042300-DE 16.0 AX-RAI07700050-DE 1.78 AX-RAI03500100-DE 2.35 AX-RAI01300170-DE 400 V AX-RAI00740335-DE AX-RAI00360500-DE AX-RAI00290780-DE 11.7 AX-RAI00191150-DE 16.0 DC reactor Figure 1 Figure 2 200 V...
- Page 8 < 15 AX-FER5045-RE < 45 AX-FER6055-RE > 45 Ø d Braking unit dimensions Dimensions Reference BC... AX-BCR4015045-TE C H O P P E R 82.5 40.5 150 AX-BCR4017068-TE OVERCURRENT ACTIVE AX-BCR2035090-TE POWER AX-BCR2070130-TE DANGER 130 64.5 205 HIGH VOLTAGE !
-
Page 9: Resistor Dimensions
Resistor dimensions Fig 1 AX-REM00K1xxx Fig 2 Fig 5 Fig 3 Fig 4 Weight Dimensions Type Fig. AX-REM00K2070-IE AX-REM00K2120-IE AX-REM00K2200-IE AX-REM00K4075-IE AX-REM00K4035-IE 0.425 AX-REM00K4030-IE AX-REM00K5120-IE 0.58 AX-REM00K6100-IE 0.73 AX-REM00K6035-IE AX-REM00K9070-IE AX-REM00K9020-IE 1.41 AX-REM00K9017-IE AX-REM01K9070-IE AX-REM01K9017-IE AX-REM02K1070-IE AX-REM02K1017-IE AX-REM03K5035-IE AX-REM03K5010-IE AX-REM19K0006-IE... -
Page 10: Standard Connections
Inverter output Used to connect the motor U/T1, V/T2, W/T3 External DC reactor terminal Normally connected by the short-circuit bar. Remove the short-circuit bar between +1 and P/ PD/+1, P/+ +2 when a DC reactor is connected. Braking resistor Connect option braking resistor (if a braking torque is required) -
Page 11: Control Circuit
Power supply for contact input signal 100 mA max Input common Common terminal for P24, TH and analog monitor (AM, AMI, MP) terminals Forward rotation command terminal Motor runs in forwards direction when FW is ON Factory setting: Reverse (RV) -
Page 12: Inverter Heat Loss
95.1 95.1 Efficiency at rated output Forced-air-cooling Cooling Method Three-phase 400 V class Model RX- A4004 A4007 A4015 A4022 A4040 A4055 A4075 A4110 A4150 A4185 A4220 A4300 A4370 A4450 A4550 B4750 B4900 B411K B413K 13.1 17.3 22.1 26.3 33.2 40.1 51.9... -
Page 13: Braking Unit
DC Reactor Power MCCB supply R/L1 S/L2 T/L3 PD/+1 DC reactor 200 V class 400 V class Max. applicable Current value Inductance Max. applicable Current value Inductance Reference Reference motor output kW motor output kW 43.00 AX-RC10700032-DE 10.70 AX-RC43000020-DE AX-RC06750061-DE 6.75... -
Page 14: Ordering Information
Braking chopper Braking resistor Choke DC reactor Motor Output AC reactor Ground Specifications Model Specifications Model Rated Max motor kW Rated current A Voltage class Standard Voltage class Max motor kW Standard current A RX-A2004-EF RX-A4004-EF 0.75 RX-A2007-EF 0.75 RX-A4007-EF... - Page 15 A2550 AX-RC00133057-DE A4550 AX-RC00501529-DE Chokes Model Diameter Description AX-FER2102-RE For 2.2 kW motors or below AX-FER2515-RE For 15 kW motors or below AX-FER5045-RE For 45 kW motors or below AX-FER6055-RE For 55 kW motors or above Output AC Reactor Voltage...
- Page 16 Mounting kit for LED operator on panel 3G3AX-PCACN2 USB converter / USB cable RJ45 to USB connection cable please note, models with firmware 4287 and 4288, the operator will only display 2 lines of text. C Option boards Types Model...
- Page 17 E Computer software Types Model Description Installation CX-drive Computer software Configuration and monitoring software tool CX-One Computer software Configuration and monitoring software tool...
- Page 18 ALL DIMENSIONS SHOWN ARE IN MILLIMETERS. To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527. In the interest of product improvement, specifications are subject to change without notice. Cat. No. I116E-EN-01B Frequency inverters...
