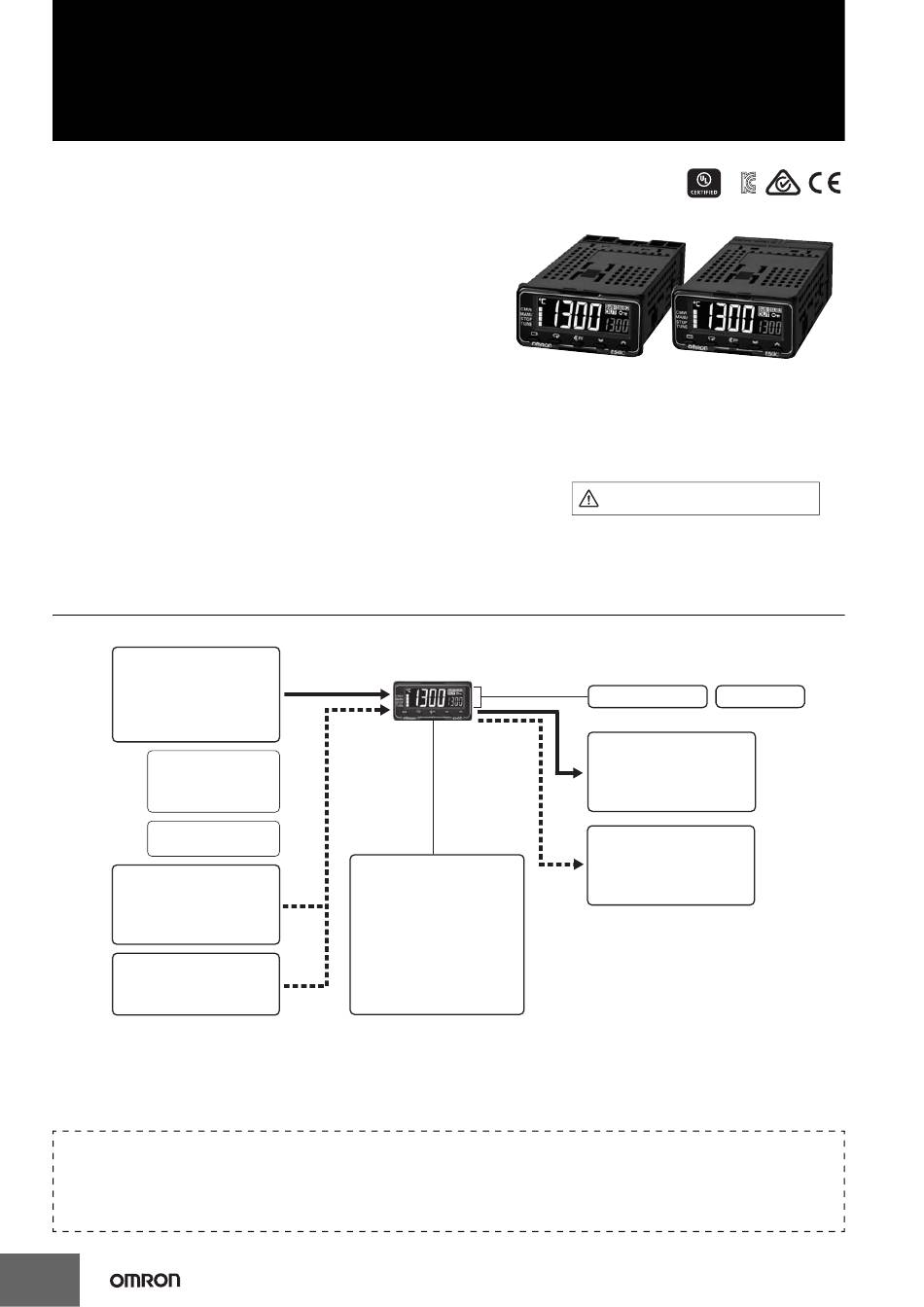

Omron E5GC-6 Series Instruction Manual

Digital Temperature Controller
E5GC
Easy Operation and High Performance of
the E5@C Series in a Compact 48 × 24-
mm Body
• A compact body of 48 × 24 × 90 mm (W × H × D) that is ideal for
small equipment, laboratory instruments, and others.
• White PV display with a height of 10.5 mm for high visibility even
with the compact body.
• Removable terminal block to simplify maintenance. Select from
screw terminal blocks or screwless clamp terminal blocks for the
wiring method.
• High-speed sampling at 50 ms.
• Easy connections to a PLC with programless communications.
• Set up the Controller without wiring the power supply by
connecting to the computer with a Communications Conversion
Cable (sold separately). Setup is easy with the CX-Thermo (sold
separately).
Main I/O Functions
Sensor Input
Universal input
• Thermocouple
• Pt
• Analog current/voltage
Indication Accuracy
• Thermocouple input:
±0.3% of PV
• Pt input: ±0.2% of PV
• Analog input: ±0.2% of FS
Sampling Period
• 50 ms
Event Inputs
• None
• 1
• 2
Serial Communications
• None
• RS-485
This datasheet is provided as a guideline for selecting products.
Be sure to refer to the following manuals for application precautions and other information required for operation before attempting
to use the product.
E5@C Digital Temperature Controllers User's Manual (Cat. No. H174)
E5@C Digital Temperature Controllers Communications Manual (Cat. No. H175)
2
(48 × 24 mm)
E5GC
• PF (shift) Key
• Temperature status display
• Simple programming
• Independent heating and
cooling PID control
• Changed parameter display
• Display brightness setting
• Simple transfer output (only on
models with liner current outputs)
• Work Bit Message
48 × 24 mm
Models with Screw
Models with Screwless
Terminal Blocks
Clamp Terminal Blocks
E5GC-@6
Refer to your OMRON website for the most recent
information on applicable safety standards.
Refer to Safety Precautions on 122.
Dual displays: PV/SV
Control Output 1
• Relay output
• Voltage output (for driving SSR)
• Linear current output
Auxiliary Outputs
• None
• 1
• 2
*
* CSA conformance
evaluation by UL.
48 × 24 mm
E5GC-@C
4-digit displays
