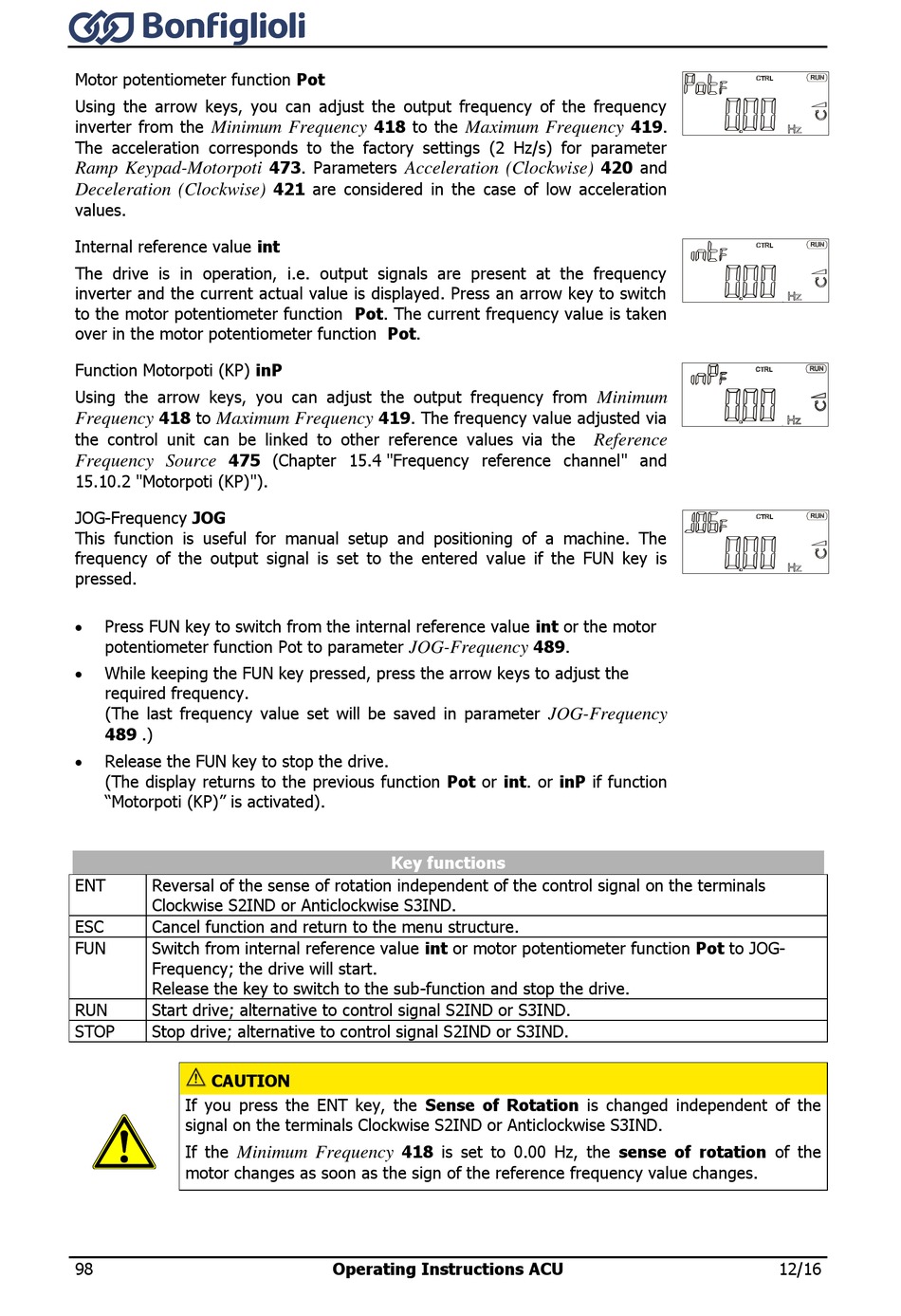

BONFIGLIOLI ACTIVE CUBE 201 Operating Instructions Manual page 98

Motor potentiometer function Pot
Using the arrow keys, you can adjust the output frequency of the frequency
inverter from the
Minimum Frequency
The acceleration corresponds to the factory settings (2 Hz/s) for parameter
Ramp Keypad-Motorpoti
Deceleration (Clockwise)
values.
Internal reference value int
The drive is in operation, i.e. output signals are present at the frequency
inverter and the current actual value is displayed. Press an arrow key to switch
to the motor potentiometer function Pot. The current frequency value is taken
over in the motor potentiometer function Pot.
Function Motorpoti (KP) inP
Using the arrow keys, you can adjust the output frequency from
418 to
Frequency Maximum Frequency
the control unit can be linked to other reference values via the
475 (Chapter 15.4 "Frequency reference channel" and
Frequency Source
15.10.2 "Motorpoti (KP)").
JOG-Frequency JOG
This function is useful for manual setup and positioning of a machine. The
frequency of the output signal is set to the entered value if the FUN key is
pressed.
 Press FUN key to switch from the internal reference value int or the motor
potentiometer function Pot to parameter
 While keeping the FUN key pressed, press the arrow keys to adjust the
required frequency.
(The last frequency value set will be saved in parameter
489 .)

Release the FUN key to stop the drive.
(The display returns to the previous function Pot or int. or inP if function
"Motorpoti (KP)" is activated).
ENT Reversal of the sense of rotation independent of the control signal on the terminals
Clockwise S2IND or Anticlockwise S3IND.
ESC Cancel function and return to the menu structure.
FUN Switch from internal reference value int or motor potentiometer function Pot to JOG-
Frequency; the drive will start.
Release the key to switch to the sub-function and stop the drive.
RUN Start drive; alternative to control signal S2IND or S3IND.
STOP Stop drive; alternative to control signal S2IND or S3IND.
CAUTION
If you press the ENT key, the Sense of Rotation is changed independent of the
signal on the terminals Clockwise S2IND or Anticlockwise S3IND.
If the
Minimum Frequency
motor changes as soon as the sign of the reference frequency value changes.
98
418 to the
473. Parameters
Acceleration (Clockwise)
421 are considered in the case of low acceleration
419. The frequency value adjusted via
JOG-Frequency
Key functions
418 is set to 0.00 Hz, the sense of rotation of the
Operating Instructions ACU
419.
Maximum Frequency
420 and
Minimum
Reference
489.
JOG-Frequency
12/16
