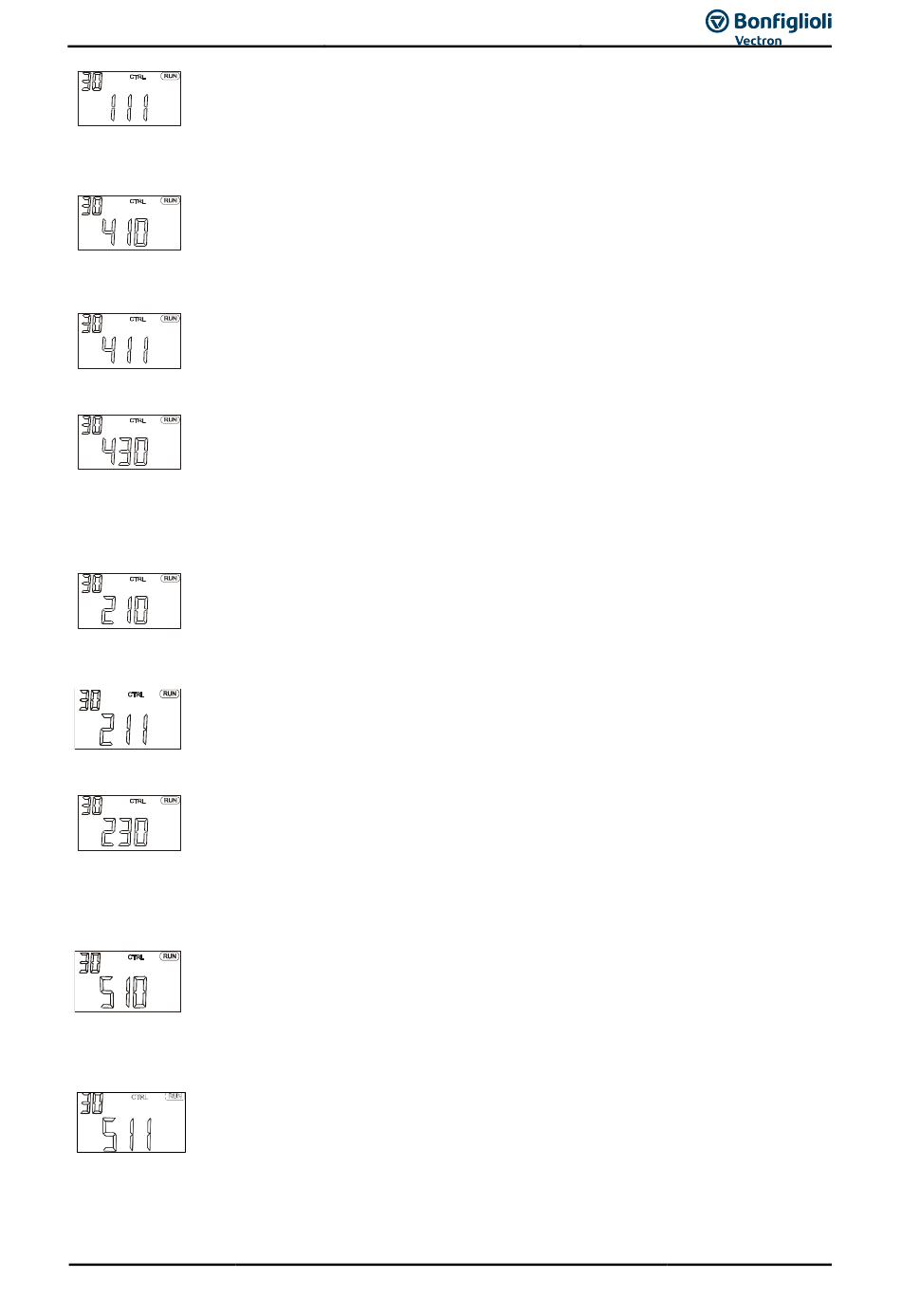

Configuration 111, SLC w. Technology Contr.
Configuration 111 extends the functionality of the sensorless control by software
functions for easier adaptation to the customer's requirements in different
applications. The Technology Controller enables flow rate, pressure, level or speed
control.
Configuration 410, sensorless field-oriented control
Configuration 410 contains functions for sensorless, field-oriented control of a 3-
phase machine. The current motor speed is determined from the present currents
and voltages in combination with the machine parameters. In this configuration,
parallel connection of several 3-phase motors is possible to a limited extent only.
Configuration 411, DMR
w. Technology Contr
Configuration 411 extends the functionality of Configuration 410 by a Technology
Controller. The Technology Controller enables a control based on parameters such
as flow rate, pressure, filling level or speed.
Configuration 430, DMR
N or M Controlled
Configuration 430 extends the functionality of Configuration 410 by functions for
torque-dependent, field-oriented control. The reference torque is represented as a
percentage and it is transmitted into the corresponding operational performance of
the application. Change-over between variable-speed control and torque-dependent
control is done jerk-free during operation.
Configuration 210, FOC Speed Controlled
Configuration 210 contains the functions for speed-controlled, field-oriented control
of a 3-phase machine with speed sensor feedback. The separate control of torque
and flux-forming current enables high drive dynamism with a high load moment. The
necessary speed sensor feedback results in a precise speed and torque performance.
Configuration 211, FOC w. Technology Contr.
Configuration 211 extends the functionality of Configuration 210 by a Technology
Controller. The Technology Controller enables a control based on parameters such
as flow rate, pressure, filling level or speed.
Configuration 230, FOC
N or M Controlled
Configuration 230 extends the functionality of Configuration 210 by functions for
torque-dependent, field-oriented control. The reference torque is represented as a
percentage and it is transmitted into the corresponding operational performance of
the application. Change-over between variable-speed control and torque-dependent
control is done jerk-free during operation.
Configuration 510, FOC Syn. Speed Controlled
Configuration 510 contains the functions for speed-controlled, field-oriented control
of a synchronous machine with speed sensor feedback. The separate control of
torque and flux-forming current enables high drive dynamism with a high load
moment. The necessary speed sensor feedback results in a precise speed and torque
performance.
Configuration 511, FOC Syn. Speed Controlled w. Technology Contr.
Configuration 511 extends the functionality of Configuration 510 by a Technology
Controller. The Technology Controller enables a control based on parameters such
as flow rate, pressure, filling level or speed.
