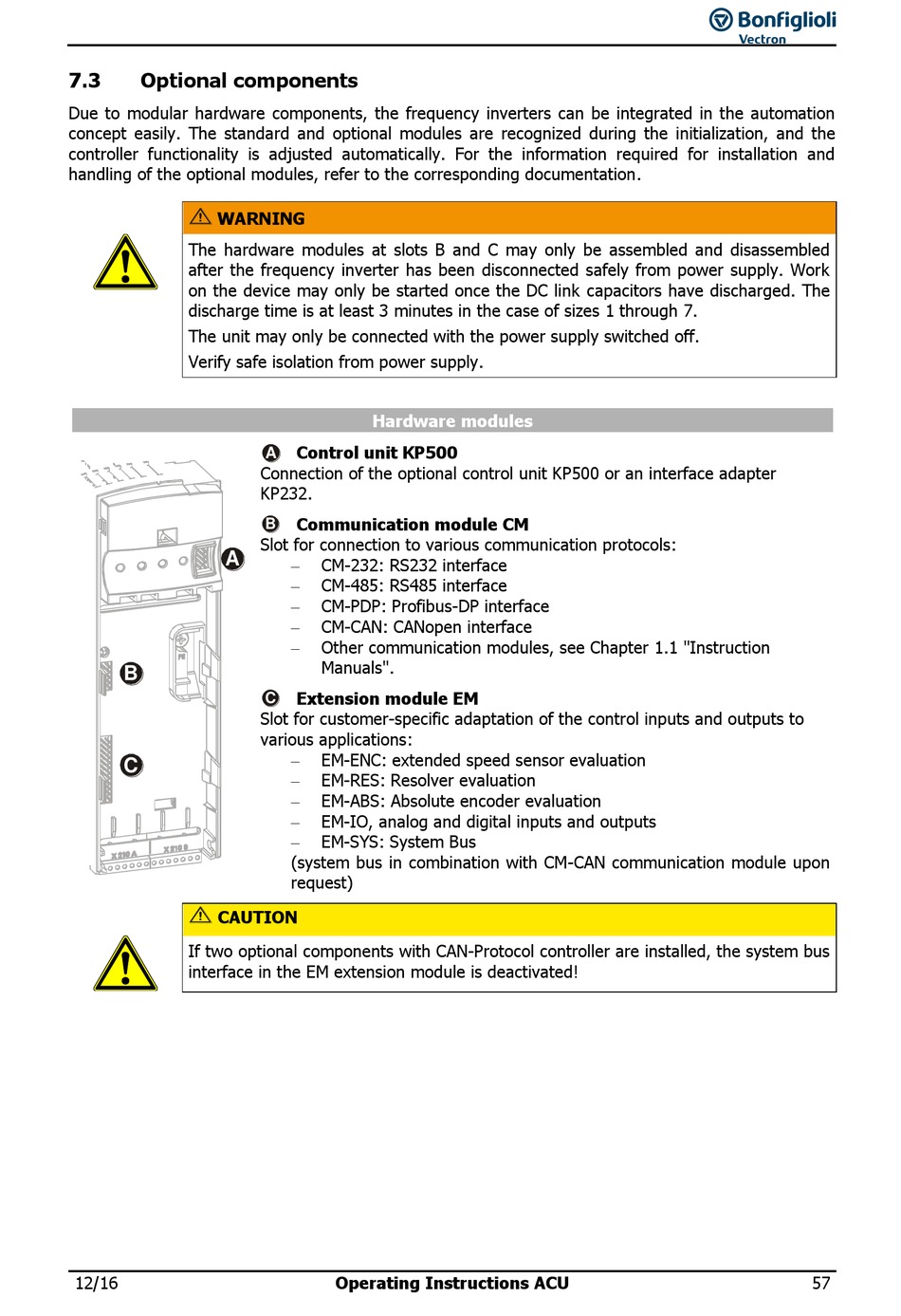

7.3

Optional components

Due to modular hardware components, the frequency inverters can be integrated in the automation
concept easily. The standard and optional modules are recognized during the initialization, and the
controller functionality is adjusted automatically. For the information required for installation and
handling of the optional modules, refer to the corresponding documentation.
WARNING
The hardware modules at slots B and C may only be assembled and disassembled
after the frequency inverter has been disconnected safely from power supply. Work
on the device may only be started once the DC link capacitors have discharged. The
discharge time is at least 3 minutes in the case of sizes 1 through 7.
The unit may only be connected with the power supply switched off.
Verify safe isolation from power supply.
A
B
C
CAUTION
If two optional components with CAN-Protocol controller are installed, the system bus
interface in the EM extension module is deactivated!
12/16
Hardware modules
Control unit KP500
A
Connection of the optional control unit KP500 or an interface adapter
KP232.
Communication module CM
B
Slot for connection to various communication protocols:
 CM-232: RS232 interface
 CM-485: RS485 interface
 CM-PDP: Profibus-DP interface
 CM-CAN: CANopen interface
 Other communication modules, see Chapter 1.1 "Instruction
Manuals".
Extension module EM
C
Slot for customer-specific adaptation of the control inputs and outputs to
various applications:
 EM-ENC: extended speed sensor evaluation
 EM-RES: Resolver evaluation
 EM-ABS: Absolute encoder evaluation
 EM-IO, analog and digital inputs and outputs
 EM-SYS: System Bus
(system bus in combination with CM-CAN communication module upon
request)
