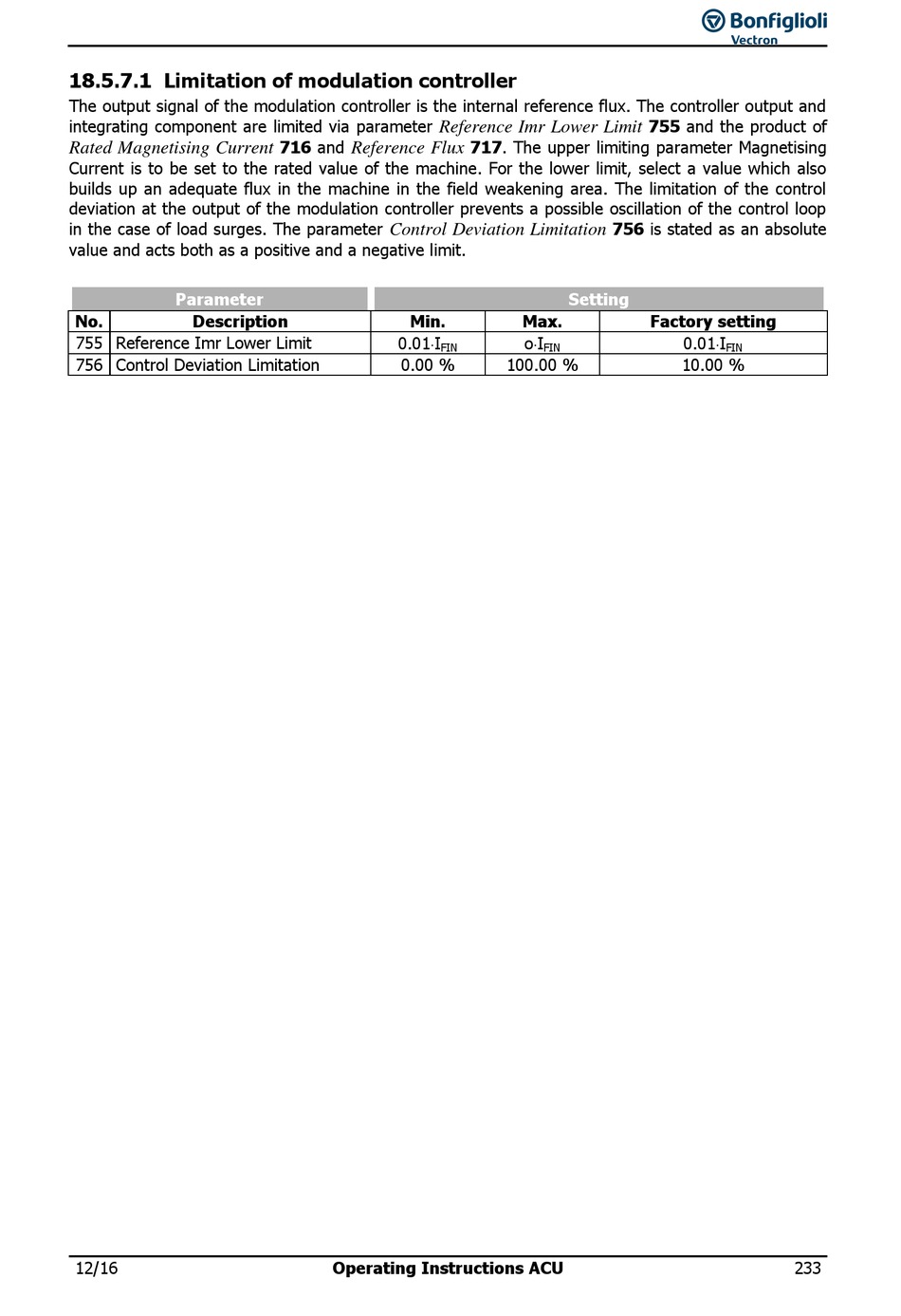

18.5.7.1 Limitation of modulation controller

The output signal of the modulation controller is the internal reference flux. The controller output and
integrating component are limited via parameter
Rated Magnetising Current
Current is to be set to the rated value of the machine. For the lower limit, select a value which also
builds up an adequate flux in the machine in the field weakening area. The limitation of the control
deviation at the output of the modulation controller prevents a possible oscillation of the control loop
in the case of load surges. The parameter
value and acts both as a positive and a negative limit.
Parameter
No. Description
755 Reference Imr Lower Limit
756 Control Deviation Limitation
12/16
Reference Imr Lower Limit
716 and
Reference Flux
Control Deviation Limitation
Min.
0.01I
FIN
0.00 %
Operating Instructions ACU
717. The upper limiting parameter Magnetising
756 is stated as an absolute
Setting
Max.
oI
FIN
100.00 %
755 and the product of
Factory setting
0.01I
FIN
10.00 %
233
