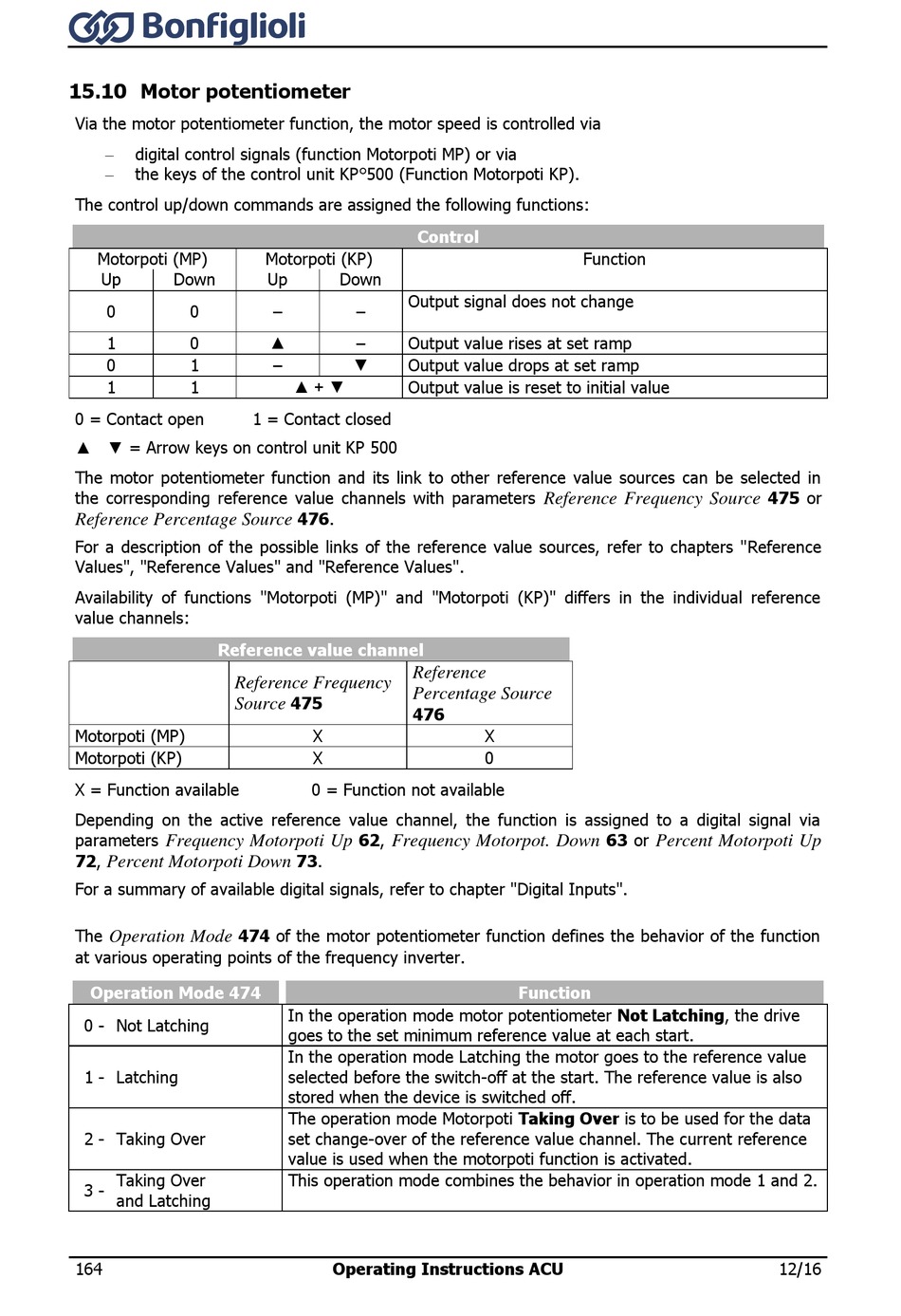

15.10 Motor potentiometer

Via the motor potentiometer function, the motor speed is controlled via
 digital control signals (function Motorpoti MP) or via
 the keys of the control unit KP°500 (Function Motorpoti KP).
The control up/down commands are assigned the following functions:
Motorpoti (MP)
Up Down
0 0
1 0
0 1
1 1
0 = Contact open
▲ ▼ = Arrow keys on control unit KP 500
The motor potentiometer function and its link to other reference value sources can be selected in
the corresponding reference value channels with parameters
Reference Percentage Source
For a description of the possible links of the reference value sources, refer to chapters "Reference
Values", "Reference Values" and "Reference Values".
Availability of functions "Motorpoti (MP)" and "Motorpoti (KP)" differs in the individual reference
value channels:
Reference value channel
Reference Frequency
Source
Motorpoti (MP)
Motorpoti (KP)
X = Function available
Depending on the active reference value channel, the function is assigned to a digital signal via
parameters
Frequency Motorpoti Up
72,
Percent Motorpoti Down
For a summary of available digital signals, refer to chapter "Digital Inputs".
The 474 of the motor potentiometer function defines the behavior of the function
Operation Mode
at various operating points of the frequency inverter.
Operation Mode 474
0 - Not Latching
1 - Latching
2 - Taking Over
Taking Over
3 -
and Latching
164
Control
Motorpoti (KP)
Up Down
Output signal does not change
– –
– Output value rises at set ramp
▲
– Output value drops at set ramp
▼
Output value is reset to initial value
▲ + ▼
1 = Contact closed
476.
Reference
Percentage Source
475
476
X
X
0 = Function not available
62,
Frequency Motorpot. Down
73.
In the operation mode motor potentiometer Not Latching, the drive
goes to the set minimum reference value at each start.
In the operation mode Latching the motor goes to the reference value
selected before the switch-off at the start. The reference value is also
stored when the device is switched off.
The operation mode Motorpoti Taking Over is to be used for the data
set change-over of the reference value channel. The current reference
value is used when the motorpoti function is activated.
This operation mode combines the behavior in operation mode 1 and 2.
