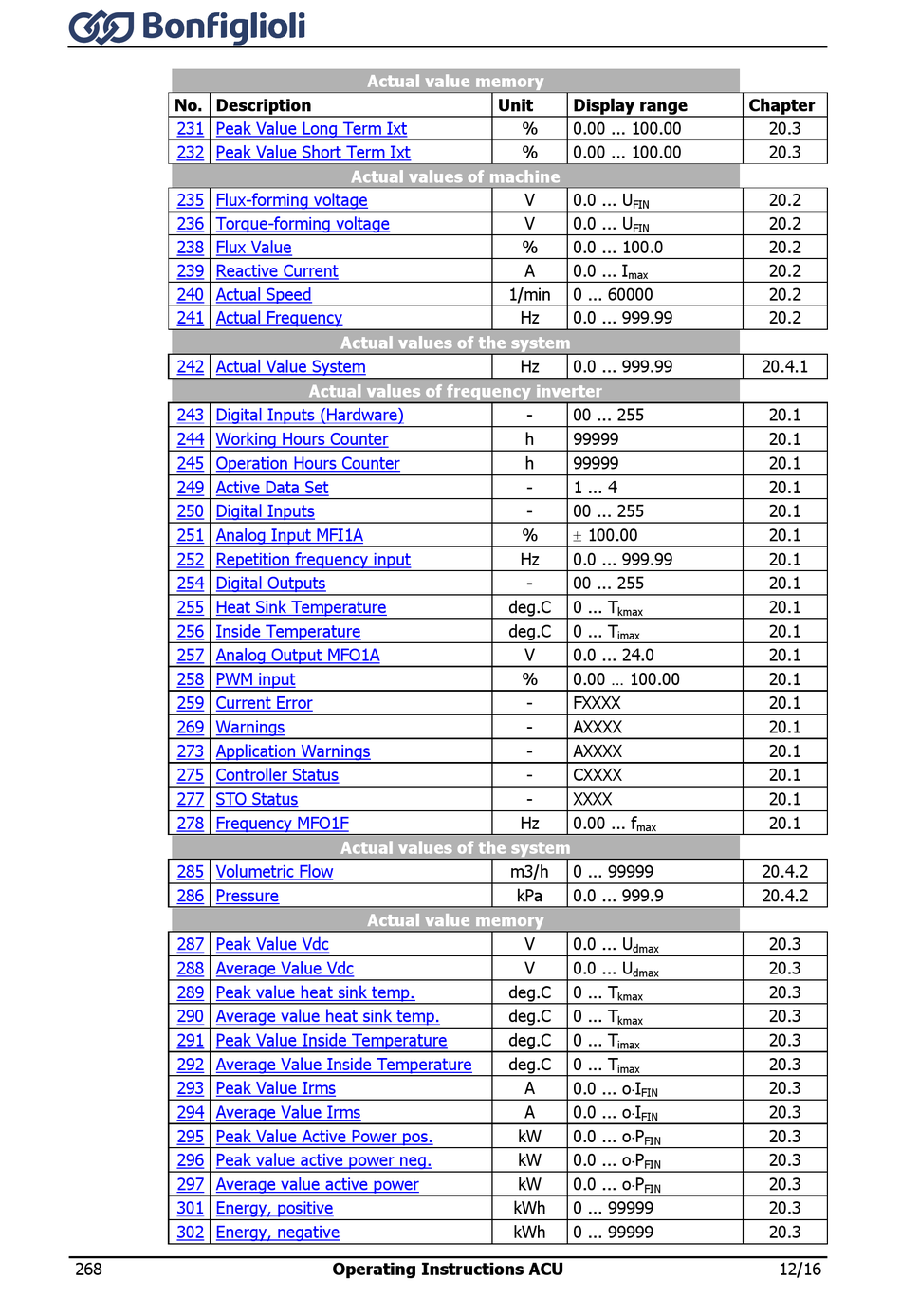

BONFIGLIOLI ACTIVE CUBE 201 Operating Instructions Manual page 268

No. Description
231 Peak Value Long Term Ixt
232 Peak Value Short Term Ixt
235 Flux-forming voltage
236 Torque-forming voltage
238 Flux Value
239 Reactive Current
240 Actual Speed
241 Actual Frequency
242 Actual Value System
243 Digital Inputs (Hardware)
244 Working Hours Counter
245 Operation Hours Counter
249 Active Data Set
250 Digital Inputs
251 Analog Input MFI1A
252 Repetition frequency input
254 Digital Outputs
255 Heat Sink Temperature
256 Inside Temperature
257 Analog Output MFO1A
258 PWM input
259 Current Error
269 Warnings
273 Application Warnings
275 Controller Status
277 STO Status
278 Frequency MFO1F
285 Volumetric Flow
286 Pressure
287 Peak Value Vdc
288 Average Value Vdc
289 Peak value heat sink temp.
290 Average value heat sink temp.
291 Peak Value Inside Temperature
292 Average Value Inside Temperature
293 Peak Value Irms
294 Average Value Irms
295 Peak Value Active Power pos.
296 Peak value active power neg.
297 Average value active power
301 Energy, positive
302 Energy, negative
268
Actual value memory
Actual values of machine
Actual values of the system
Actual values of frequency inverter
Actual values of the system
Actual value memory
Operating Instructions ACU
Unit Display range
% 0.00 ... 100.00
% 0.00 ... 100.00
V 0.0 ... U
FIN
V 0.0 ... U
FIN
% 0.0 ... 100.0
A 0.0 ... I
max
1/min 0 ... 60000
Hz 0.0 ... 999.99
Hz 0.0 ... 999.99
- 00 ... 255
h 99999
h 99999
- 1 ... 4
- 00 ... 255
%  100.00
Hz 0.0 ... 999.99
- 00 ... 255
deg.C 0 ... T
kmax
deg.C 0 ... T
imax
V 0.0 ... 24.0
% 0.00 ... 100.00
- FXXXX
- AXXXX
- AXXXX
- CXXXX
- XXXX
Hz 0.00 ... f
max
m3/h 0 ... 99999
kPa 0.0 ... 999.9
V 0.0 ... U
dmax
V 0.0 ... U
dmax
deg.C 0 ... T
kmax
deg.C 0 ... T
kmax
deg.C 0 ... T
imax
deg.C 0 ... T
imax
A 0.0 ... oI
FIN
A 0.0 ... oI
FIN
kW 0.0 ... oP
FIN
kW 0.0 ... oP
FIN
kW 0.0 ... oP
FIN
kWh 0 ... 99999
kWh 0 ... 99999
Chapter
20.3
20.3
20.2
20.2
20.2
20.2
20.2
20.2
20.4.1
20.1
20.1
20.1
20.1
20.1
20.1
20.1
20.1
20.1
20.1
20.1
20.1
20.1
20.1
20.1
20.1
20.1
20.1
20.4.2
20.4.2
20.3
20.3
20.3
20.3
20.3
20.3
20.3
20.3
20.3
20.3
20.3
20.3
20.3
