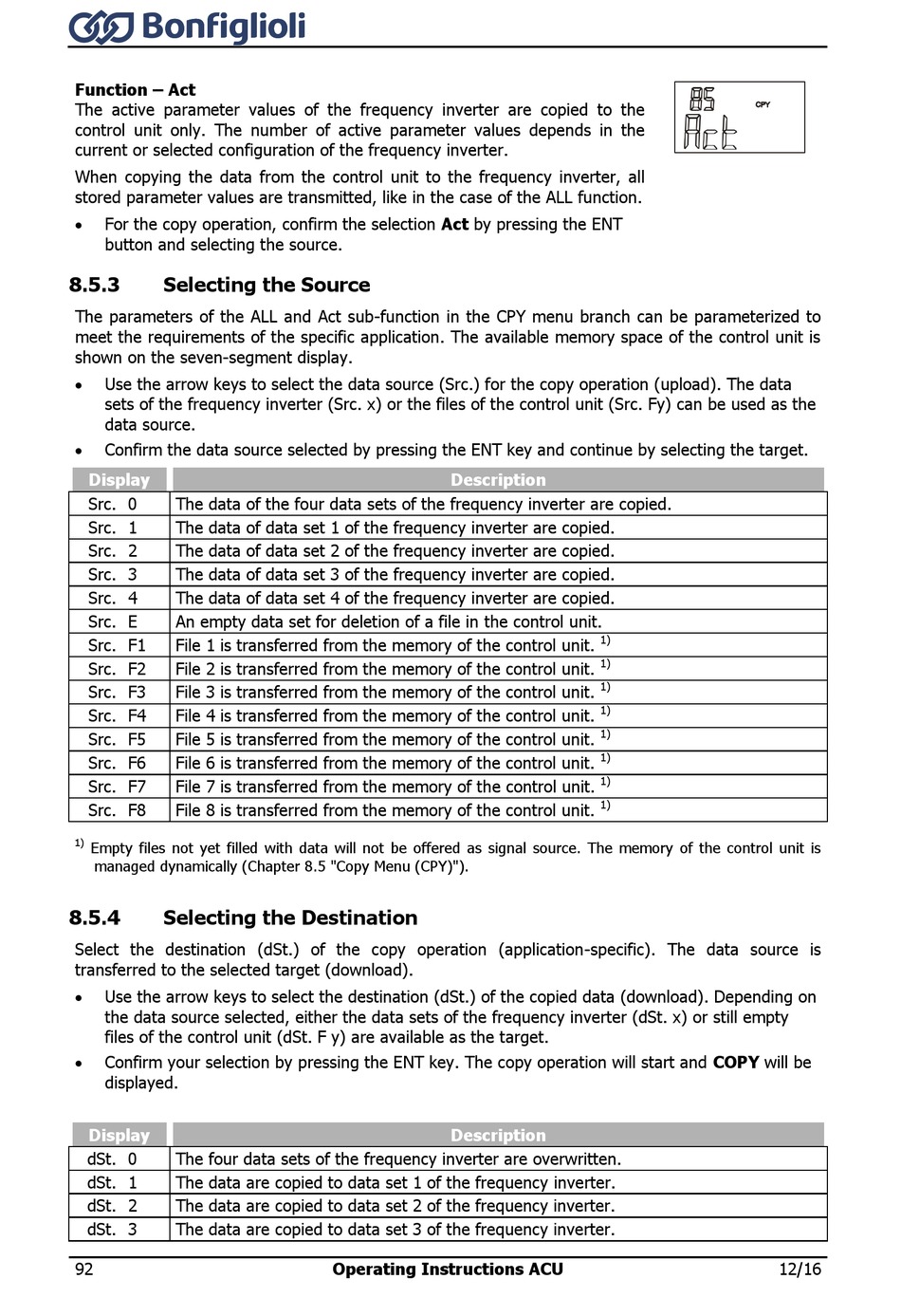

Function – Act
The active parameter values of the frequency inverter are copied to the
control unit only. The number of active parameter values depends in the
current or selected configuration of the frequency inverter.
When copying the data from the control unit to the frequency inverter, all
stored parameter values are transmitted, like in the case of the ALL function.
 For the copy operation, confirm the selection Act by pressing the ENT
button and selecting the source.
8.5.3

Selecting the Source

The parameters of the ALL and Act sub-function in the CPY menu branch can be parameterized to
meet the requirements of the specific application. The available memory space of the control unit is
shown on the seven-segment display.
 Use the arrow keys to select the data source (Src.) for the copy operation (upload). The data
sets of the frequency inverter (Src. x) or the files of the control unit (Src. Fy) can be used as the
data source.
 Confirm the data source selected by pressing the ENT key and continue by selecting the target.
Display
Src. 0 The data of the four data sets of the frequency inverter are copied.
Src. 1 The data of data set 1 of the frequency inverter are copied.
Src. 2 The data of data set 2 of the frequency inverter are copied.
Src. 3 The data of data set 3 of the frequency inverter are copied.
Src. 4 The data of data set 4 of the frequency inverter are copied.
Src. E An empty data set for deletion of a file in the control unit.
Src. F1 File 1 is transferred from the memory of the control unit.
Src. F2 File 2 is transferred from the memory of the control unit.
Src. F3 File 3 is transferred from the memory of the control unit.
Src. F4 File 4 is transferred from the memory of the control unit.
Src. F5 File 5 is transferred from the memory of the control unit.
Src. F6 File 6 is transferred from the memory of the control unit.
Src. F7 File 7 is transferred from the memory of the control unit.
Src. F8 File 8 is transferred from the memory of the control unit.
1)
Empty files not yet filled with data will not be offered as signal source. The memory of the control unit is
managed dynamically (Chapter 8.5 "Copy Menu (CPY)").
8.5.4

Selecting the Destination

Select the destination (dSt.) of the copy operation (application-specific). The data source is
transferred to the selected target (download).
 Use the arrow keys to select the destination (dSt.) of the copied data (download). Depending on
the data source selected, either the data sets of the frequency inverter (dSt. x) or still empty
files of the control unit (dSt. F y) are available as the target.

Confirm your selection by pressing the ENT key. The copy operation will start and COPY will be
displayed.
Display
dSt. 0 The four data sets of the frequency inverter are overwritten.
dSt. 1 The data are copied to data set 1 of the frequency inverter.
dSt. 2 The data are copied to data set 2 of the frequency inverter.
dSt. 3 The data are copied to data set 3 of the frequency inverter.
92
Description
Description
Operating Instructions ACU
1)
1)
1)
1)
1)
1)
1)
1)
12/16
