BONFIGLIOLI ACTIVE CUBE 201 Operating Instructions Manual page 70

X2

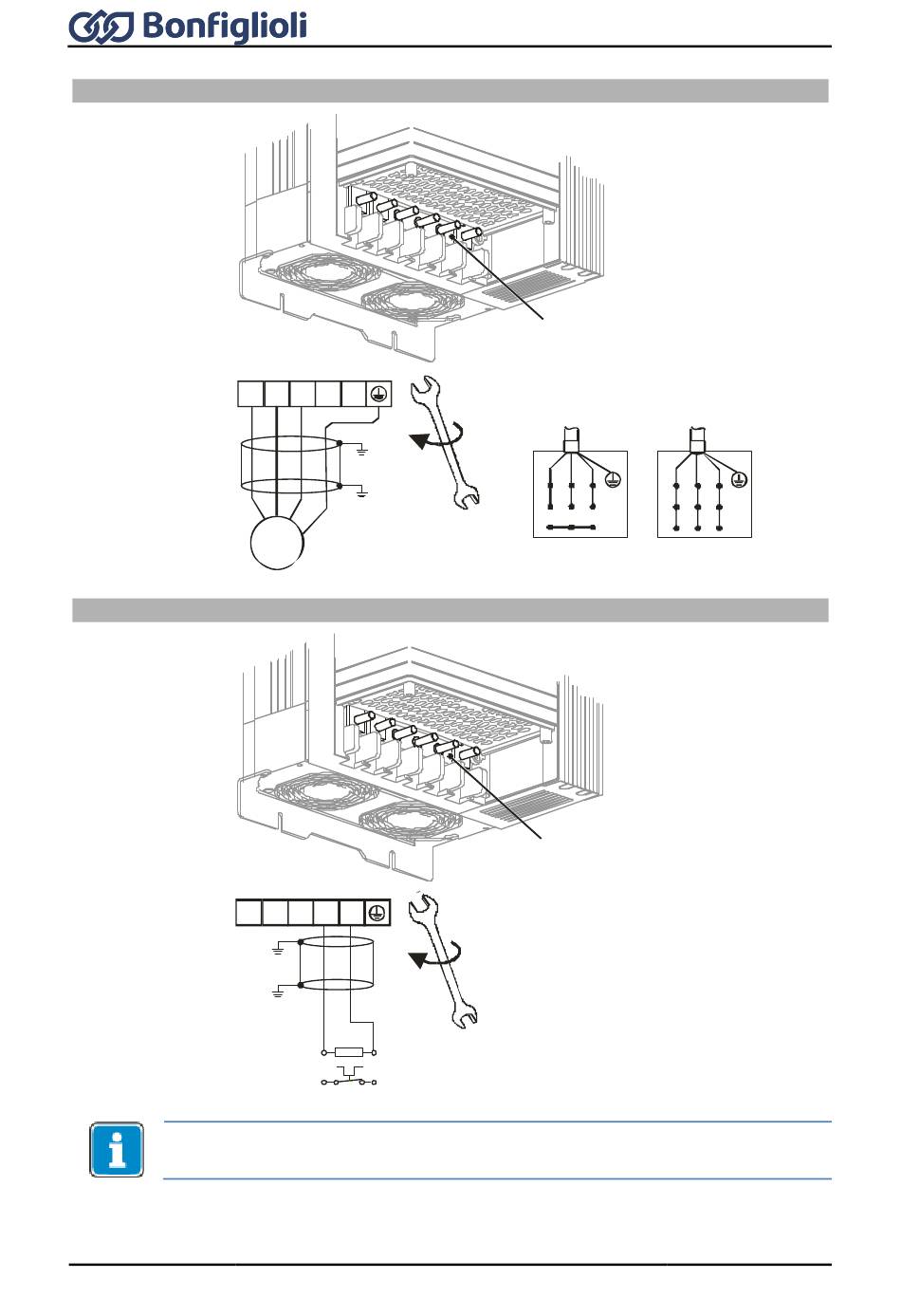

Connection of brake resistor with temperature switch
X2
U
Optionally, devices of this size are available without brake chopper. These devices are
designed without connecting terminals for the braking resistor.
70
Motor connection ACU 401 (37.0 to 65.0 kW)
U V W
Rb1 Rb2
M
3~
V W
Rb1 Rb2
R
b
Rb1 Rb2
T1 T2
Operating Instructions ACU
X2
37.0 kW ... 65.0 kW
threaded bolt M8x25
wire cross section up to 70 mm
8 Nm
70.8 lb-in
U V W
Star connection
X2
37.0 kW ... 65.0 kW
threaded bolt M8x25
Wire cross section up to 70 mm
8 Nm
70.8 lb-in
2
U V W
Delta connection
2
