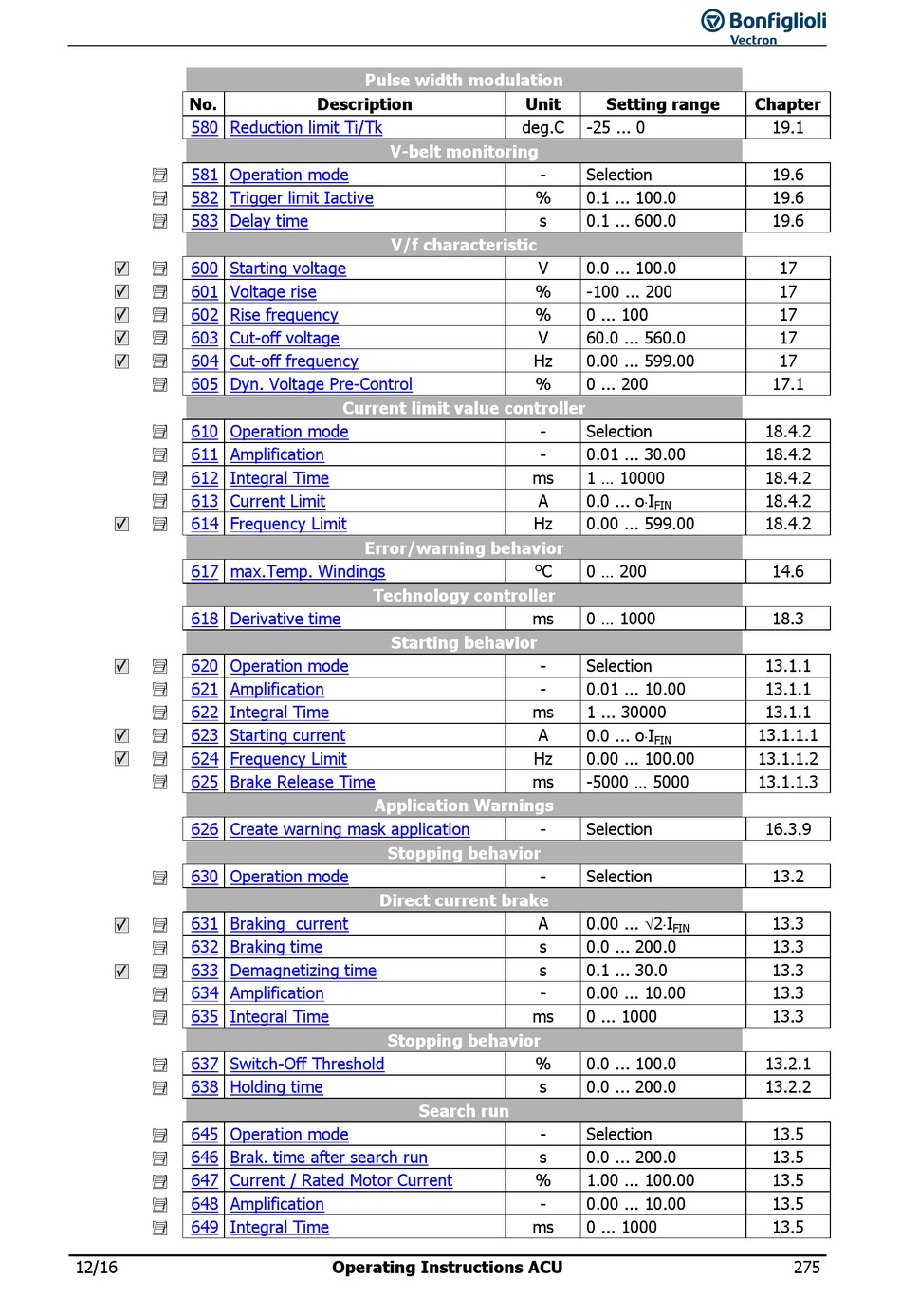

BONFIGLIOLI ACTIVE CUBE 201 Operating Instructions Manual page 275

No.
580 Reduction limit Ti/Tk
581 Operation mode
582 Trigger limit Iactive
583 Delay time
600 Starting voltage
601 Voltage rise
602 Rise frequency
603 Cut-off voltage
604 Cut-off frequency
605 Dyn. Voltage Pre-Control
610 Operation mode
611 Amplification
612 Integral Time
613 Current Limit
614 Frequency Limit
617 max.Temp. Windings
618 Derivative time
620 Operation mode
621 Amplification
622 Integral Time
623 Starting current
624 Frequency Limit
625 Brake Release Time
626 Create warning mask application
630 Operation mode
631 Braking current
632 Braking time
633 Demagnetizing time
634 Amplification
635 Integral Time
637 Switch-Off Threshold
638 Holding time
645 Operation mode
646 Brak. time after search run
647 Current / Rated Motor Current
648 Amplification
649 Integral Time
12/16
Pulse width modulation
Description
V-belt monitoring
V/f characteristic
Current limit value controller
Error/warning behavior
Technology controller
Starting behavior
Application Warnings
Stopping behavior
Direct current brake
Stopping behavior
Search run
Operating Instructions ACU
Unit Setting range
deg.C -25 ... 0
- Selection
% 0.1 ... 100.0
s 0.1 ... 600.0
V 0.0 ... 100.0
% -100 ... 200
% 0 ... 100
V 60.0 ... 560.0
Hz 0.00 ... 599.00
% 0 ... 200
- Selection
- 0.01 ... 30.00
ms 1 ... 10000
A 0.0 ... oI
FIN
Hz 0.00 ... 599.00
°C 0 ... 200
ms 0 ... 1000
- Selection
- 0.01 ... 10.00
ms 1 ... 30000
A
0.0 ... oI
FIN
Hz 0.00 ... 100.00
ms -5000 ... 5000
- Selection
- Selection
A 0.00 ... 2I
FIN
s 0.0 ... 200.0
s 0.1 ... 30.0
- 0.00 ... 10.00
ms 0 ... 1000
% 0.0 ... 100.0
s 0.0 ... 200.0
- Selection
s 0.0 ... 200.0
% 1.00 ... 100.00
- 0.00 ... 10.00
ms 0 ... 1000
Chapter
19.1
19.6
19.6
19.6
17
17
17
17
17
17.1
18.4.2
18.4.2
18.4.2
18.4.2
18.4.2
14.6
18.3
13.1.1
13.1.1
13.1.1
13.1.1.1
13.1.1.2
13.1.1.3
16.3.9
13.2
13.3
13.3
13.3
13.3
13.3
13.2.1
13.2.2
13.5
13.5
13.5
13.5
13.5
275
