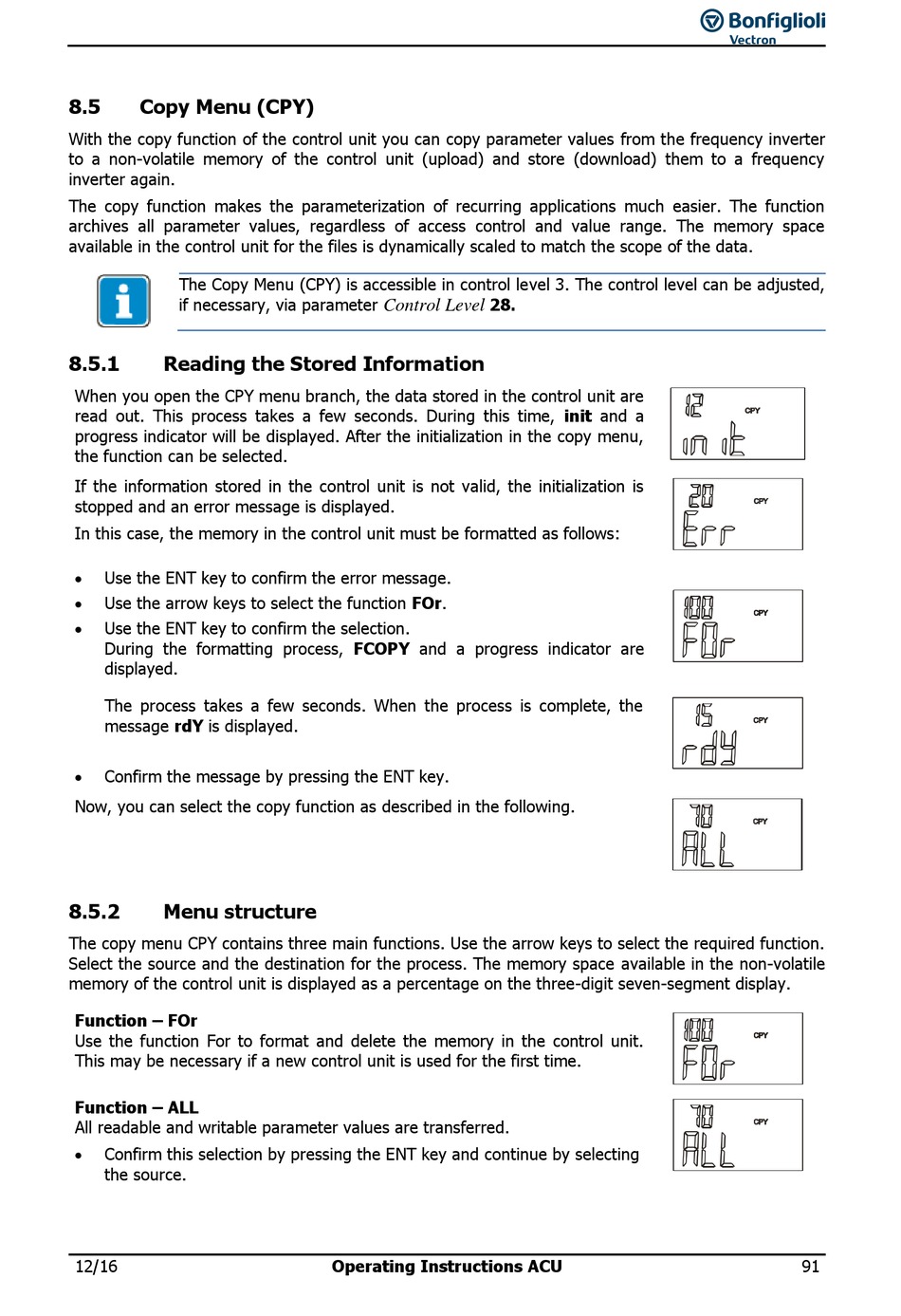

Copy Menu (CPY)

With the copy function of the control unit you can copy parameter values from the frequency inverter
to a non-volatile memory of the control unit (upload) and store (download) them to a frequency
inverter again.
The copy function makes the parameterization of recurring applications much easier. The function
archives all parameter values, regardless of access control and value range. The memory space
available in the control unit for the files is dynamically scaled to match the scope of the data.
The Copy Menu (CPY) is accessible in control level 3. The control level can be adjusted,
if necessary, via parameter
8.5.1

Reading the Stored Information

When you open the CPY menu branch, the data stored in the control unit are
read out. This process takes a few seconds. During this time, init and a
progress indicator will be displayed. After the initialization in the copy menu,
the function can be selected.
If the information stored in the control unit is not valid, the initialization is
stopped and an error message is displayed.
In this case, the memory in the control unit must be formatted as follows:
 Use the ENT key to confirm the error message.

Use the arrow keys to select the function FOr.
 Use the ENT key to confirm the selection.
During the formatting process, FCOPY and a progress indicator are
displayed.
The process takes a few seconds. When the process is complete, the
message rdY is displayed.
 Confirm the message by pressing the ENT key.
Now, you can select the copy function as described in the following.
8.5.2

Menu structure

The copy menu CPY contains three main functions. Use the arrow keys to select the required function.
Select the source and the destination for the process. The memory space available in the non-volatile
memory of the control unit is displayed as a percentage on the three-digit seven-segment display.
Function – FOr
Use the function For to format and delete the memory in the control unit.
This may be necessary if a new control unit is used for the first time.
Function – ALL
All readable and writable parameter values are transferred.
 Confirm this selection by pressing the ENT key and continue by selecting
the source.
