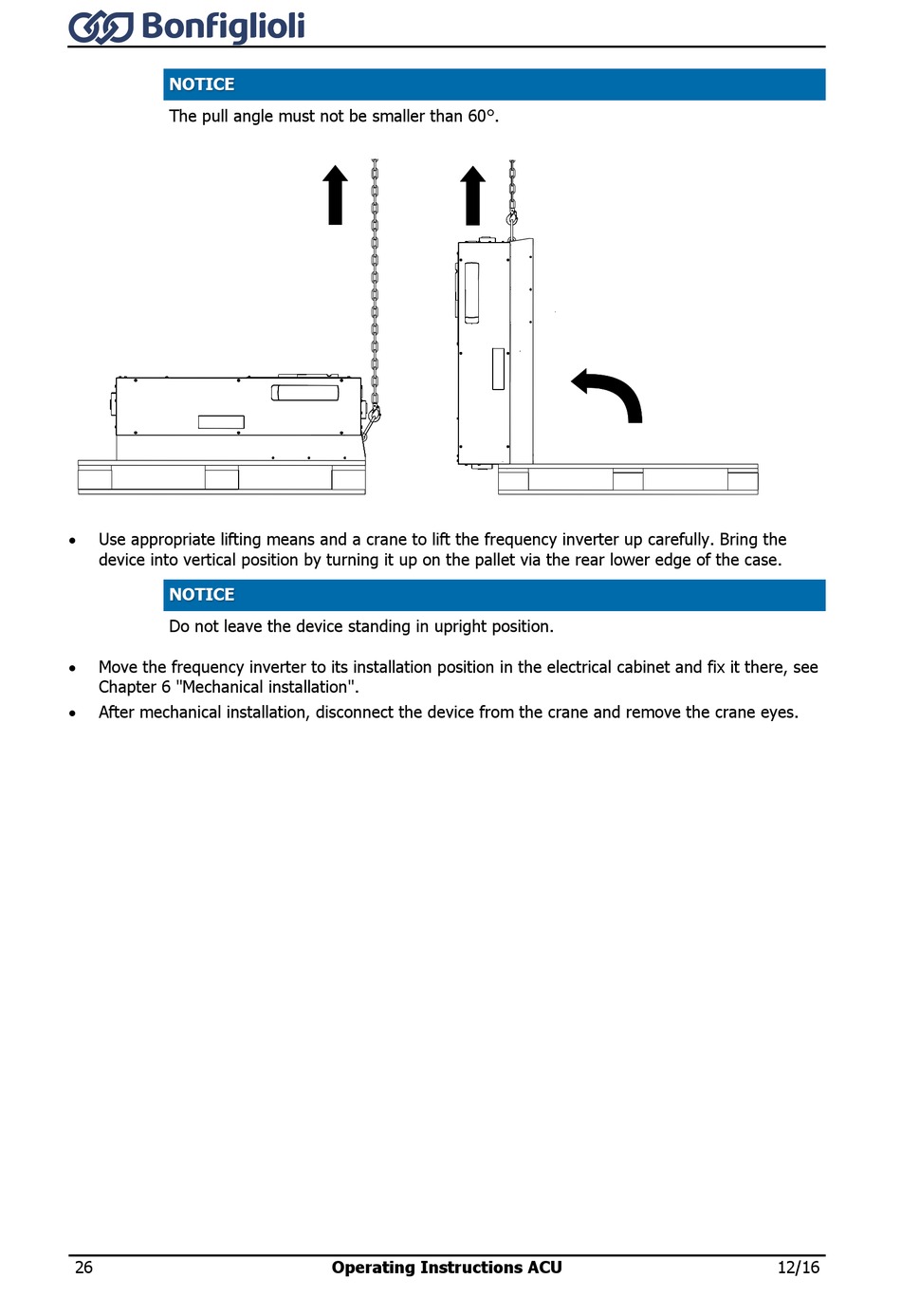

BONFIGLIOLI ACTIVE CUBE 201 Operating Instructions Manual page 26

NOTICE
The pull angle must not be smaller than 60°.
 Use appropriate lifting means and a crane to lift the frequency inverter up carefully. Bring the
device into vertical position by turning it up on the pallet via the rear lower edge of the case.
NOTICE
Do not leave the device standing in upright position.
 Move the frequency inverter to its installation position in the electrical cabinet and fix it there, see
Chapter 6 "Mechanical installation".
 After mechanical installation, disconnect the device from the crane and remove the crane eyes.
