Creat ing a s afety master
1. Create an F-CPU, e.g. CPU 317F-2, and a drive, e.g. SINAMICS S120 with CU320-2, in
accordance with the hardware installed in HW Config.
To do this, start SIMATIC Manager and create a new project.

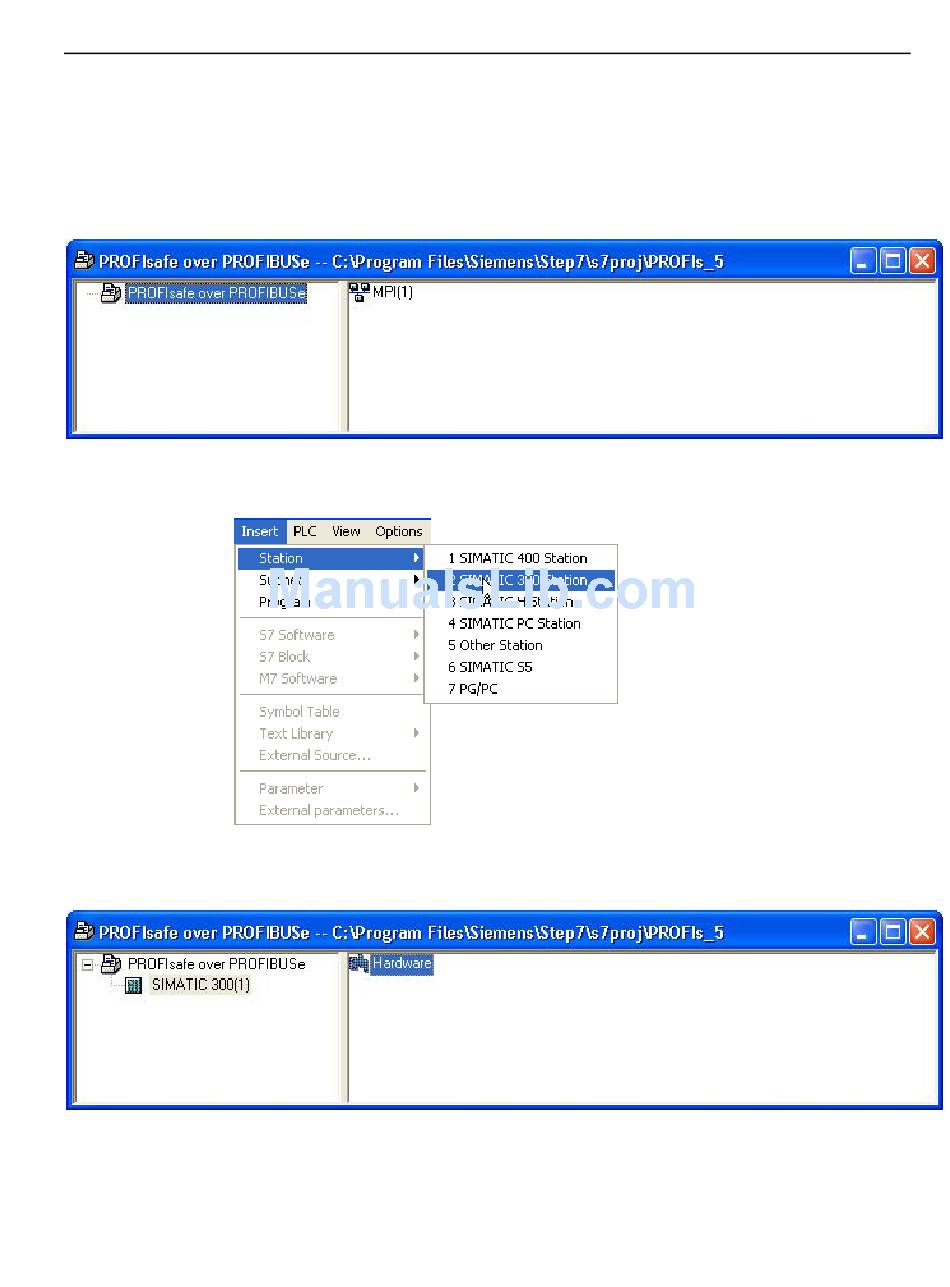

Image 6-24 Creating a new project
2. Create a SIMATIC S300 Station under "Insert".
Image 6-25
3. Double-click "SIMATIC S300(1)" and then "Hardware" to open the "HW Config" tool.
Image 6-26 Calling HW Config
Safety Integrated
Function Manual, (FHS), 07/2016, 6SL3097-4AR00-0BP6
Creating a new station
Commissioning
6.10 PROFIsafe communication
