Setting the forced checking procedure (test stop)

Requirement
You are online with STARTER or Startdrive online.
Procedure with STARTER and Startdrive
To set the forced checking procedure (test stop) of the basic functions, proceed as follows:

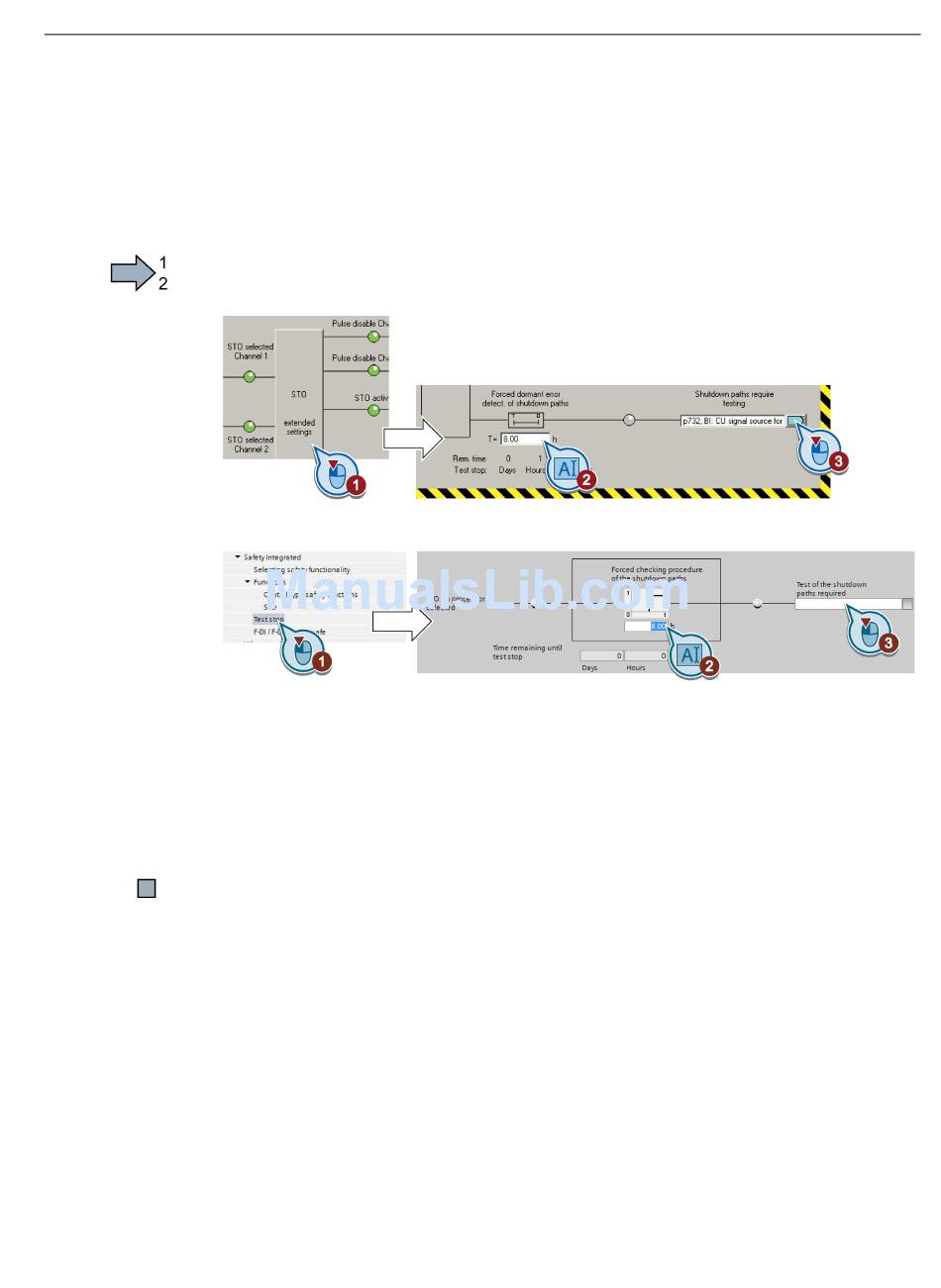

1. Select the screen form for setting the forced checking procedure.
Image 6-71
Image 6-72
2. Set the monitoring time to a value to match your application.
3. Using this signal, the inverter signals that a forced checking procedure (test stop) is
required.
Interconnect this signal with an inverter signal of your choice.
4. Only applies to STARTER: Close the screen form.
You have set the forced checking procedure (test stop) for the basic functions.
