3. Press the Content key and choose the PacketTx image.
Alternatively, to select the image using the command line interface, enter the following
commands:
IMGP /tffs0/Library/Images
IMGL PacketTx
IMGU

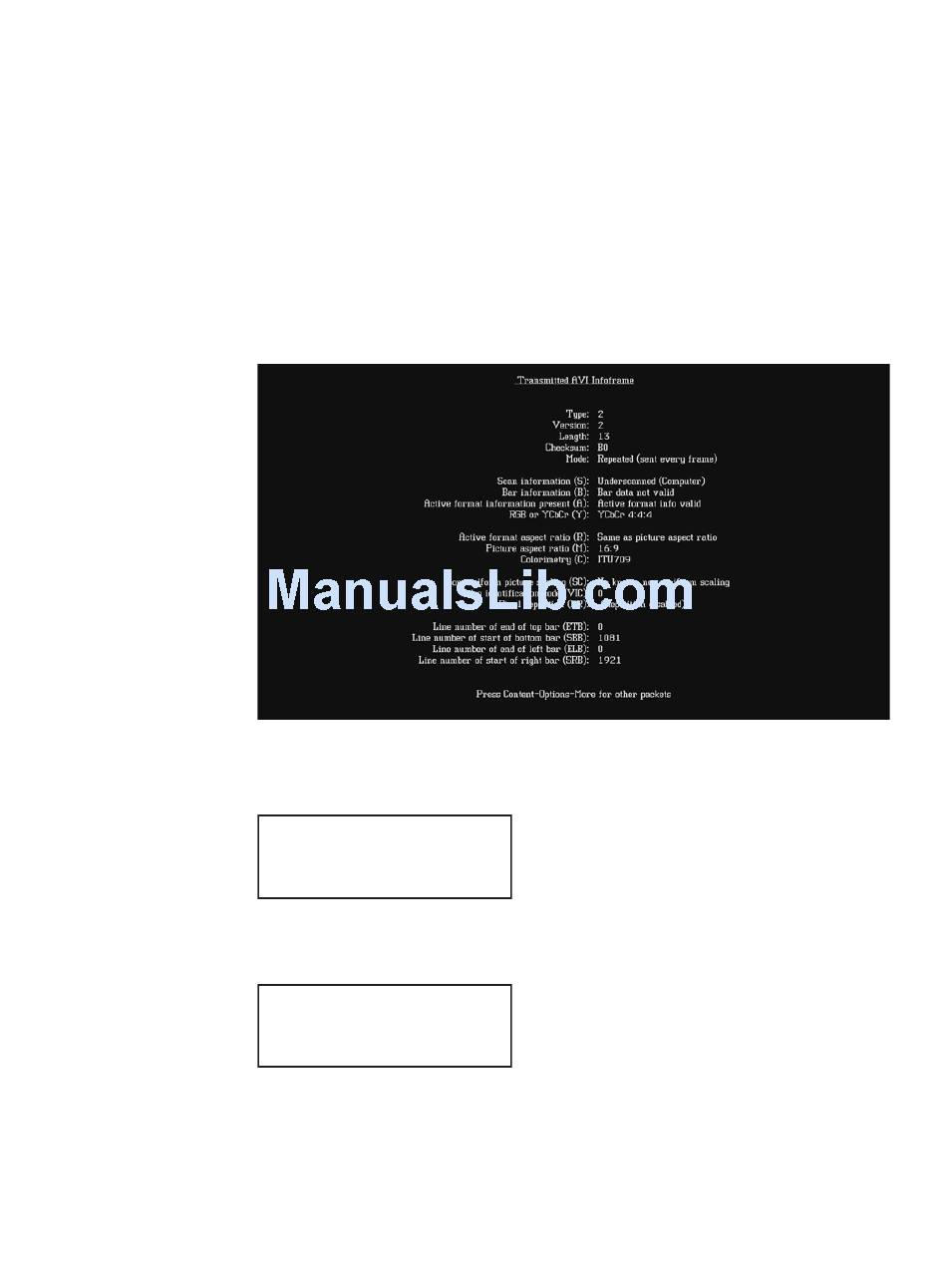

The PacketTx image appears on the connected HDMI display. The image shows the
current settings for the AVI InfoFrame output.
4. Enable and view image versions for the PacketTx image as follows:
a. Press the Options key. The following menu appears on the 882's display:
-More
-NoGamma
-Noise
b. Choose the More item by pressing the adjacent soft key until a + and Rendition
appears next to the item.
+More Rendition: 000
-NoGamma
-Noise
c. Press the + key to advance through the image versions.
// Loads the DMT0660 format
// Activates the DMT0660 format
// Set image path to 882 memory
// Loads the PacketTx image
// Activates the PacketTX image
Red+
Green+
Blue+
Red+
Green+
Blue+
