Quantum Data 881 User Manual page 111

882 Video Test Instrument User Guide (Rev A.35)

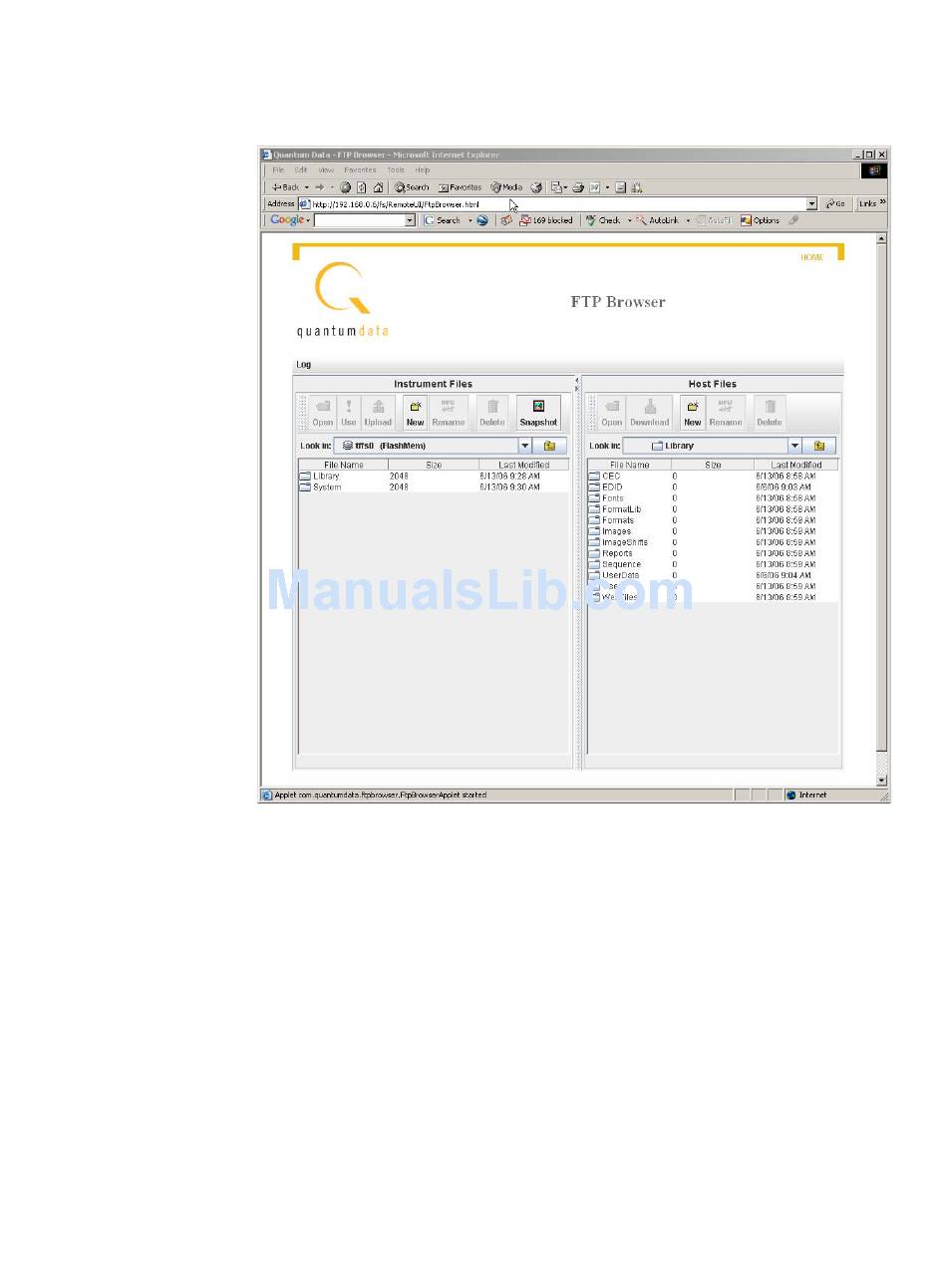

Instrument Files area shows the files stored on the generator. The Host Files
area shows the files stored on the PC.
c. In the Instrument Files area, set the destination folder to the PC card. To do this,
select card0 for the generator's PC card.
d. In the Instrument Files area, upload (copy) any custom generator files on the PC
card you want to save to a backup folder on the PC.
e. In the Instrument Files area, delete all files stored on the PC card.
f. In the Host Files area, locate and select the new release files (System and Library
directories) to transfer to the PC card.
g. In the Host Files area, click Download. The Transfer Files dialog box appears.
h. Verify that the source file or folder and the destination folder are correct, and then
click OK. The Copying Files dialog box appears showing the status of the
operation.
i. When transfer is complete, click Done.
99
