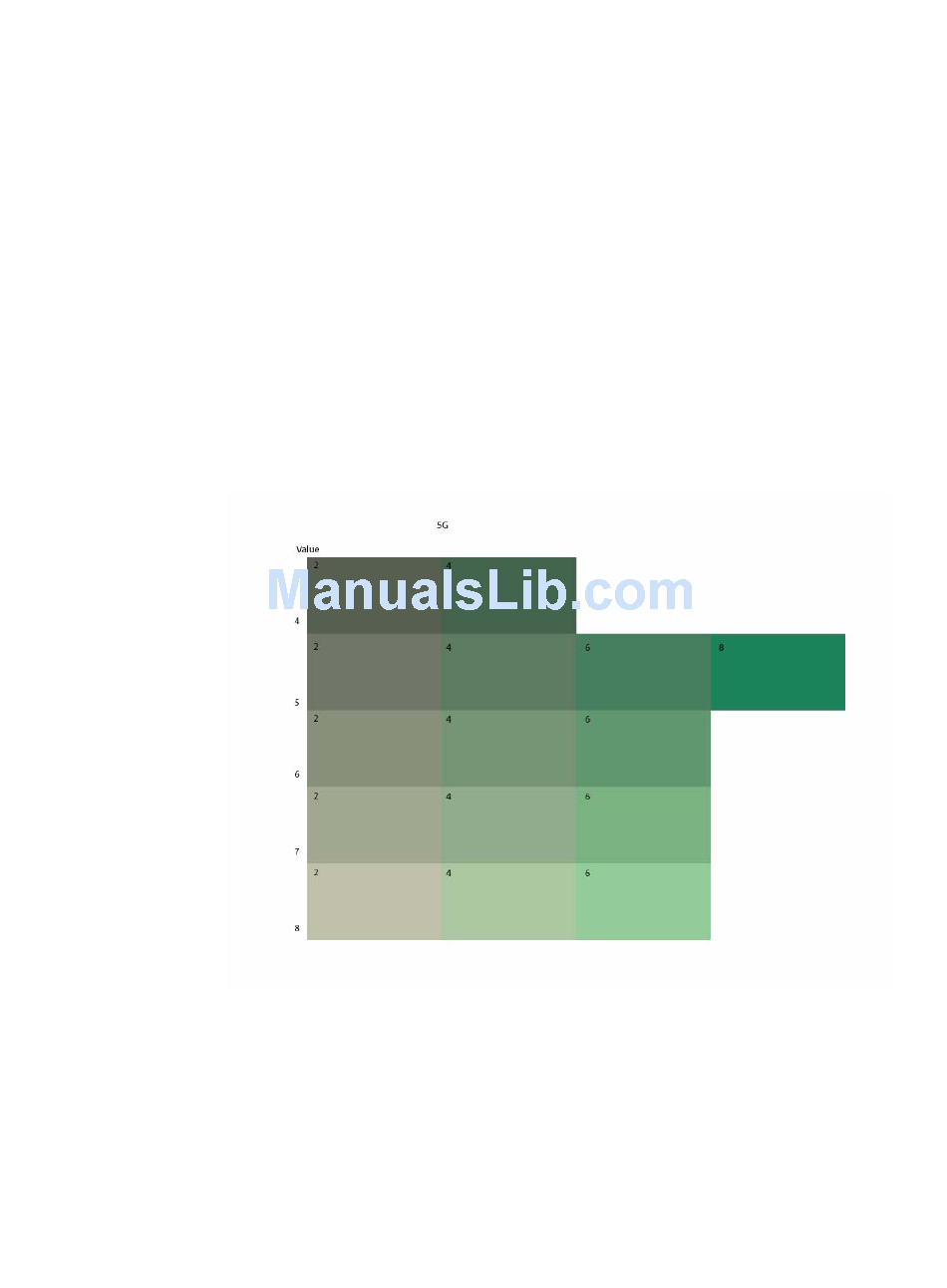

The MnsCLR Image is shown below. The example below shows only one of the 40
subimages. There are a series of these images (40 in total) that are accessible as sub
images through the 882E front panel. Each hue in the MnslCLR image set has 4 sub hues,
labeled 2.5, 5, 7.5 and 10, that represent a hue as it traverses around the perimeter of the
diagram above and transitions into the adjacent hues. Each such sub image in the
MnslCLR image depicts the chroma and value variances of one of these sub hues. Each
sub image provides a color block for each chroma and value level for that sub hue. The
value varies along the vertical axis and the chroma varies along the horizontal axis.
Note: The image as shown in this User Guide is not representative of how it will actually
appear on an xvYCC display.
When examining this image on an xvYCC display the differences between adjacent colors
should be preceived to be the same. Note that this depends on how you have
implemented the feature. Typically if you see adjacent colors that look very similar or
strikingly different, then this indicates that the colors may not be represented properly on
the display.
