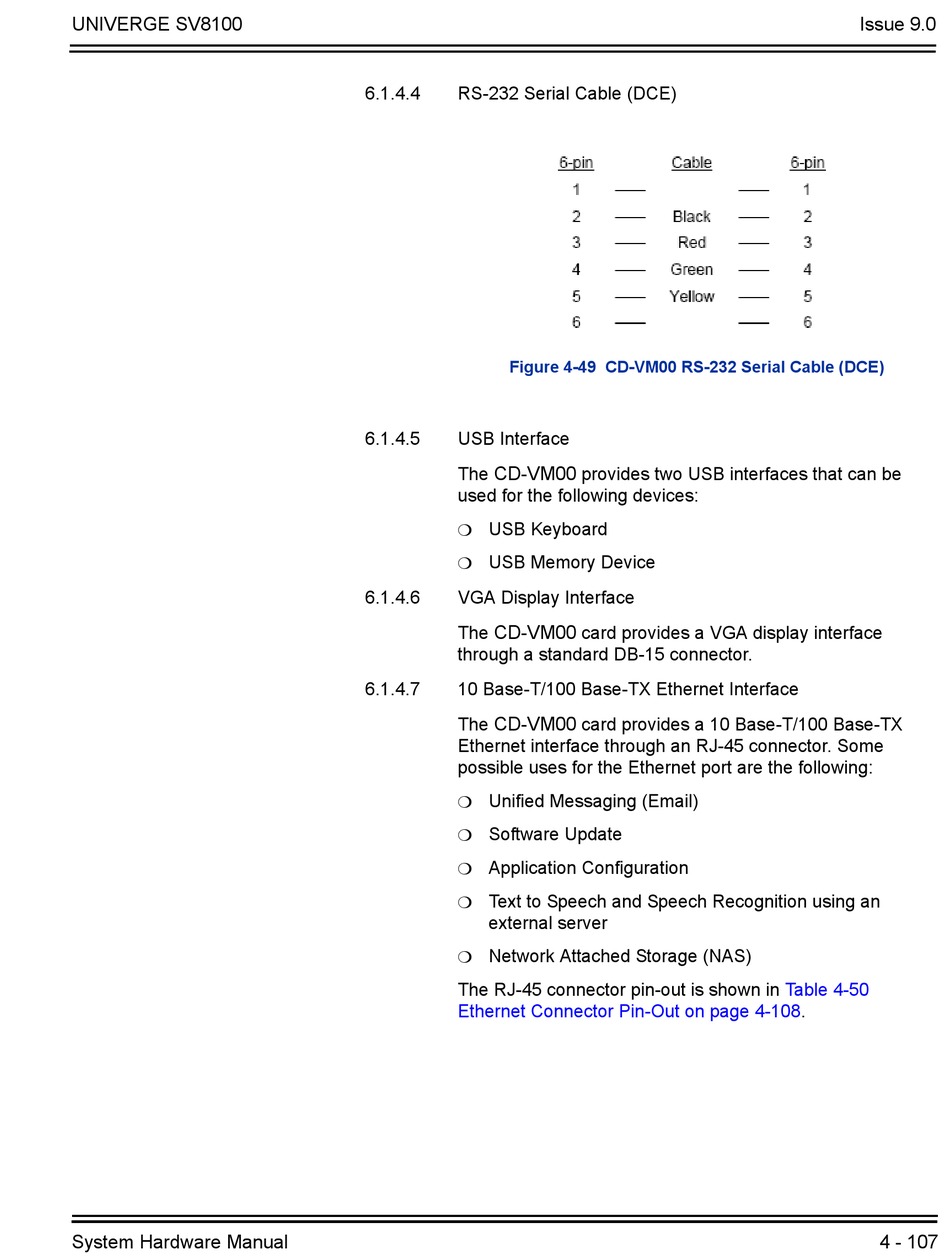

6.1.4.4 RS-232 Serial Cable (DCE)

Figure 4-49 CD-VM00 RS-232 Serial Cable (DCE)

6.1.4.5

USB Interface

The CD-VM00 provides two USB interfaces that can be
used for the following devices:
USB Keyboard

USB Memory Device

6.1.4.6

VGA Display Interface

The CD-VM00 card provides a VGA display interface
through a standard DB-15 connector.
6.1.4.7

10 Base-T/100 Base-TX Ethernet Interface

The CD-VM00 card provides a 10 Base-T/100 Base-TX
Ethernet interface through an RJ-45 connector. Some
possible uses for the Ethernet port are the following:
Unified Messaging (Email)

Software Update

Application Configuration

Text to Speech and Speech Recognition using an

external server
Network Attached Storage (NAS)

The RJ-45 connector pin-out is shown in
Ethernet Connector Pin-Out on page
