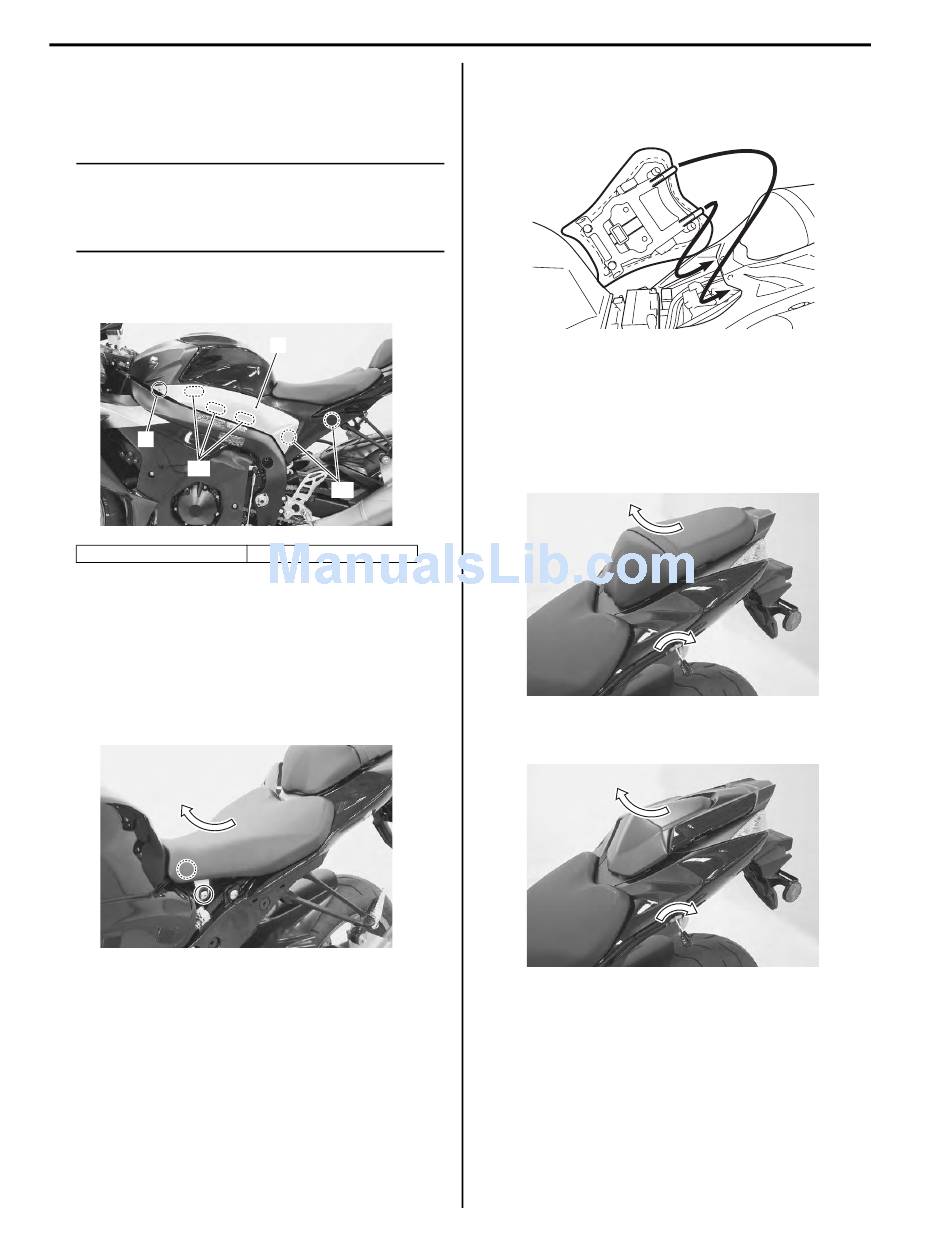

9D-6 Exterior Parts:

Exterior Parts Removal and Installation

Side Frame Cover

Removal
NOTE
The left and right side frame covers are
installed symmetrically and therefore the
removal/installation procedure for one side is
the same as that for the other side.
1) Remove the bolt (1).
2) Remove the side frame cover (2).
1
"A"
"A": Velcro fastening
Installation
Installation is in the reverse order of removal.
Front Seat
Removal
1) Remove the side frame covers.
2) Remove the front seat by removing the bolts.
email: info@motomatrix.co.uk / www.motomatrix.co.uk
B947H19406011
2
"B"
I947H1940006-02
"B": Bushing
I947H1940007-01
Installation
1) Slide the seat hooks into the seat hook retainers on
the frame and tighten the bolts.
2) Install the side frame covers.

Rear Seat / Seat Tail Cover

Removal
Remove the rear seat or seat tail cover with the ignition
key.
Rear Seat
Seat Tail Cover
I947H1940008-01
I947H1940009-01
I947H1940010-01
