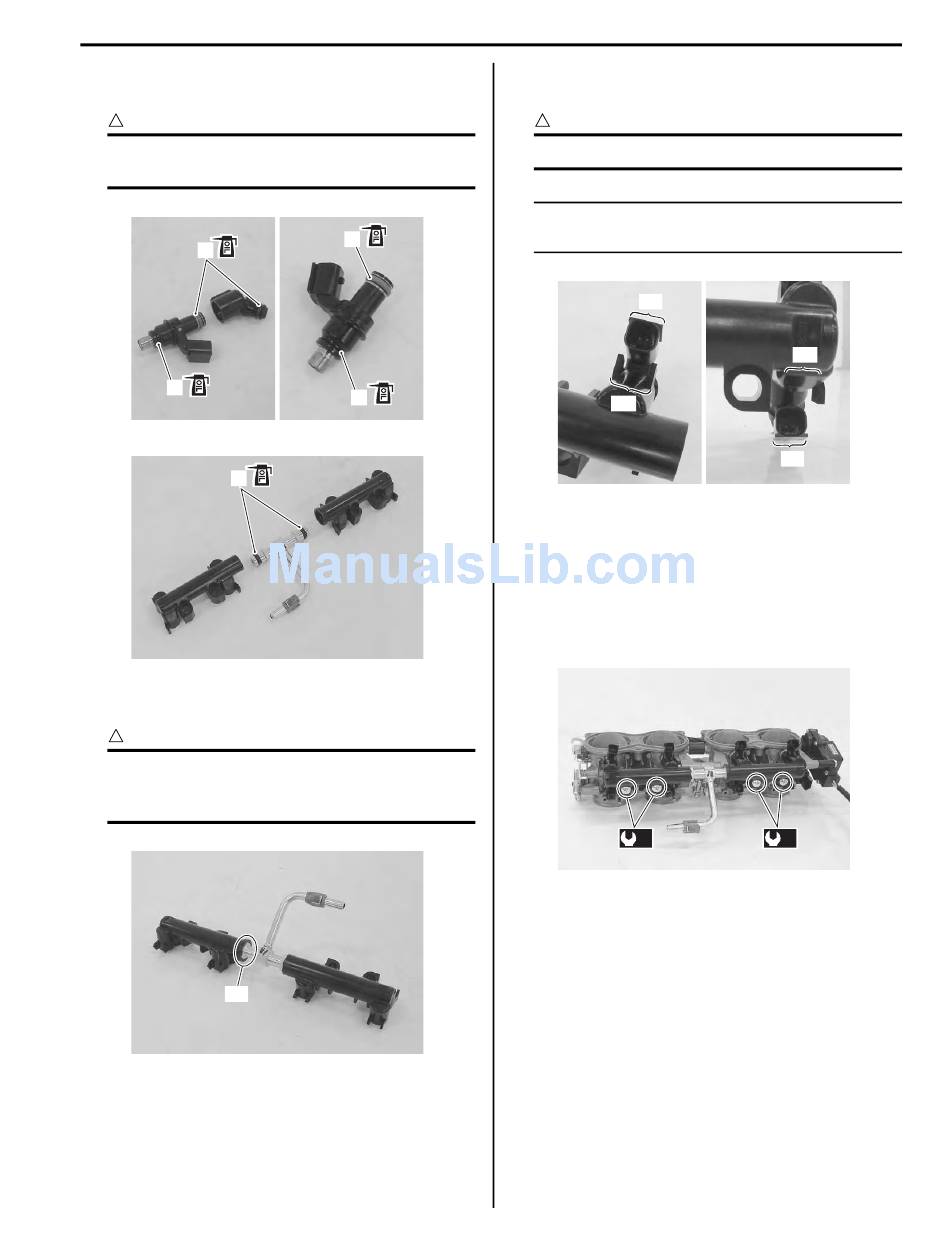

• Apply thin coat of engine oil to the new O-rings (1) and
cushion seals (2).
CAUTION
!
Replace the O-rings and cushion seals with
new ones.
1
2
1
• Assemble the fuel delivery pipes so the T-joint is set in
proper angle as shown in the figure.
CAUTION
!
Be careful not to twist the fuel delivery pipes
and T-joint when installing them, or joint part
"E" of the fuel delivery pipe may get damage.
"E"
email: info@motomatrix.co.uk / www.motomatrix.co.uk
• Install each fuel injector by pushing it straight to the
delivery pipe.
1
2
I947H1140022-01
• Install the fuel delivery pipe assembly to the throttle
body.
• Tighten the fuel delivery pipe mounting screws to the
specified torque.
Tightening torque
Fuel delivery pipe mounting screw (b): 3.5 N·m (
0.35 kgf-m, 2.5 lbf-ft)
I947H1140023-01
• Connect the hoses properly. Refer to "Throttle Body
Construction" (Page 1D-9).
I947H1140024-01
Engine Mechanical:
CAUTION
!
Never turn the injector while pushing it.
NOTE
Align the coupler "F" of injector with boss
"G" of the delivery pipe.
"F"
"G"
(b)
1D-15
"G"
"F"
I947H1140025-01
(b)
I947H1140026-01
