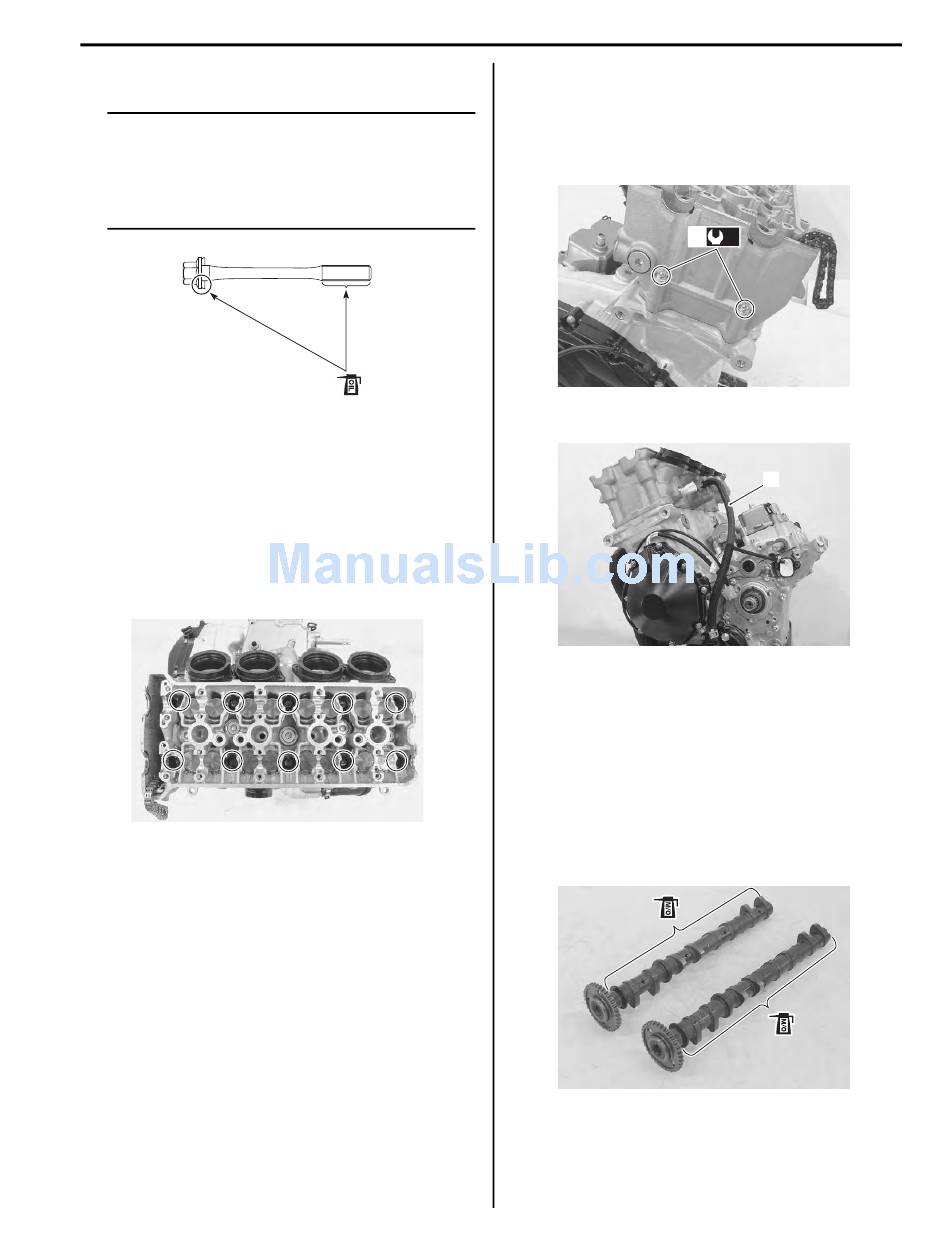

• Place the cylinder head on the gasket.
NOTE
• When installing the cylinder head, keep the
cam chain taut.
• Apply engine oil to the washer and thread
portion of the cylinder head bolts (M10)
before tightening them.
• Tighten the cylinder head bolts (M10) to the specified
torque with a torque wrench sequentially and
diagonally.
• Additionally tighten the cylinder head bolts with the
specified angles diagonally using an angular torque
gauge.
Tightening torque
Cylinder head bolt (M10): 31 N⋅m (3.1 kgf-m, 22.5
lbf-ft) then turn in 1/6 (60°) turn
email: info@motomatrix.co.uk / www.motomatrix.co.uk
• After firmly tightening the cylinder head bolts (M10),
tighten the cylinder head bolts (M6) (2).
Tightening torque
Cylinder head bolt (M6) (a): 10 N·m (1.0 kgf-m, 7.0
lbf-ft)
I823H1140063-01
• Connect the water bypass hose (3).
Camshaft
• The camshafts are identified by the embossed letters.
IN: Intake camshaft
EX: Exhaust camshaft
• Before placing the camshafts on the cylinder head,
apply molybdenum oil to their journals, cam faces and
holders.
I947H1140043-01
M/O: Molybdenum oil (MOLYBDENUM OIL
SOLUTION)
Engine Mechanical: 1D-29
2
(a)
I947H1140044-01
3
I947H1140045-01
I947H1140046-01
