Mitsubishi GOT1000 GT15 User Manual page 515

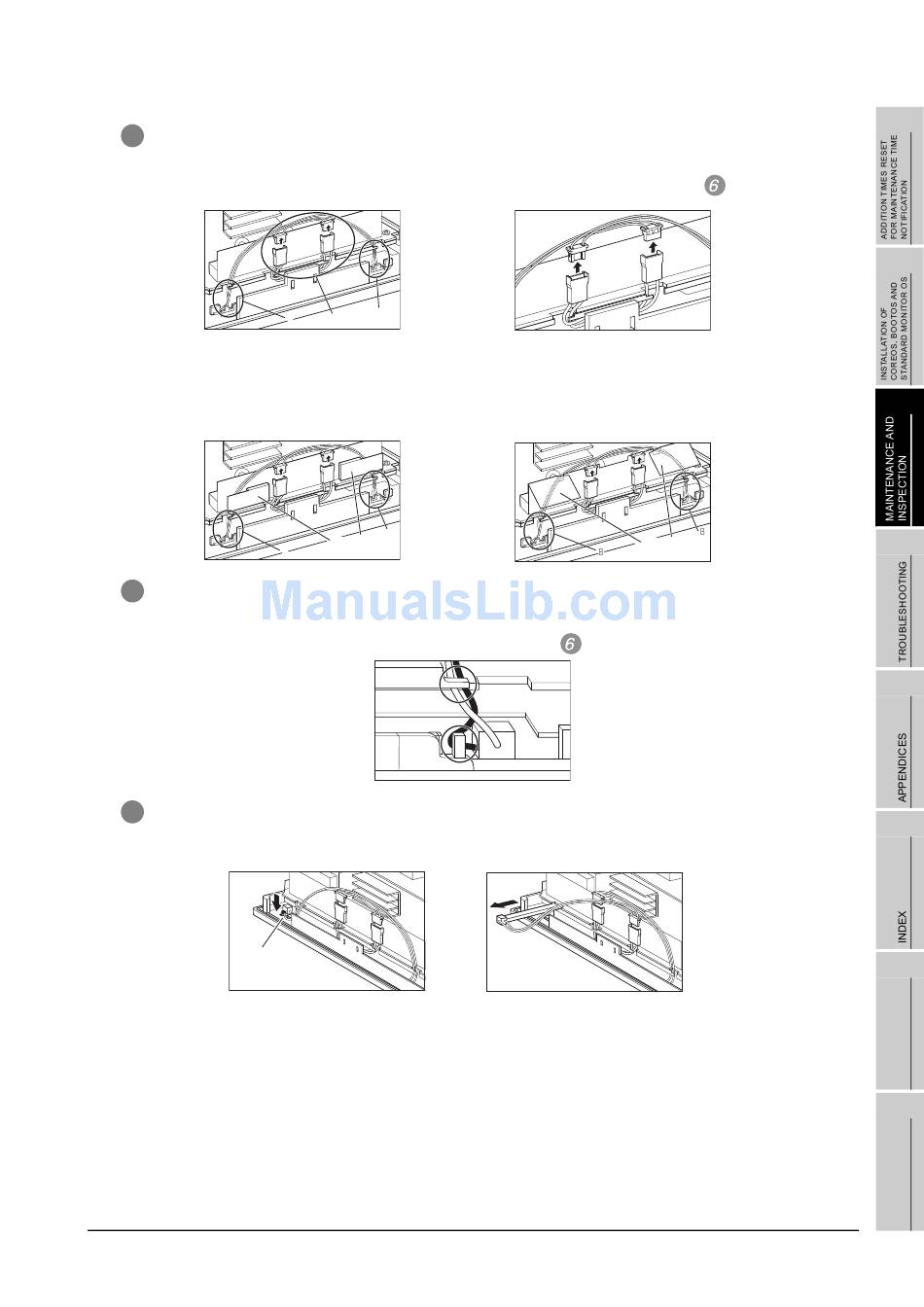

6 Disconnect the cable connector of the upper (H01) backlight and the cable connector of the lower (H02)
backlight from the GOT side connectors.
B
When the GOTs with the following hardware versions are used, remove the cables from the insulation
sheets for protecting cables.
• GT1565-VTBA(Hardwear version W to AY)
• GT1565-VTBD(Hardwear version N to AL)
B
7 Remove the cables of the upper connector (H01) from the 2 slits (black).
Similarly, remove the cables of the upper connector (H02) from the 2 slits (black).
8 Press the upper backlight fixing latch (black) with your finger, and pull out the backlight to the left.
Similarly, press the lower backlight fixing latch (black) with your finger, and pull out the backlight to the
left.
Latch
(Expanded figure of part A in
B
A
• GT1565-VTBA(Hardwear version AZ or later)
• GT1565-VTBD(Hardwear version AM or later)
B
Insulation sheets
for protecting cables
(Expanded figure of part B in
19.6.2 Replacement procedure of backlight
)
Insulation sheets
for protecting cables
)
19.6 Backlight Replacement
17
18
19
20
19
- 14
