(3) Screen save backlight
When [Screen save backlight] is set to [ON], using the system information function
(Backlight OFF output signal) can switch the backlight OFF from the controller.
When [Screen save backlight] is set to [OFF], the above signal has no effect on
the screen save backlight.
• GT Designer3 Version1 Screen Design Manual (Fundamentals)
(4.6 System Information Setting)
• GT Designer2 Version
(3.6 Setting System Information)

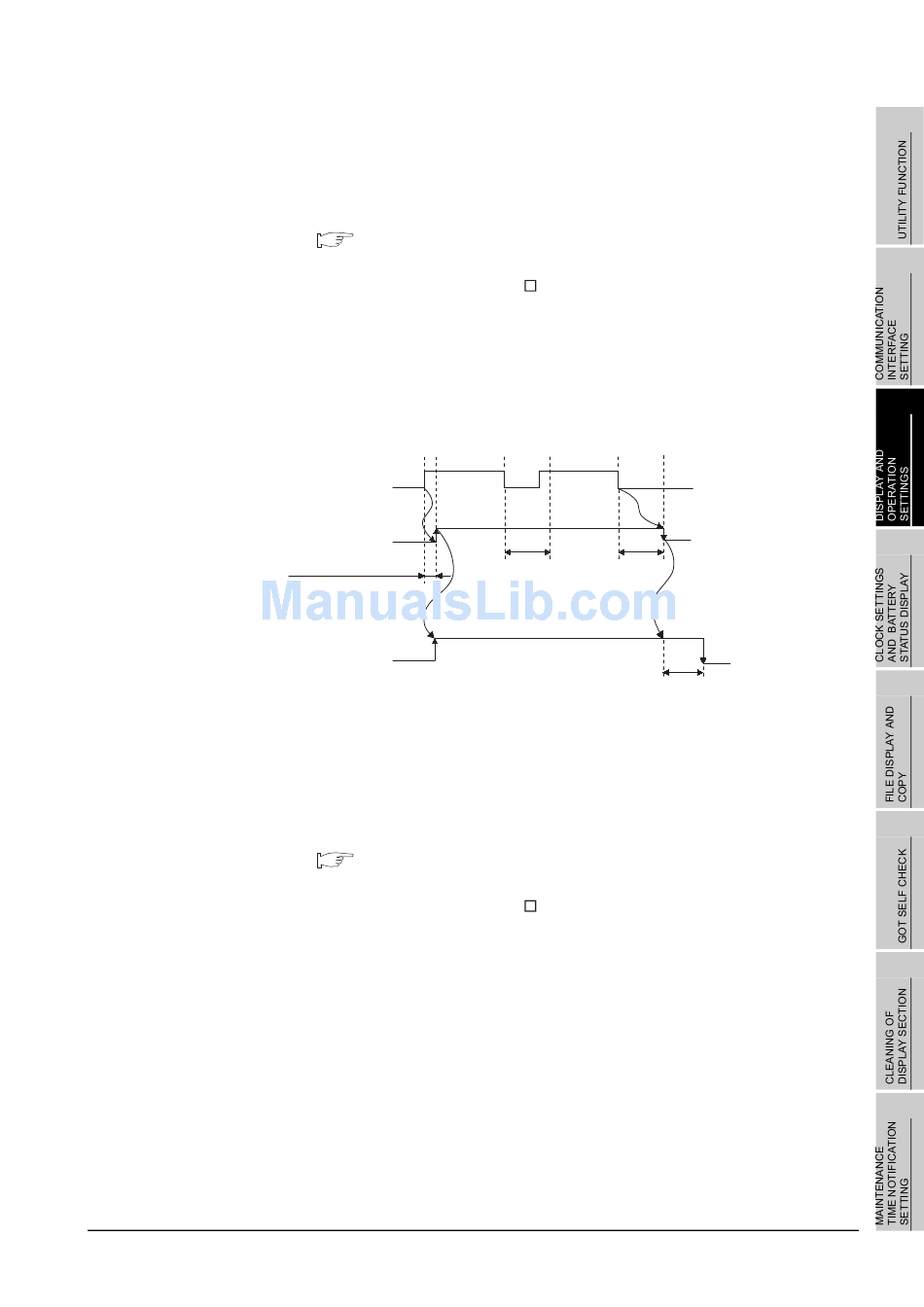

(4) Display control by human sensor (Specific to GT1595-X, GT1585V-S, GT1585-S)
The human sensor is a function that releases the GOT from the screen saving
mode without the necessity to touch the GOT.
This function releases the GOT from the screen saving mode when the operator
has come closer to the GOT.
Approach
Operator motion
[Sensor detect level]
Human Sensor
ON
Detection Signal
[System Signal 2-1.b5]
[Sensor detect time]
Screen saving mode released
Screen saving
When there is no operator around the GOT for the time set as "Sensor OFF delay", the "Human
Sensor Detection Signal" turns OFF.
When the time set as the "Screen save time" elapses after the "Human Sensor Detection Signal"
turns OFF, the GOT enters the screen saving mode.
Refer to the following manual for the Human Sensor Detection Signal (System
Signal 2-1.b5).
• GT Designer3 Version1 Screen Design Manual (Fundamentals)
(4.6 System Information Setting)
• GT Designer2 Version
(3.6 Setting System Information)
(5) When setting the human sensor to invalid (Specific to GT1595-X, GT1585V-S,
GT1585-S)
Even if setting the human sensor to invalid by the utility, the Human Sensor
Detection Signal (System Signal 2-1.b5) turns ON when the human sensor
detects human movement.
Unintended operation may result, therefore, if controlling the Forced Screen Saver
Enable Signal (System Signal 1-1.b1) and Human Sensor Detection Signal
associating them with each other by a sequence program, etc.
When setting the human sensor to invalid, review the related sequence program,
etc.
Screen Design Manual
Go away Approach Go away
[Sensor [Sensor
off delay] off delay]
[Screen save time]
Screen Design Manual
11.1 Display Settings
11.1.1 Display setting functions
OFF
Screen saving
mode active
