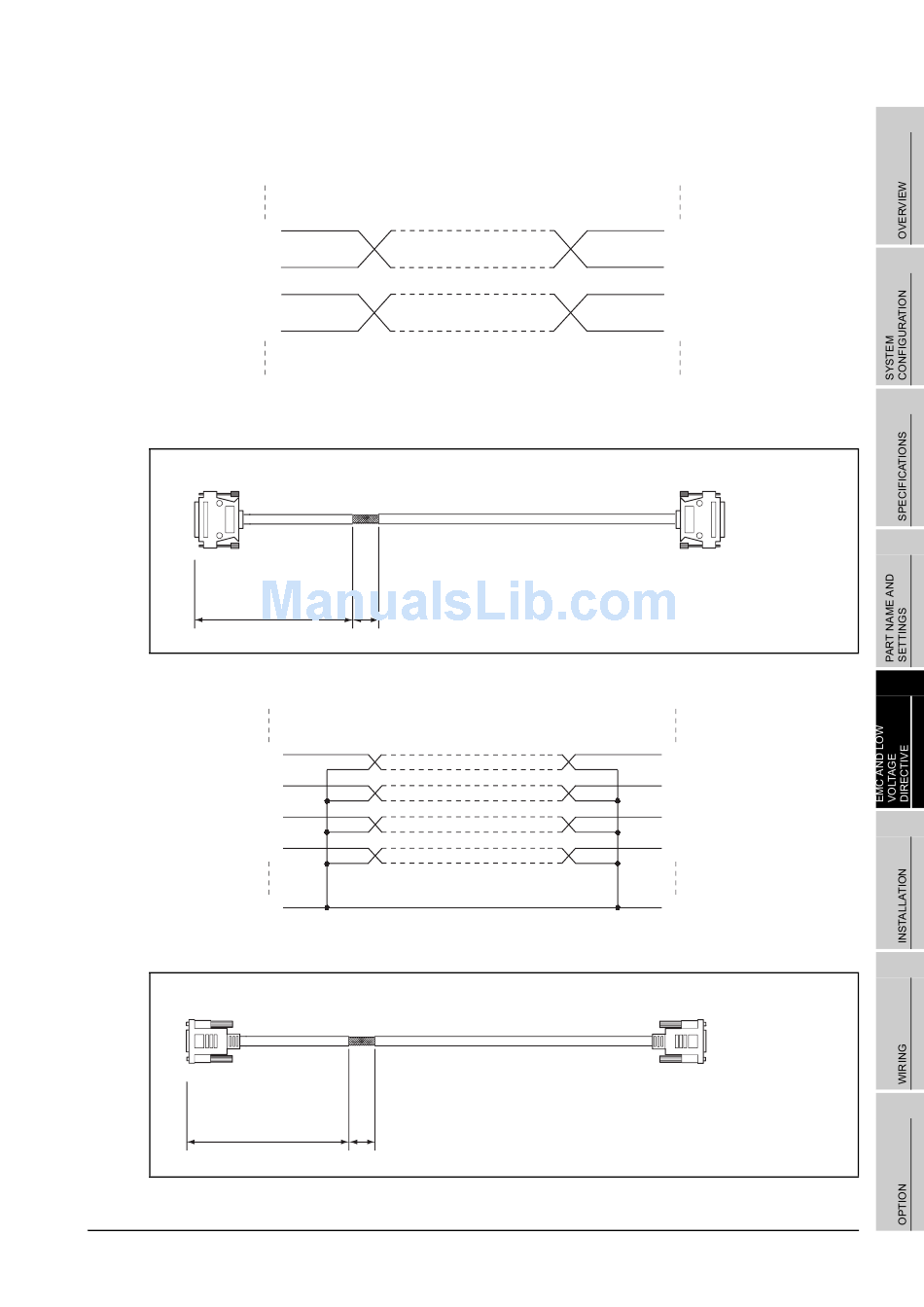

(a) For RS-422 / 485 cable

• Each signal wire (excluding SG and FG) should be made into a two power wires and

connected, then twisted.

• Make the SG wire more than two wires and connect.

• Peel the sheath (with the length shown below) of the created cable to expose the shield

braided wire for grounding. (For grounding with cable clamps (refer to Section 5.4.3))

(b) For RS-232 cable

• Use a twisted pair style for each signal wire (except SG, FG) with SG.

• Peel the sheath (with the length shown below) of the created cable to expose the shield

braided wire for grounding. (For grounding with cable clamps (refer to Section 5.4.3))

5.4 Precautions for Wiring/Connecting the EMC Directive-Compliant Product

5.4.2 Processing connection cables

Unit : mm (inch)

Unit : mm (inch)
