(2) For GT15-70ATT-87, GT15-50ATT-95W and GT15-50ATT-85

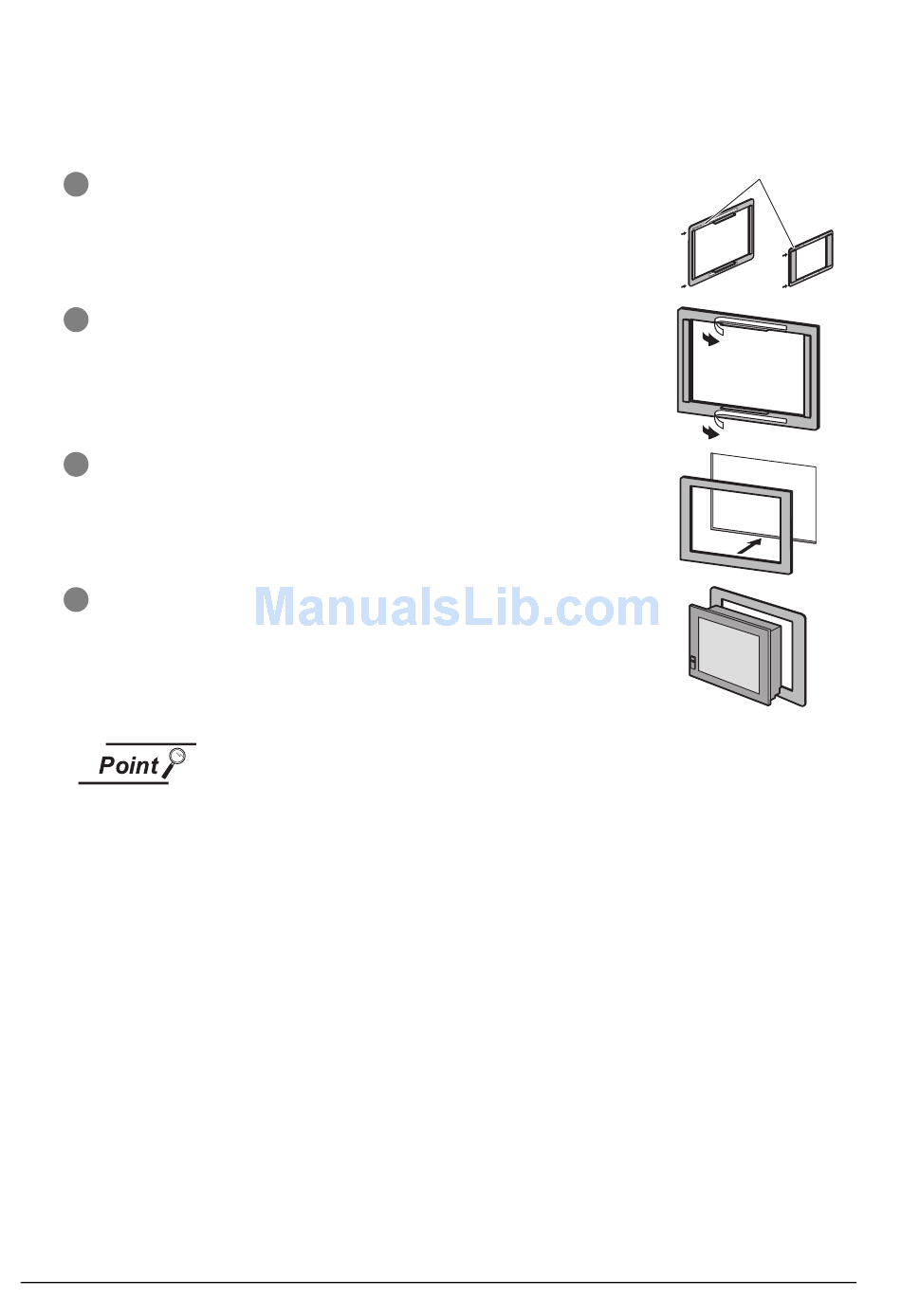

The following figures show an example of the GT15-70ATT-87 installarion.
Follow the same procedure for installing the other models.
1
The model is indicated on the attachment.
The position of the model indication does not affect the performance of
the attachment.
(Example of model indication)
2
Remove two-sided tapes from the rear face of the attachment.
3
Fix the attachment to fit the mounting hole on the control panel.
If the control panel is dirty, the attachment might fall, causing an injury.
Wipe the control panel, and then install the attachment.
4
Place the GOT into the attachment from the front, and fix it by tightening
the mounting screws included with the GOT in the torque range of 0.36
to 0.48N•m.
8
8.16 Attachment
- 60
8.16.2 Installing procedure
Precautions when the attachment is installed
• The attachment can be used when the mounting panel thickness is 2 to 3mm.
If the installation panel thickness exceeds 3mm, the GOT cannot be replaced by
using the attachment.
• Replacing GOT with the attachment does not compliant with the standard IP65,
IP67, NEMA4 of the waterproof and dustproof.
