call-progress-tone profiles
Dial-A
Note There is a default tone-set named default, which maps the three Swiss stan-
dard in-band tones. Create a tone-set profile only if this default profile corre-
sponds not with your country.
Tone configuration task list
To configure call progress tones, perform the tasks described in the following sections.
• Configuring call-progress-tone profiles
• Configuring tone-set profiles
• Enabling the generation of local in-band tones
• Showing call-progress-tone and tone-set profiles
Configuring call-progress-tone profiles
Each call-progress-tone consists of a sequence of different tones and pauses. Arbitrary tone cadences can be
configured. With these parameters all country specific tones can be defined. Tone configuration knows only
one command that have to be used repeatedly. The sequence in which the commands are entered (or appear in
the config file) defines the sequence in which the corresponding elements are played.

Tone configuration task list

Ring-A Busy-A
tone-set
Profile
A
Call Setup A
SIP Interface MySIP
ISDN Interface 11
Tone Play-Out Ring -B
Call Setup B

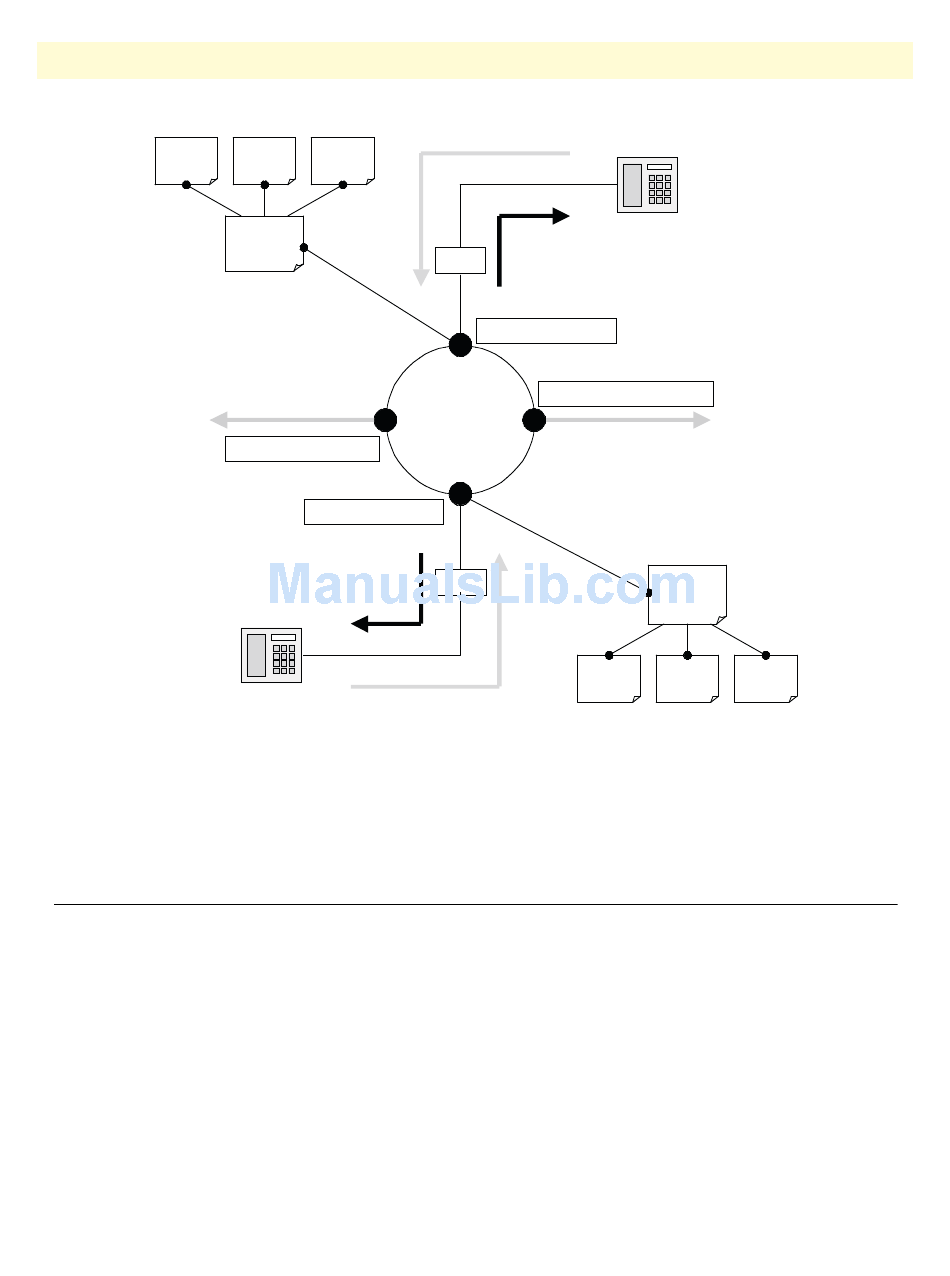

Figure 76. Assign tone-sets to a PSTN interfaces
Call Setup A
Tone Play-Out Ring -A
ISDN
ISDN Interface 10
H323 Interface MyH323
Context CS
Switch
Call Setup B
ISDN
Dial-B
