Frame Relay PVC. If serial Frame Relay PVC shall be used as WAN access, a suitable name for the logical IP
interface could be wan as in

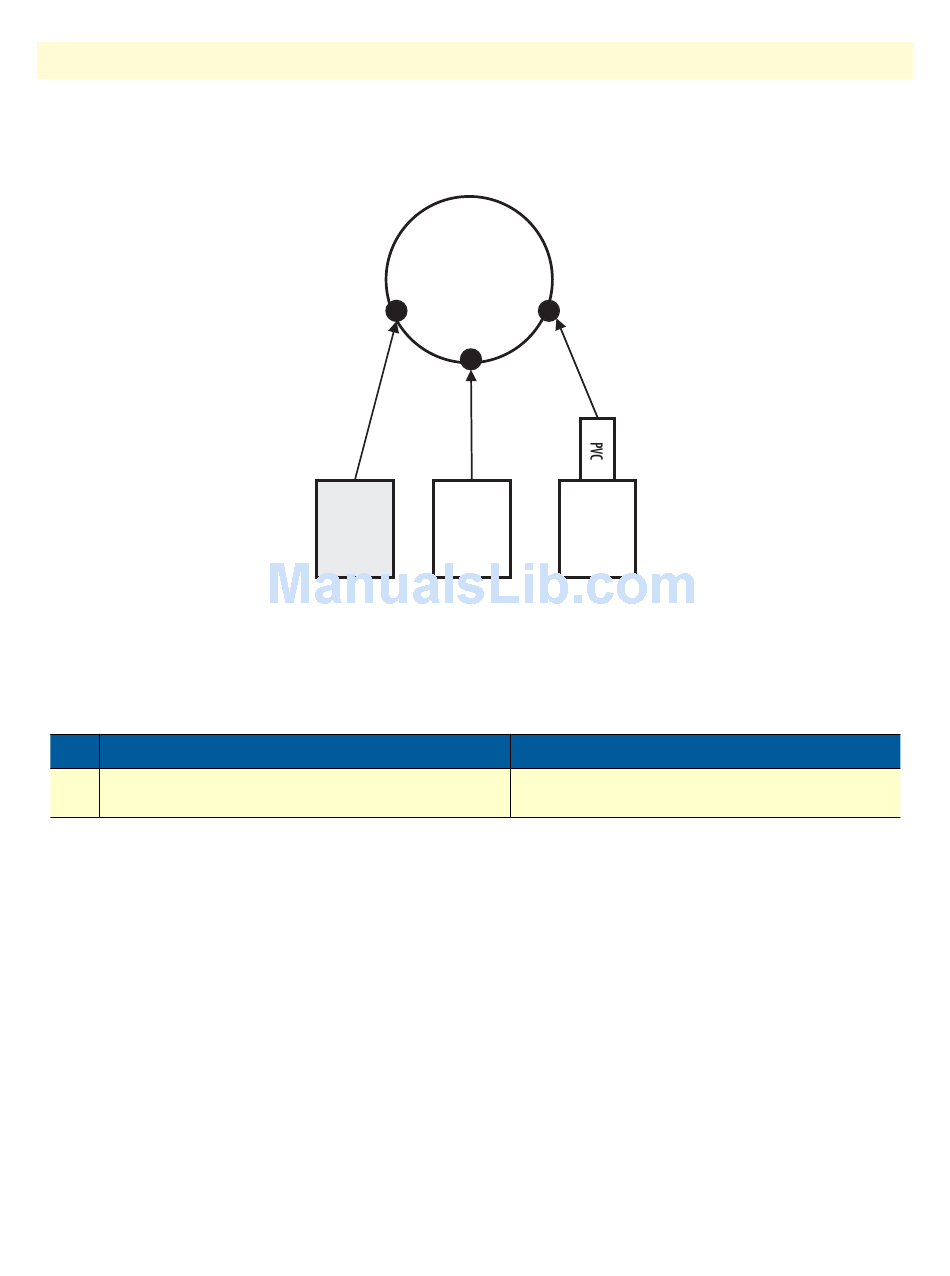

Figure 28. IP interface wan is bound to PVC 1 on port serial 0 0
This procedure describes how to bind the Frame Relay PVC DLCI on the serial interface to the logical IP
interface name, which is related to the IP context router.
Mode: PVC
Step
1 node(pvc)[dlci]#bind interface name router
Example: Binding the Frame Relay PVC to IP interface
The following example binds the Frame Relay PVC 1 to the IP interface wan of IP context router to the serial
interface on slot 0 and port 0.
node(cfg)#port serial 0 0
node(prt-ser)[0/0]#framerelay
node(frm-rel)[0/0]#pvc 1
node(pvc)[1]#bind interface wan router
Frame Relay configuration task list
figure 28 below.
IP
interface
eth0
interface
eth1
Port
Ethernet
0 0
Command
Context
IP
"router"
IP
interface
wan
IP
Port Port
Ethernet Serial
0 1 0 0
Binds Frame Relay PVC dlci to the IP interface
name of IP context router
15 • Frame Relay configuration
Purpose
181
